Component identification 16
Systems Insight Display
LED and color
Health LED System power
LED
Status
Power supply (amber) Amber Green
• Redundant power supply is installed and
only one power supply is functional.
• AC power cord is not plugged into
redundant power supply.
• Redundant power supply fault
• Power supply mismatch at POST or
power supply mismatch through hot-plug
addition.
Power cap (off) — Amber Standby
Power cap (green) — Flashing green Waiting for power
Power cap (flashing
amber)
— Amber Power cap has been exceeded.
Power cap (green) — Green Power is available.
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is
required. Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by
replacing each DIMM in a bank with a known working DIMM.

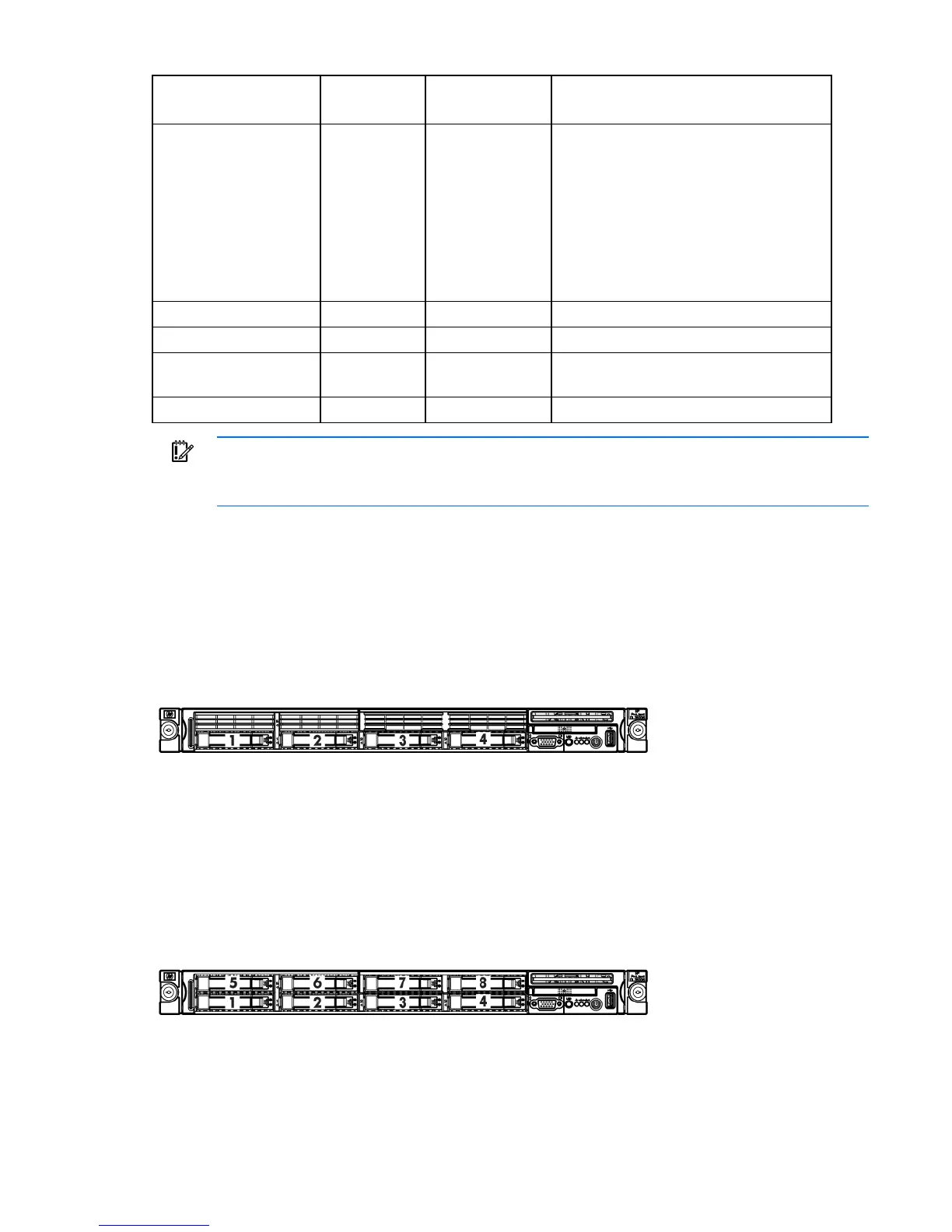

SAS and SATA device numbers
• Four hard drive configuration
• Eight hard drive configuration
