Setup 32
Item Description
3 Power supply bay 1 (populated)
4 Power supply bay 2
5 iLO 2/NIC connector
6 Serial connector
7 Video connector
8 Mouse connector
9 Keyboard connector
10 NIC 2 connector
11 NIC 1 connector
12 USB connectors (2)
*This expansion slot provides 75 W of power to an adapter, with an additional 75 W of power supplied by external
power.
3.

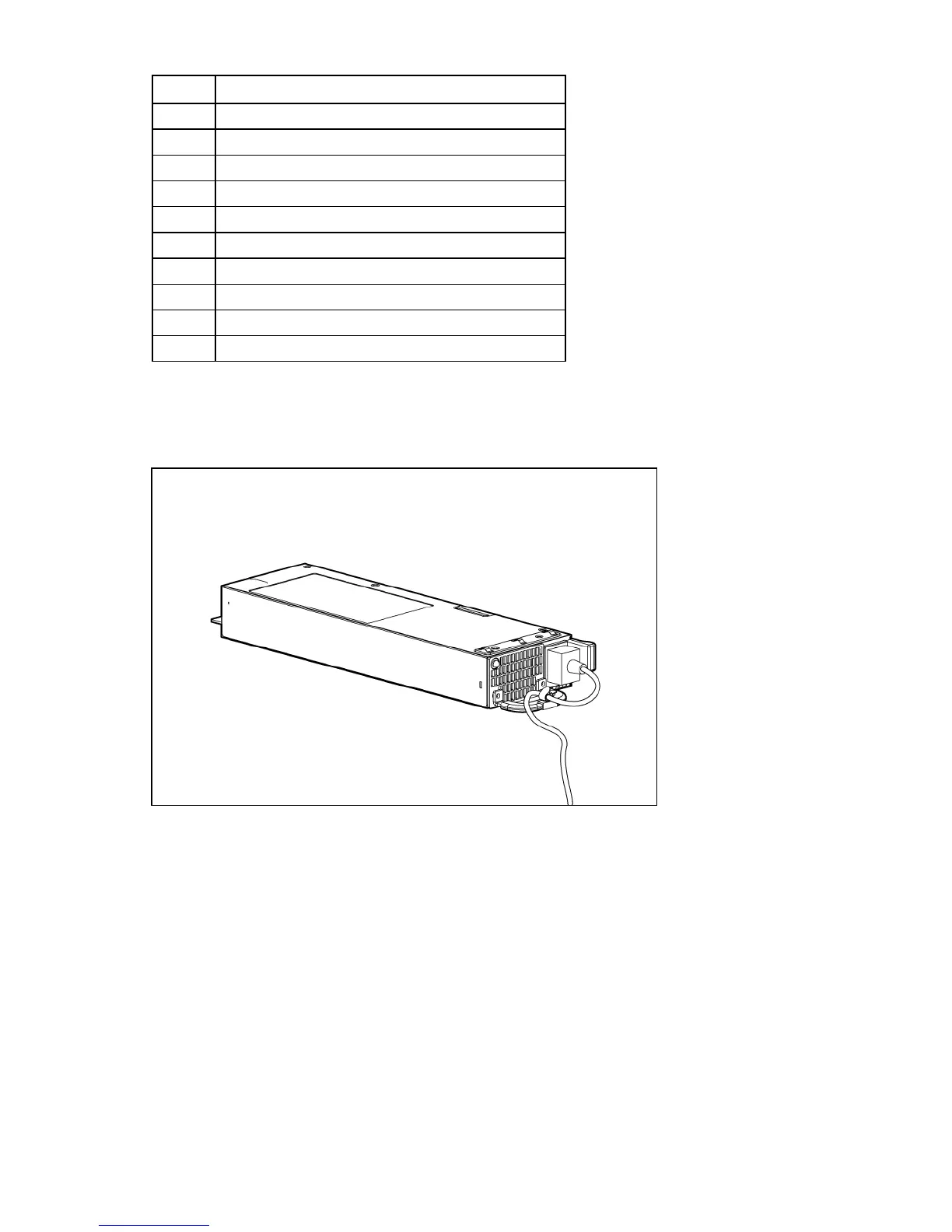

Connect the power cord to the server.
4. Use the strain relief clip from the server hardware kit to secure the power cord.
5. Connect the power cord to the AC source.
Powering up and configuring the server
To power up the server, press the Power On/Standby button.
While the server boots, RBSU and the ORCA utility are automatically configured to prepare the server for
operating system installation.
To configure these utilities manually:
• Press the F8 key when prompted during the array controller initialization to configure the array
controller using ORCA.
• Press the F9 key when prompted during the boot process to change the server settings using RBSU.
The system is set up by default for the English language.
