Operations 24
CAUTION: For proper cooling do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.

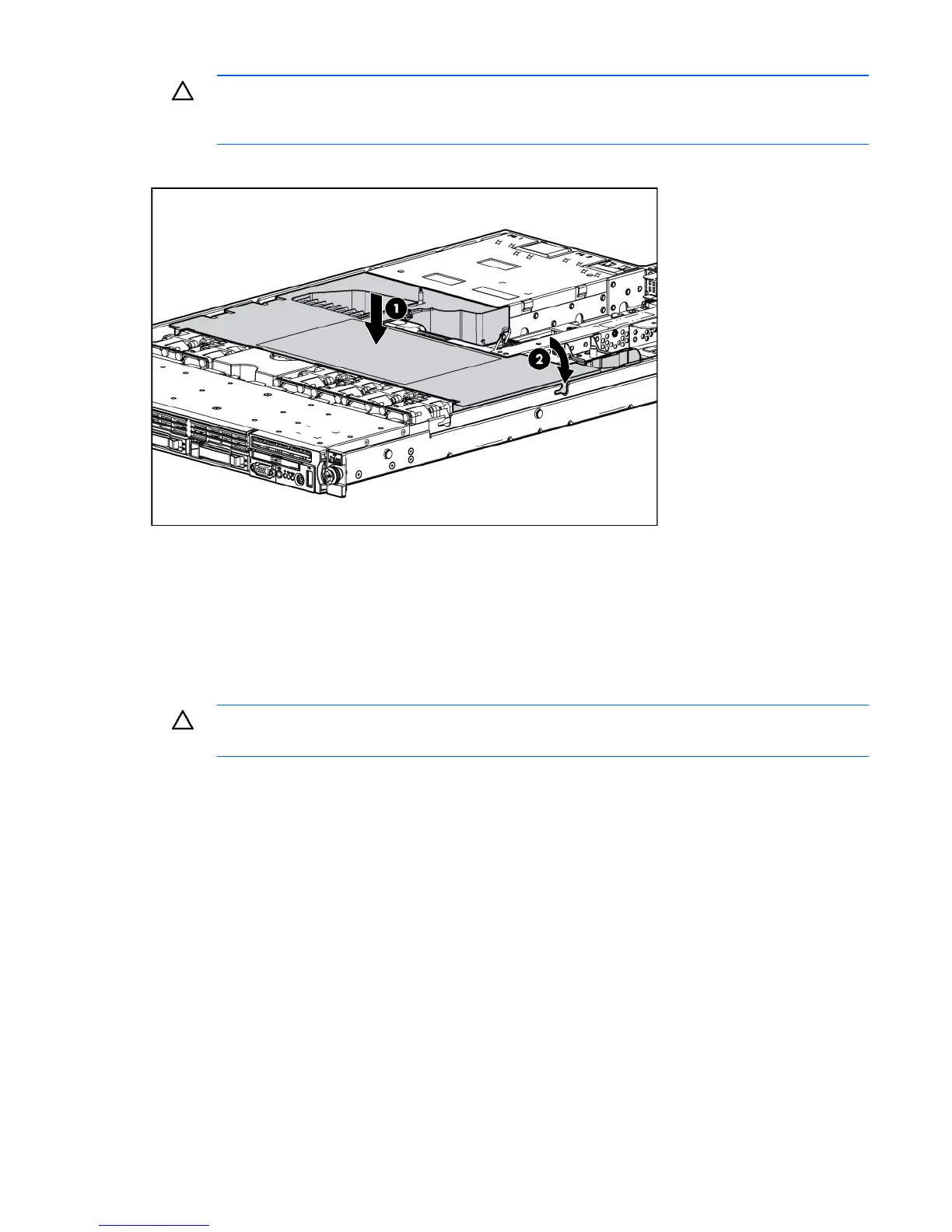

1. Install the air baffle.
2. Install the BBWC battery pack, if removed ("Installing the BBWC battery pack" on page 58).
3. Install the access panel (on page 22).
4. Slide the server into the rack.
5. Power up the server (on page 20).
Remove the PCI riser board assembly
CAUTION: To prevent damage to the server or expansion boards, power down the server and
remove all AC power cords before removing or installing the PCI riser board assembly.
1. Power down the server (on page 20).
2. Extend the server from the rack (on page 20).
3. Remove the access panel (on page 22).
4. Remove the BBWC battery pack, if installed ("Remove the BBWC battery pack" on page 22).
5. Remove the air baffle (on page 23).
6. Remove the PCI riser board assembly:
a. Disconnect external cables connected to any existing expansion boards.
b. Loosen the four PCI riser board assembly thumbscrews.
