Front I/O assembly
The front I/O assembly is attached to the front of the chassis with one screw. Push the assembly into the
chassis to remove.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel (Front bezel on page 20).
4. Rotate the drive cage to its upright position.

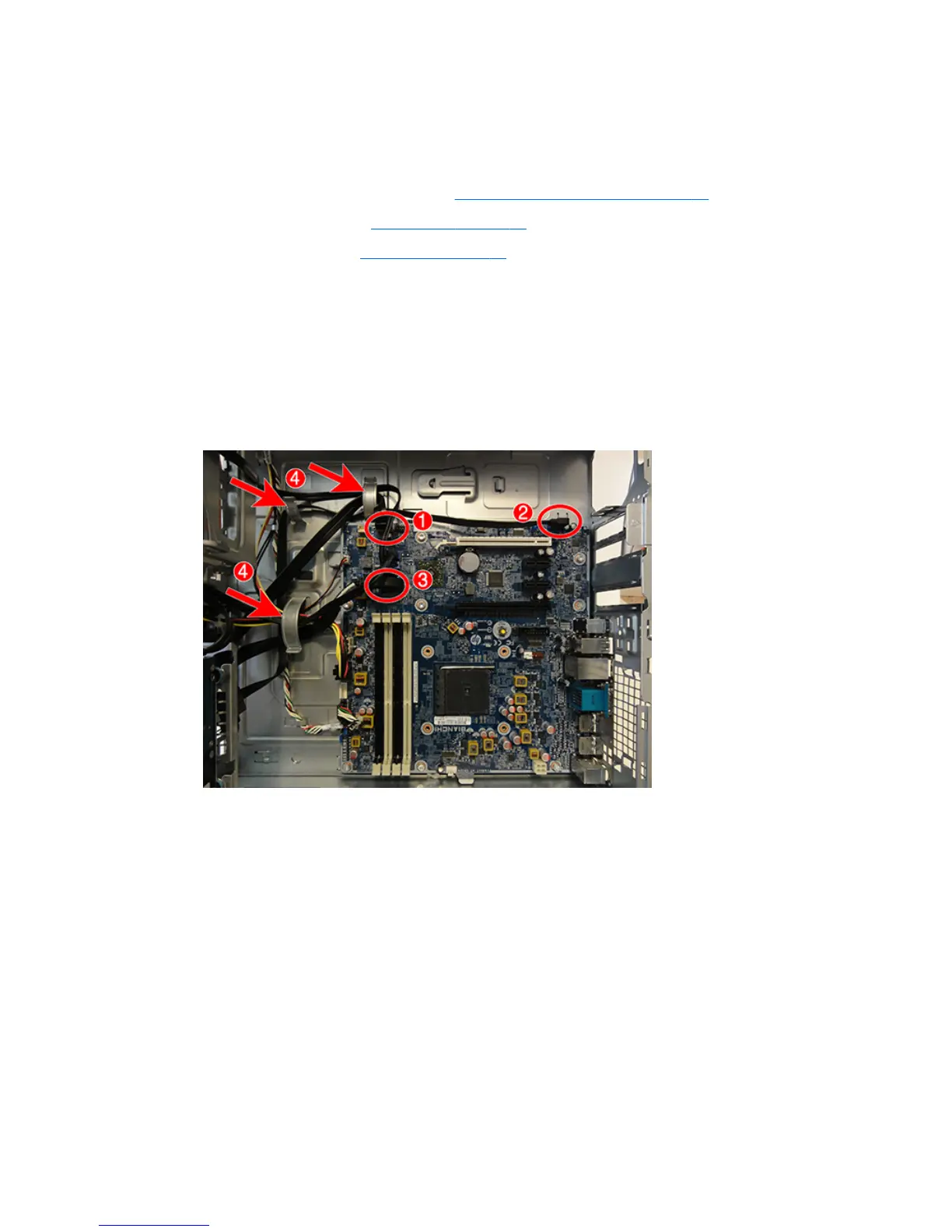

5. Disconnect the cables from the system board as follows:
(1) Yellow connector labeled FRONT_USB
(2) Blue connector labeled FRONT AUD
(3) Blue connector labeled FRONT_USB3.0
6. Remove the cables from the three clips built into the basepan (4).
7. Remove the Torx T15 screw (1) that secures the assembly to the front of the chassis.
