Where used:
2 screws th
at secure the vid
eo board to the
system board

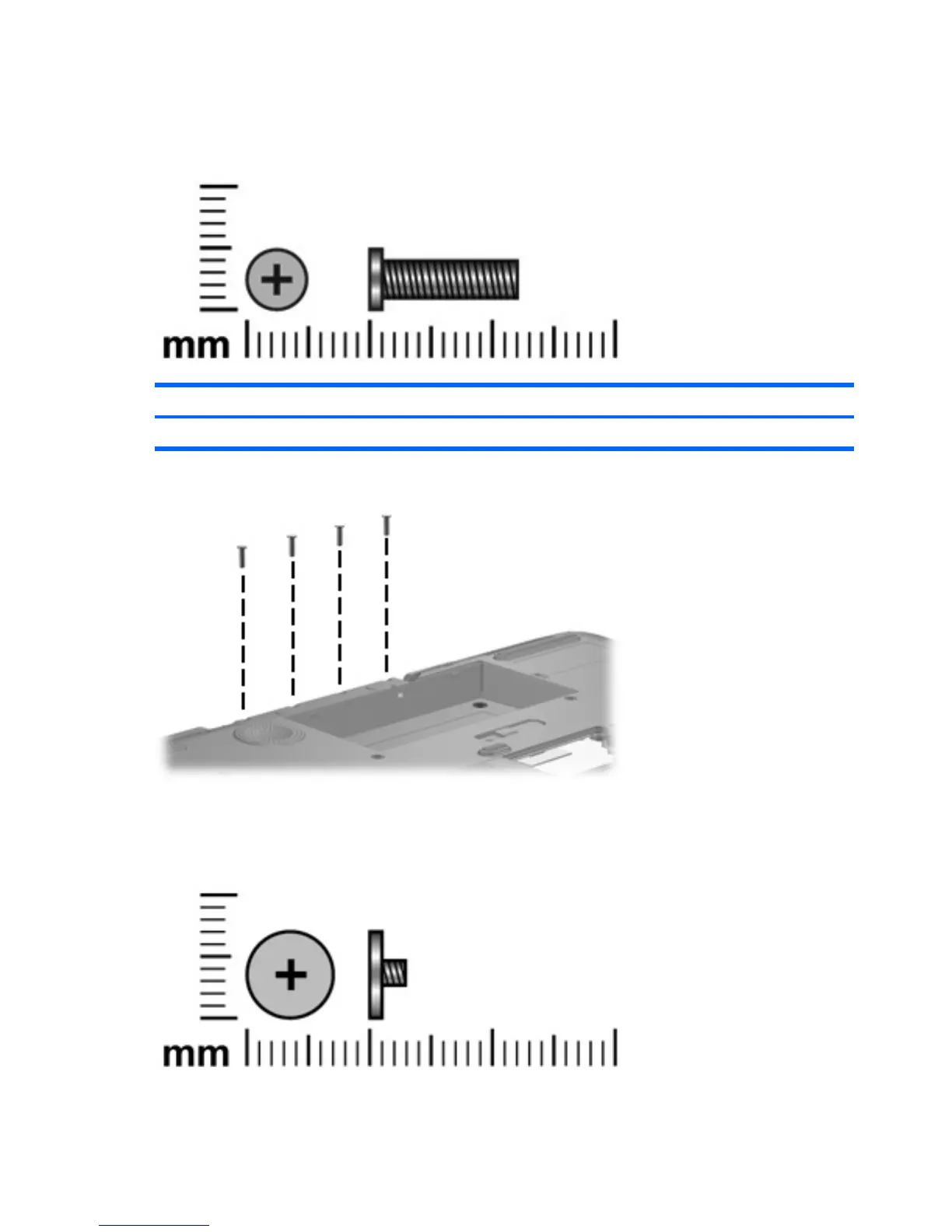

Phillips PM3.0×12.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
4
12.0 mm
3.0 mm
5.0 mm
Where used:
4 screws th
at secure the
rear cover to the computer
Phillips 2.5×3.0 broad-head screw
108
Chapter
7
Screw listing
114
116
Table of Contents
Default Chapter
4
Table of Contents
4
1 Product Description
8
2 External Component Identification
13
Top Components
13
Display and Top Components
13
Top-Left Buttons and Lights
14
Top-Right Buttons, Lights, and Fingerprint Reader
15
Touchpad
16
Keys
17
Front Components
18
Rear Components
18
Rear Left-Side Components
18
Rear Right-Side Components
19
Right-Side Components
20
Left-Side Components
20
Bottom Components
21
3 Illustrated Parts Catalog
23
Serial Number Location
23
Computer Major Components
24
Display Assembly Components
29
Plastics Kit
30
Mass Storage Devices
31
Miscellaneous Parts
31
Sequential Part Number Listing
33
4 Removal and Replacement Procedures
38
Preliminary Replacement Requirements
38
Tools Required
38
Service Considerations
38
Cables and Connectors
38
Plastic Parts
38
Drive Handling
39
Grounding Guidelines
39
Electrostatic Discharge Damage
39
Packaging and Transporting Guidelines
40
Workstation Guidelines
40
Equipment Guidelines
41
Unknown User Password
41
Component Replacement Procedures
42
Serial Number
42
Battery
43
Computer Feet
43
Display Assembly Internal Components
44
Hard Drive
49
WLAN Module
51
TV Tuner Module
53
Memory Module
54
Optical Drive
56
Keyboard
57
Hinge Cover
59
Rear Cover
60
Top Cover
62
Fingerprint Reader Board
64
Touchpad On/Off Board
65
Display Assembly
67
Audio/Infrared Board
69
Bluetooth Module
70
Front USB Board
71
Power Connector LED Board
72
Rear USB Board
73
Subwoofer
74
Video Connector Board
75
Processor Fan
76
System Board
77
Rear Cover
78
Top Cover
78
Disconnect All External Devices Connected to the Computer
78
Remove the Following Components
78
Hard Drive
78
Optical Drive
78
Hinge Cover
78
Audio Connector Board
80
Description Spare Part Number
80
RTC Battery
81
Processor Heat Sink
82
Shut down the Computer. if You Are Unsure Whether the Computer Is off or in Hibernation, Turn the Computer On, and then Shut It down through the Operating System
83
Processor
84
Video Board Heat Sink
86
Video Board Fan
88
Video Board
89
5 Computer Setup
91
Starting Computer Setup
91
Using Computer Setup
91
Changing the Language of Computer Setup
91
Navigating and Selecting in Computer Setup
91
Displaying System Information
92
Restoring Default Settings in Computer Setup
92
Closing Computer Setup
92
Computer Setup Menus
92
File Menu
93
Security Menu
93
Diagnostics Menu
93
System Configuration Menu
93
6 Specifications
94
Computer Specifications
94
20.1-Inch, WUXGA Display Specifications
95
Inch WSXGA+ Display Specifications
95
Hard Drive Specifications
96
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive Specifications
96
HD-DVD Combo Drive
97
System DMA Specifications
98
System Interrupt Specifications
99
System I/O Address Specifications
100
System Memory Map Specifications
101
7 Screw Listing
103
Phillips PM2.5×5.0 Screw
103
Black Phillips PM2.0×5.0 Captive Screw
107
Phillips PM2.5×12.0 Captive Screw
108
Phillips PM3.0×4.0 Screw
109
Phillips PM2.5×8.0 Screw
110
Phillips PM2.0×3.0 Screw
112
Phillips PM3.0×8.0 Screw
112
Phillips PM2.5×4.0 Screw
114
Phillips PM3.0×12.0 Screw
115
Phillips 2.5×3.0 Broad-Head Screw
115
Phillips PM2.5×11.0 Screw
116
Silver Phillips PM2.0×4.0 Screw
117
Slotted SM1.5×9.0 Shoulder Screw
118
Phillips PM2.5×13.0 Captive Screw
119
Silver Phillips PM2.0×5.0 Captive Screw
119
Phillips PM2.5×8.0 Captive Screw
120
Black Phillips PM2.0×4.0 Screw
121
8 Backup and Recovery
122
Recovering System Information
122
Recovering System Information
123
Creating Recovery Discs
123
Backing up Your Information
124
Backup Suggestions
124
When to Back up
124
Using System Restore Points
124
Create a System Restore Point
125
Restore to a Previous Date and Time
125
When to Create Restore Points
125
Performing a Recovery
125
Recovering from the Partition on the Hard Drive
126
Recovering from the Recovery Discs
126
9 Connector Pin Assignments
126
Audio-Out (Headphone)
127
Audio-In (Microphone)
127
External Monitor
127
RJ-45 (Network)
127
Network)
128
Universal Serial Bus
129
10 Power Cord Set Requirements
129
Requirements for Specific Countries or Regions
129
Requirements for All Countries or Regions
130
Recycling Battery
131
Display
132
Index
138
