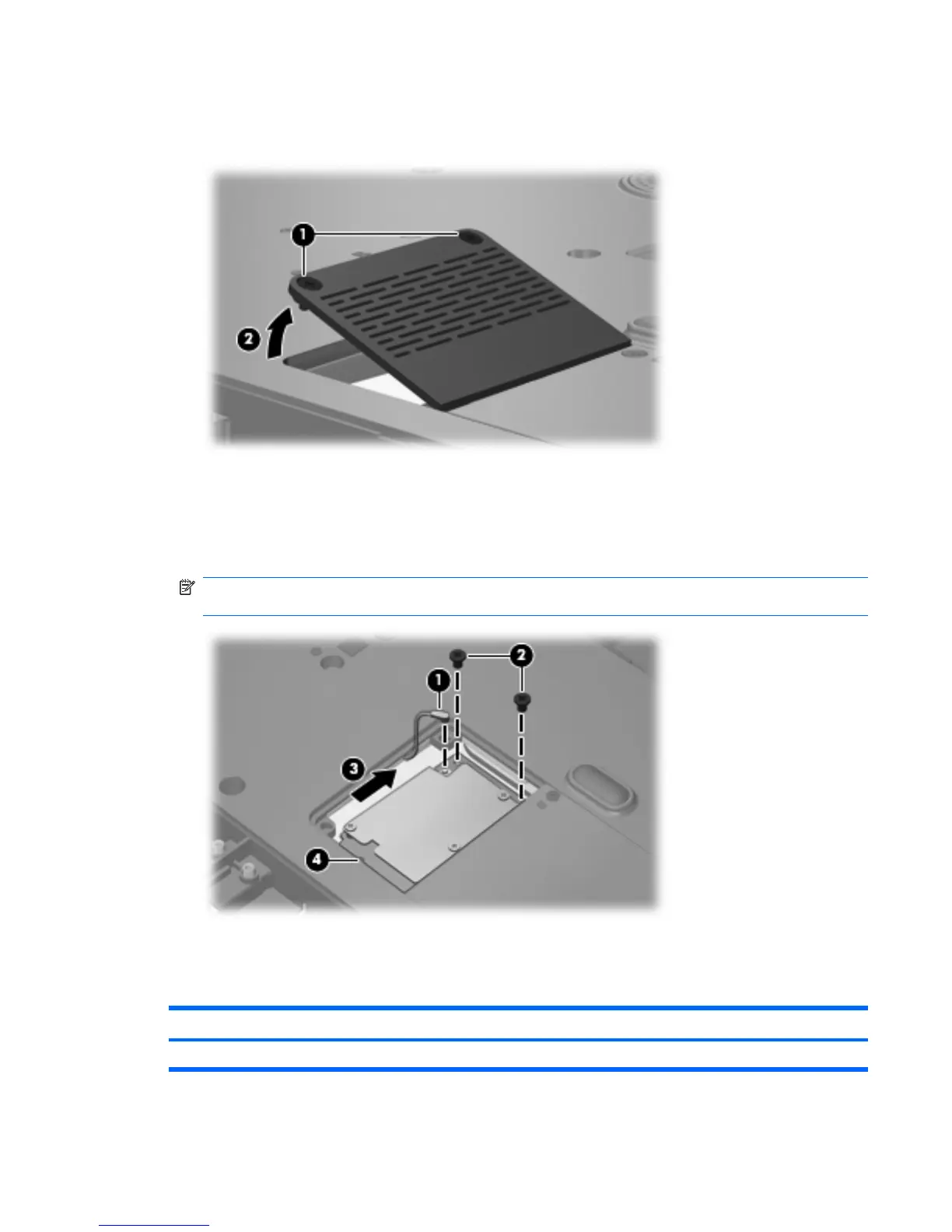

3. Lift the left side of the TV tuner module compartment cover (2), swing the cover up and to the right,
and remove the cover. The TV tuner module compartment cover is included in the Plastics Kit, spare
part number 448171-001.
4. Disconnect the TV tuner cable (1) from the TV tuner module.
5. Remove the two Phillips PM2.5×5.0 screws (2) that secure the TV tuner module to the system board.
(The edge of the module opposite the slot rises away from the computer.)
6. Remove the TV tuner module (3) by pulling it away from the slot at an angle.
NOTE: The TV tuner module is designed with a notch (4) to prevent incorrect installation into the
TV tuner module slot.
Reverse this procedure to install the TV tuner module.
Memory module
Description Spare part number
2048-MB (667-MHz, PC2-5300, 1-DIMM) 448151-001
Component replacement procedures 47
