Display assembly internal components
NOTE: If it has been determined that the display bezel, camera module, display inverter, display panel,
or speakers are the components that must be replaced to complete the computer repair, the display
assembly does not have to be completely removed from the computer. Replacement of these components
can be completed by removing only the display bezel. Follow the procedures in this section to replace
the display bezel, camera module, display inverter, display panel, or speakers. For information on
replacing the entire display assembly, see
Display assembly on page 60.
Before removing the display bezel, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 36).
Remove the display bezel:
1.
Turn the computer display-side up, with the rear panel toward you.
2.
Open the computer as far as possible.

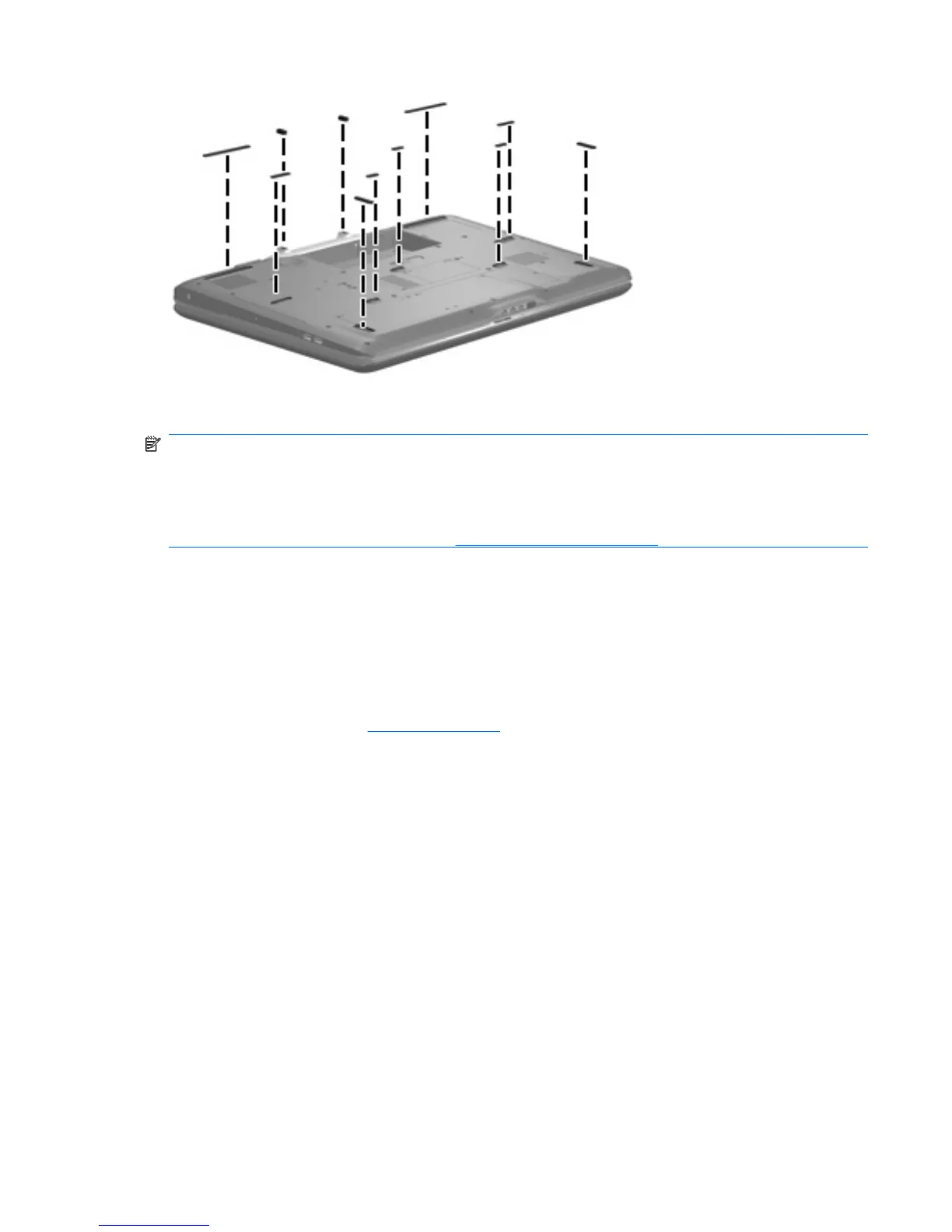

3. Remove the two rubber screw covers from the back of the display assembly (1). All rubber screw
covers and logo labels removed in this section are included in the Display Rubber Pad Kit, spare part
number 454595-001.
Component replacement procedures 37
