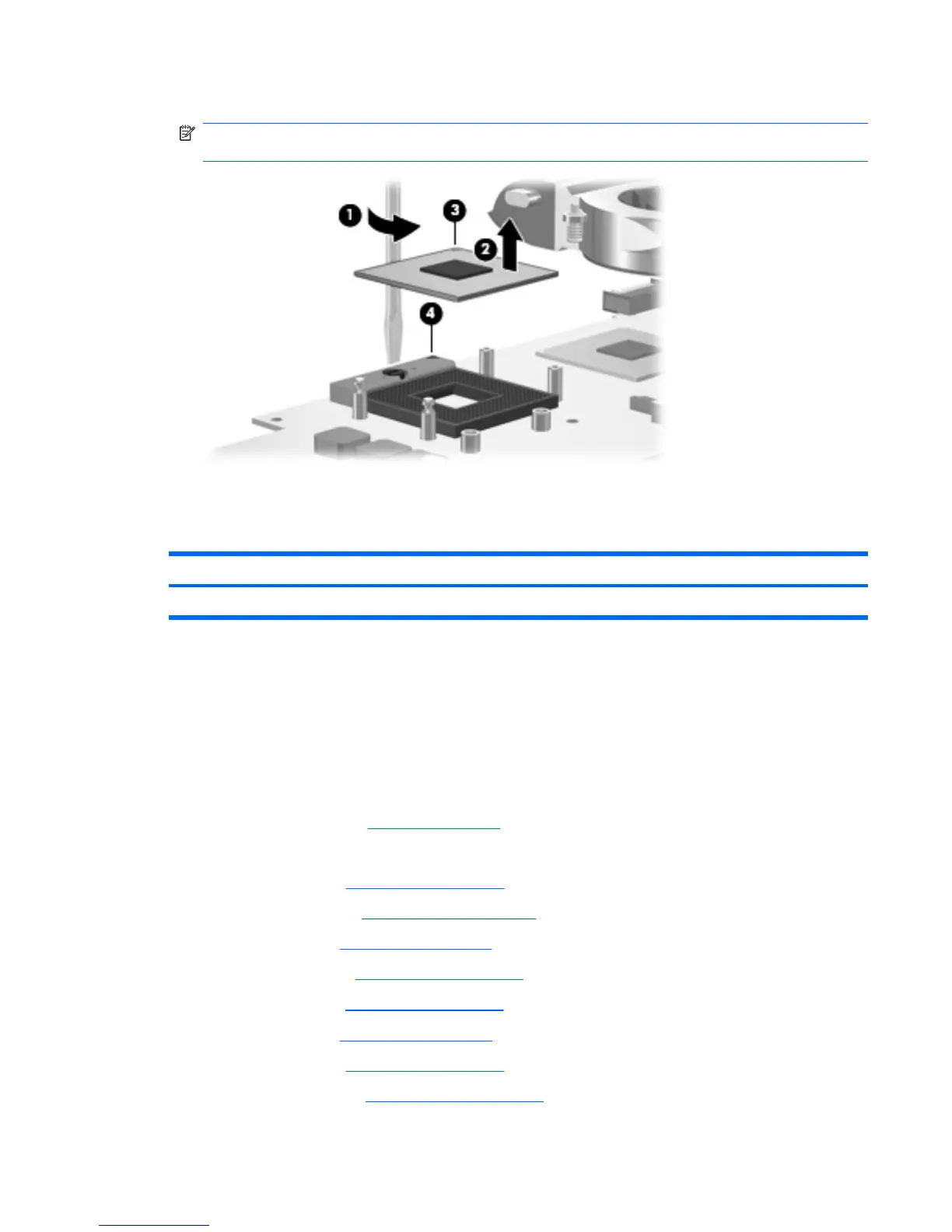

2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed
on the processor slot when you install the processor.
Reverse this procedure to install the processor.
Video board heat sink
Description Spare part number
Video board heat sink (includes replacement thermal material) 448176-001
Before removing the video board heat sink, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 36).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 42)
b.
Optical drive (see
Optical drive on page 49)
c.
Keyboard (see
Keyboard on page 50)
d.
Hinge cover (see
Hinge cover on page 52)
e.
Rear cover (see
Rear cover on page 53)
f.
Top cover (see
Top cover on page 55)
g.
Subwoofer (see
Subwoofer on page 67)
h.
System board (see
System board on page 70)
Component replacement procedures 79
