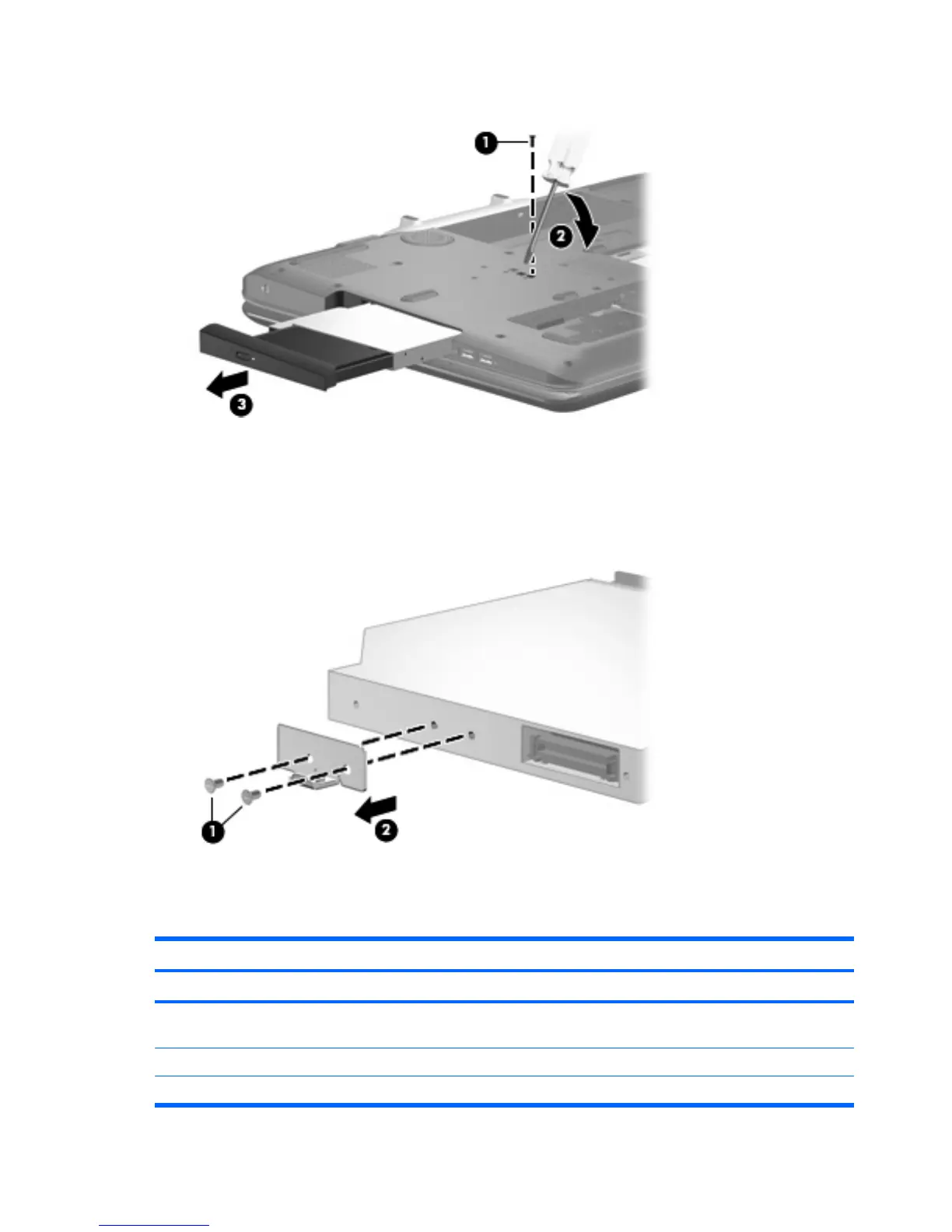

4. Remove the optical drive (3).
5.
If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive
bracket toward you.
6. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
7. Remove the optical drive bracket (2).
Reverse the above procedure to reassemble and install the optical drive.
Keyboard
Description
For use in:
Spare part number For use in: Spare part number
Denmark, Finland, Norway, and
Sweden
448159-DH1 South Korea 448159-AD1
Europe 448159-021 Spain 448159-071
France 448159-051 Switzerland 448159-111
50 Chapter 4 Removal and replacement procedures
