Static Virtual LANs (VLANs)
Configuring VLANs
Status:
Port-Based: Port-Based, static VLAN
Protocol: Protocol-Based, static VLAN
Dynamic: Port-Based, temporary VLAN learned through
GVRP (Refer to
chapter 3, “GVRP” .)
Voice: Indicates whether a (port-based) VLAN is configured as
a voice VLAN. Refer to
“Voice VLANs” on page 2-49.
Jumbo: Indicates whether a VLAN is configured for Jumbo
packets. For more on jumbos, refer to the chapter titled “Port
Traffic Controls” in the Management and Configuration Guide
for your switch.
For example:
When GVRP is disabled
(the default), Dynamic
VLANs do not exist on the
switch and do not appear
in this listing. (Refer to
chapter 3, “GVRP” .)

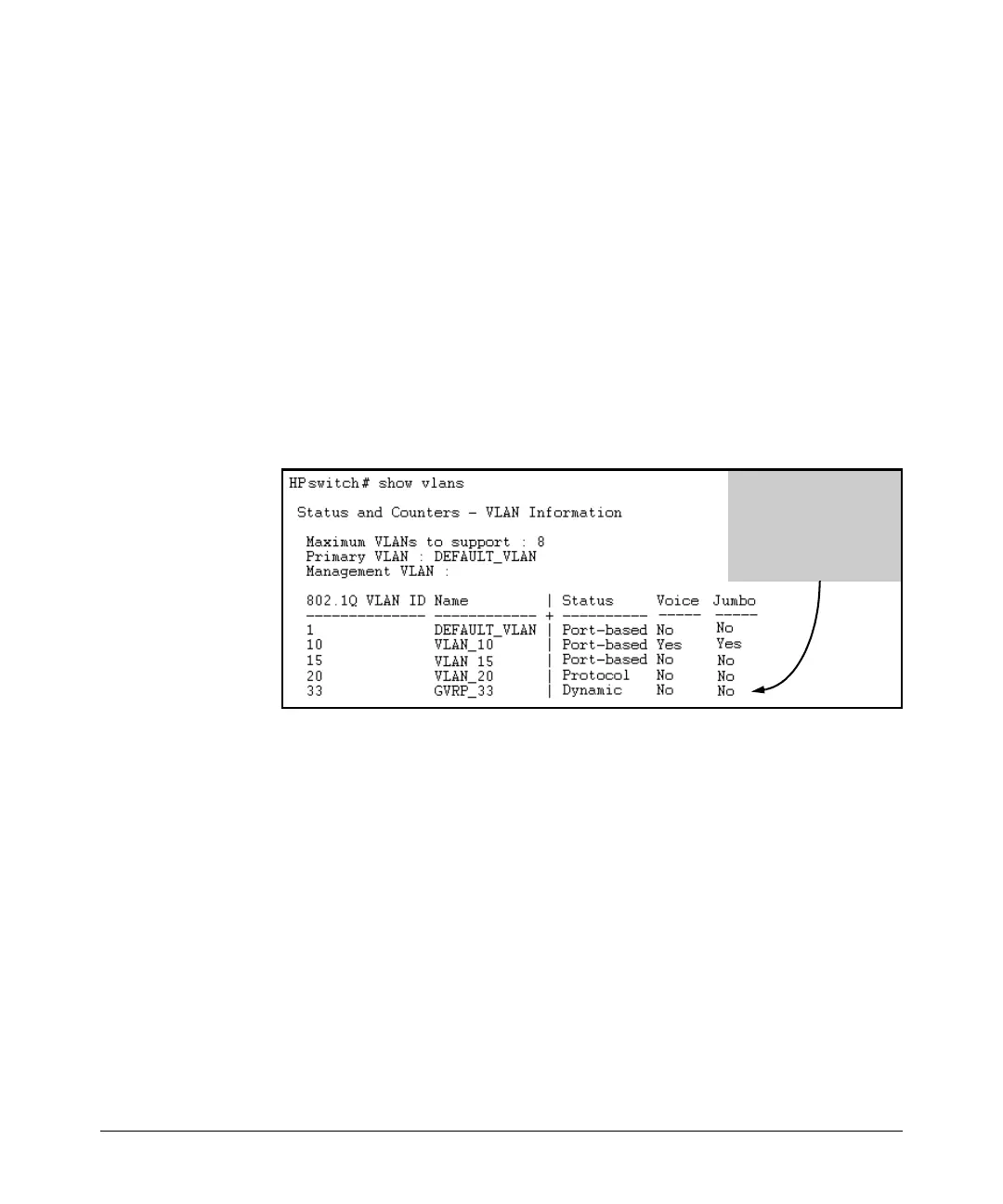

Figure 2-18. Example of “Show VLAN” Listing (GVRP Enabled)
Displaying the Configuration for a Particular VLAN . This command
uses the VID to identify and display the data for a specific static or dynamic
VLAN.
Syntax: show vlans < vlan-id >
802.1Q VLAN ID: The VLAN identification number, or VID. Refer
to
“Terminology” on page 2-5.
Name: The default or specified name assigned to the VLAN. For
a static VLAN, the default name consists of VLAN-x where “x”
matches the VID assigned to that VLAN. For a dynamic VLAN,
the name consists of GVRP_x where “x” matches the applicable
VID.
