HP ProCurve 408 User Manual

B-3
Cables and Connectors
Twisted-Pair Cable/Connector Pin-Outs

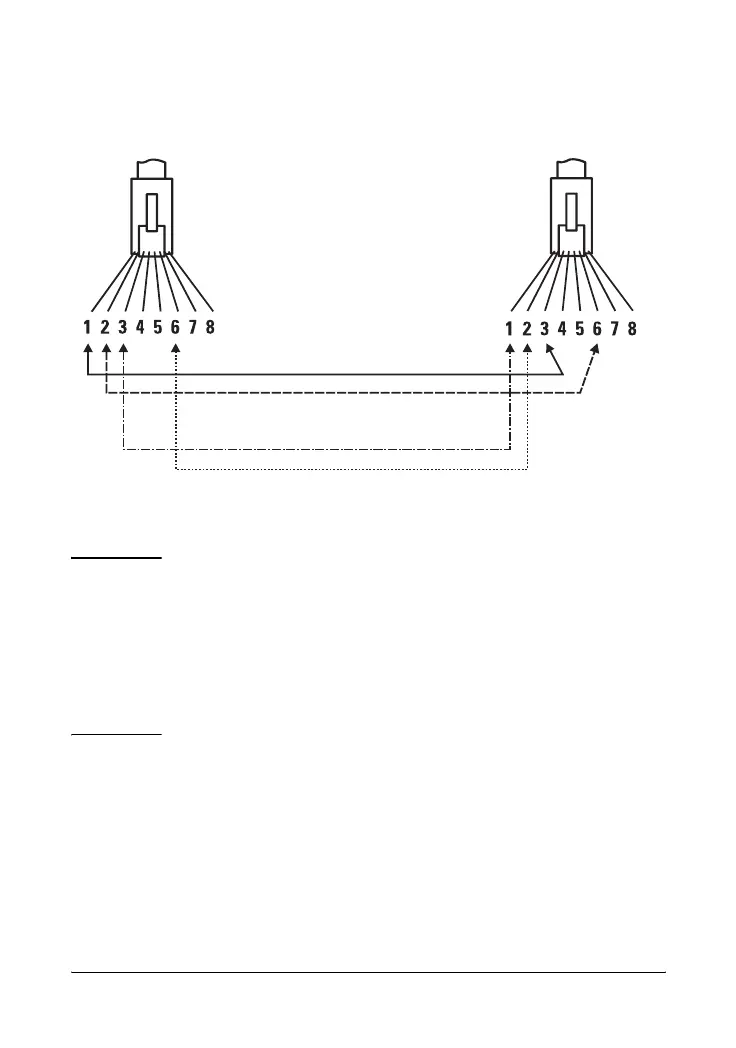

Crossover Twisted-Pair Cable
Note
Pins 1 and 2 on connector “A” must be wired as a twisted
pair to pins 3 and 6 on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted
pair to pins 1 and 2 on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although
they may be wired in the cable.
Crossover Cable
white/orange
orange/white
white/green
green/white
Connector “A”
Connector “B”
