Hardware options installation 63
10.

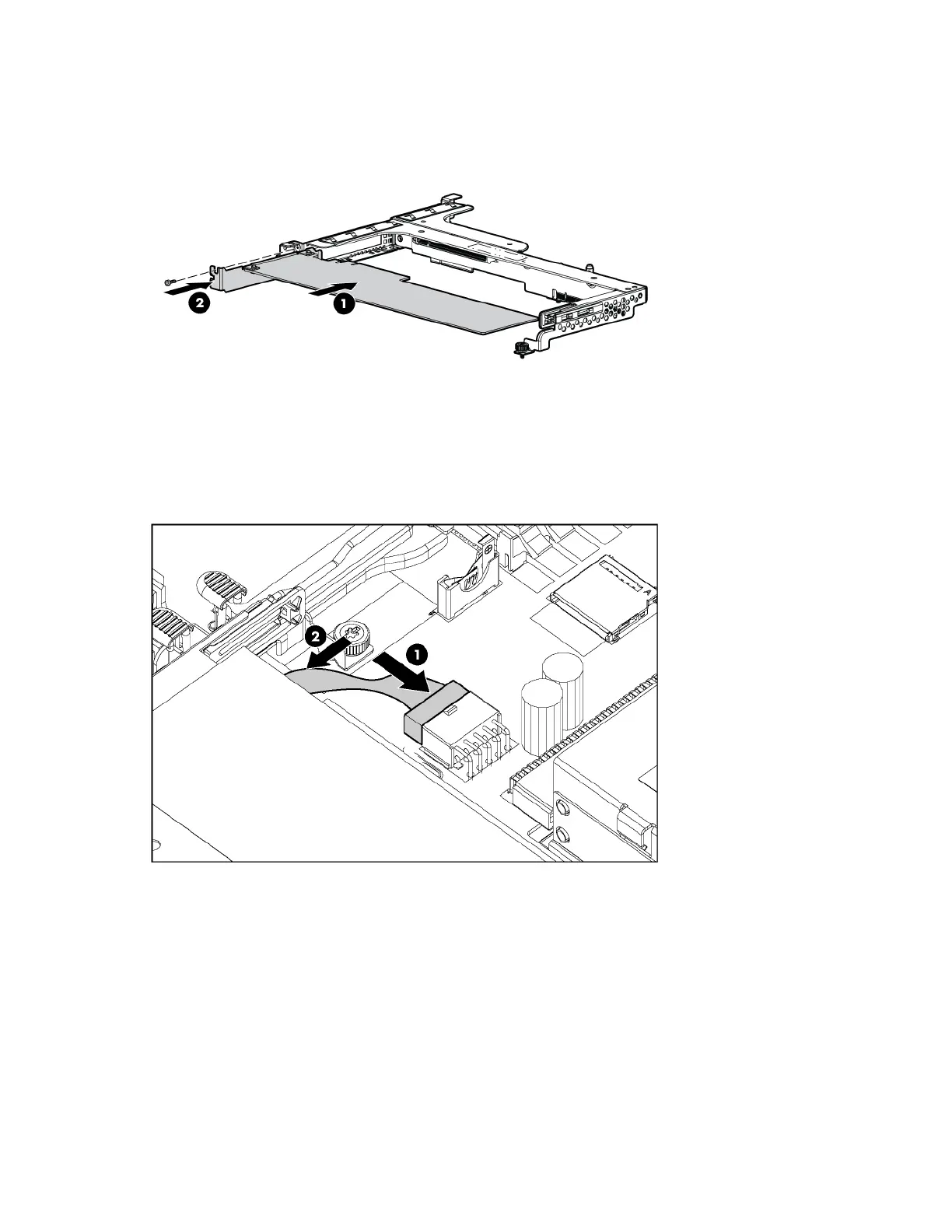

Install the graphics adapter in slot 2 on the PCI riser board assembly.
11. Install the PCI riser board assembly (on page 24).
12. Connect the PCI power cable to the connector on the 150W graphics adapter and the system
board.
13. Install the air baffle (on page 22).
14. If removed, install the BBWC battery pack or the FBWC capacitor pack ("Installing the BBWC
battery pack or the FBWC capacitor pack" on page 58).
15. Install the access panel (on page 21).
16. Slide the server into the rack.
17. Power up the server (on page 19).
Redundant hot-plug power supply option
