Component identification 7
Component identification

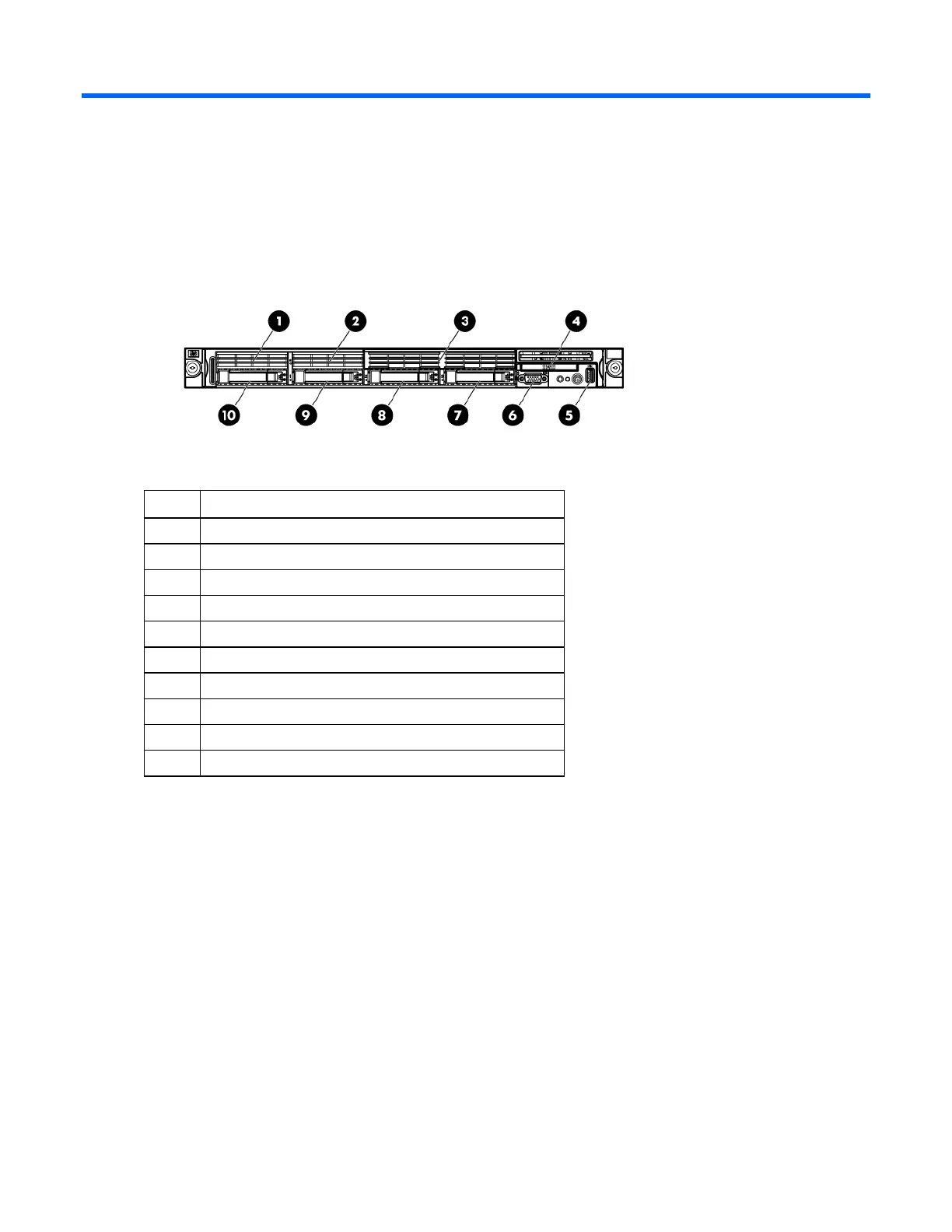

Front panel components
Item Description
1 Hard drive bay 5 (optional)*
2 Hard drive bay 6 (optional)*
3 DVD tray/hard drive bays 7 and 8 (optional)*
4 HP Systems Insight Display
5 Front USB connector
6 Video connector
7 Hard drive bay 4
8 Hard drive bay 3
9 Hard drive bay 2
10 Hard drive bay 1
*An optional hard drive backplane is required when the server is configured with eight hard drives.
