Operations 29
Remove a fan blank
1. Power down the server (on page 24).
2. Do one of the following:
o Open or remove the tower bezel, as needed ("Open or remove the tower bezel" on page 25).
o Extend the server from the rack (on page 24).
3. Remove the access panel (on page 26).
4. Remove the large redundant fan air baffle, if installed ("Remove the large redundant fan air baffle" on
page 27).

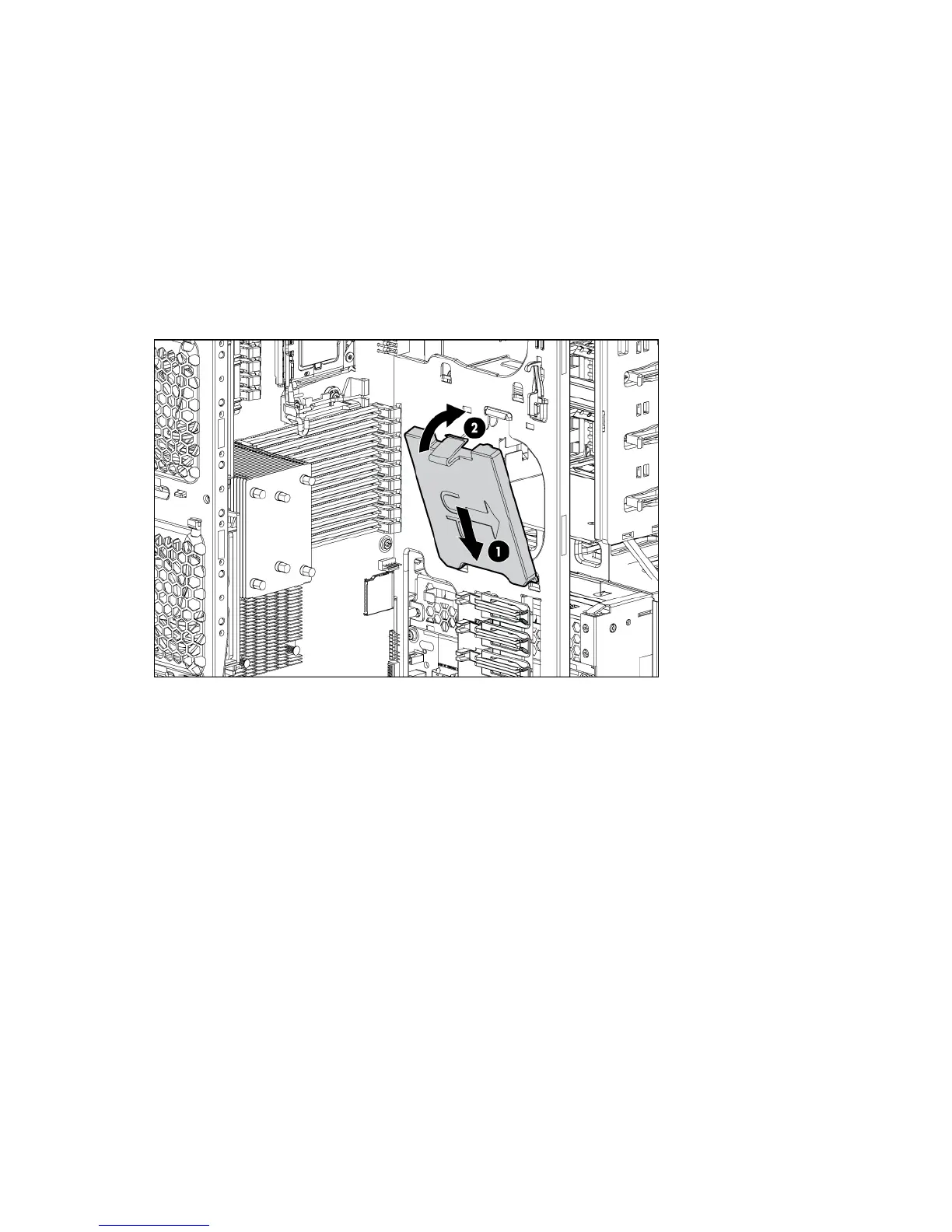

5. Remove the fan blank.
