Hardware options installation 54
3.

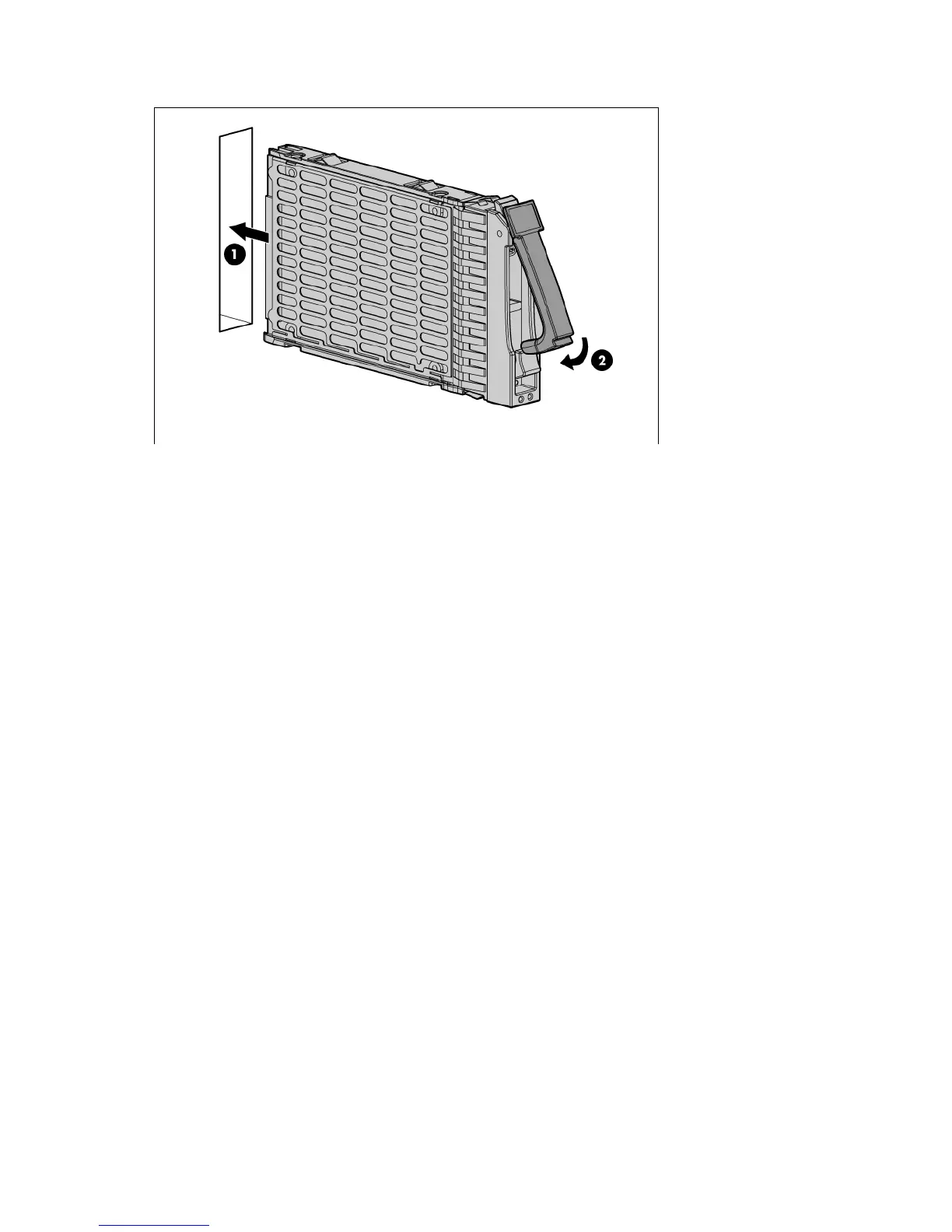

Install the hard drive.
4. Determine the status of the drive by observing the drive LEDs ("SAS and SATA hard drive LEDs" on page
16).
5. Resume normal server operations.
Hard drive cage options
HP does not support mixing SFF and LFF optional hard drive expansion cages.
Installing a hard drive expansion cage power cable
1. Power down the server (on page 24).
2. Do one of the following:
o Open or remove the tower bezel, as needed ("Open or remove the tower bezel" on page 25).
o Extend the server from the rack (on page 24).
3. Remove the access panel (on page 26).
4. Disconnect all cables connected to the system board ("System board components" on page 11).
