Racking the Modem Distribution Panel HP J2085 #101
4
Rear Mounting MDP Units

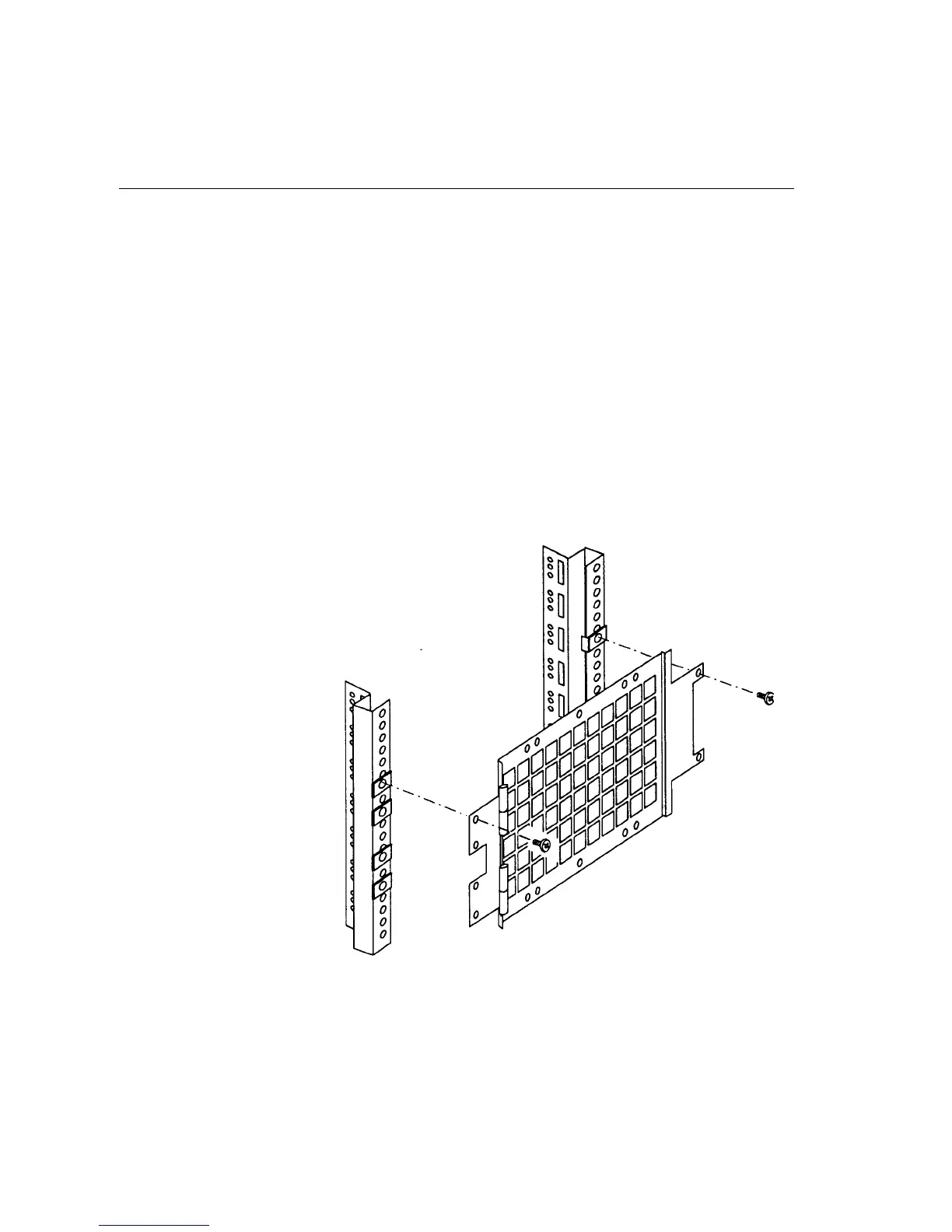

A mounting bracket is available for rear mounting MDPs in an HP system
rack. This is product HP C2792A. The mounting bracket and hinge attach to
the rear columns of the rack, occupying 6EIA units. Depending upon which
rear column the hinge is fixed to, it can be installed to swing open to the left
or to the right.
The mounting bracket can accommodate up to five MDP units (three on the
inner side and two on the outer side of the bracket).
1 Determine the position in the rack for the mounting kit to be installed.
Install the mounting kit as low as possible in the rack.
2 Fix the six tinnerman nuts onto the rear columns of the rack. Use the
mounting hinge and mounting bracket as a template to determine which
holes to use.
