Protocol Analyzer connection
7
Protocol Analyzer connection

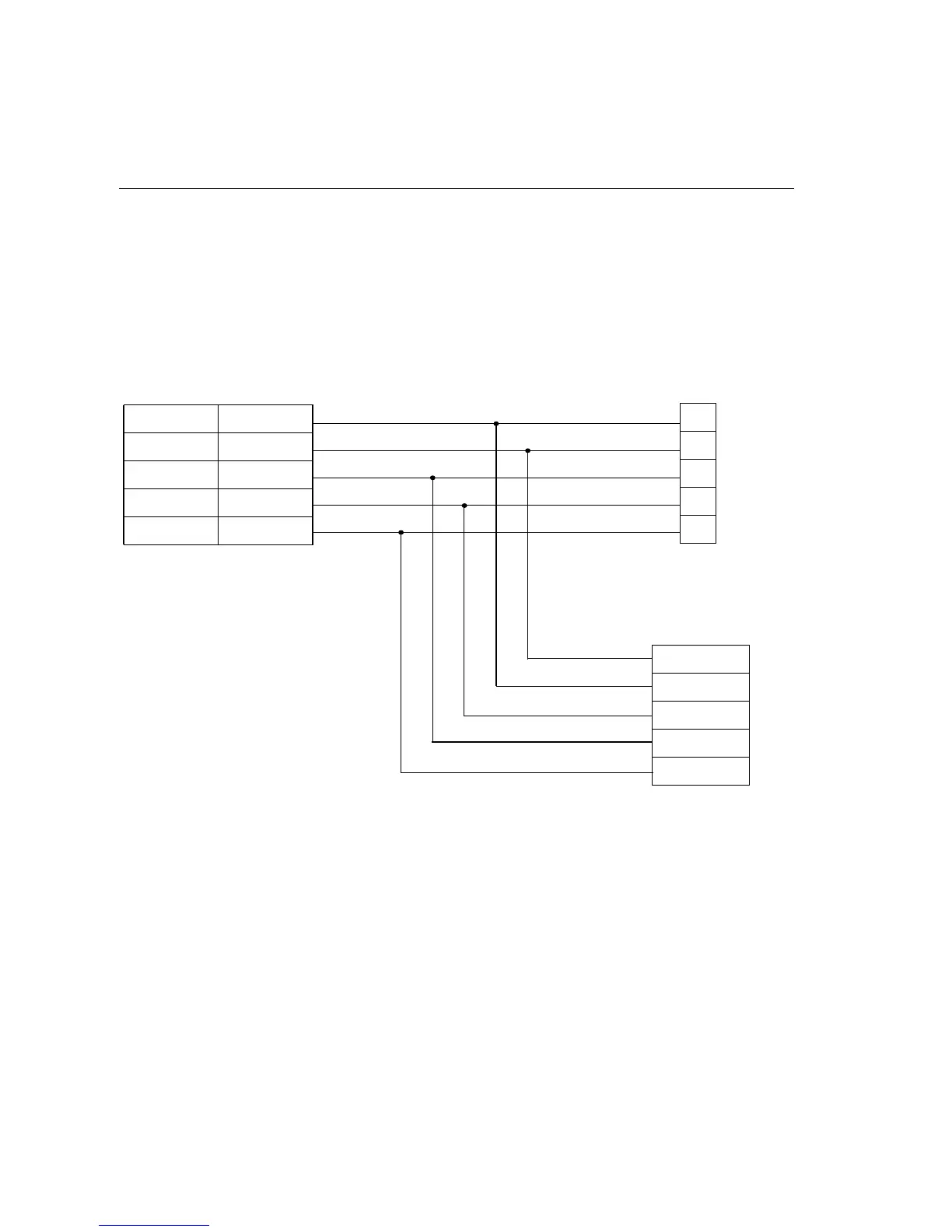

RS-232 POD connection
This cable is placed between the DDP RJ45 port and the device.
RJ 45 male connector to DTC
1 - RD INPUT
3 - TD OUTPUT
4 - CTS INPUT
5 - RTS OUTPUT
6 - SGND -
RS-232 POD
DB25 connector
2 - DTC TX
3 - DTC RX
4 - RTS
5 - CTS
7 - GND
1
3
4
5
6
RJ45 female
connector
RJ45 extension
cable
