DTC to Distribution Panel Cables
6
DTC to Distribution Panel Cables

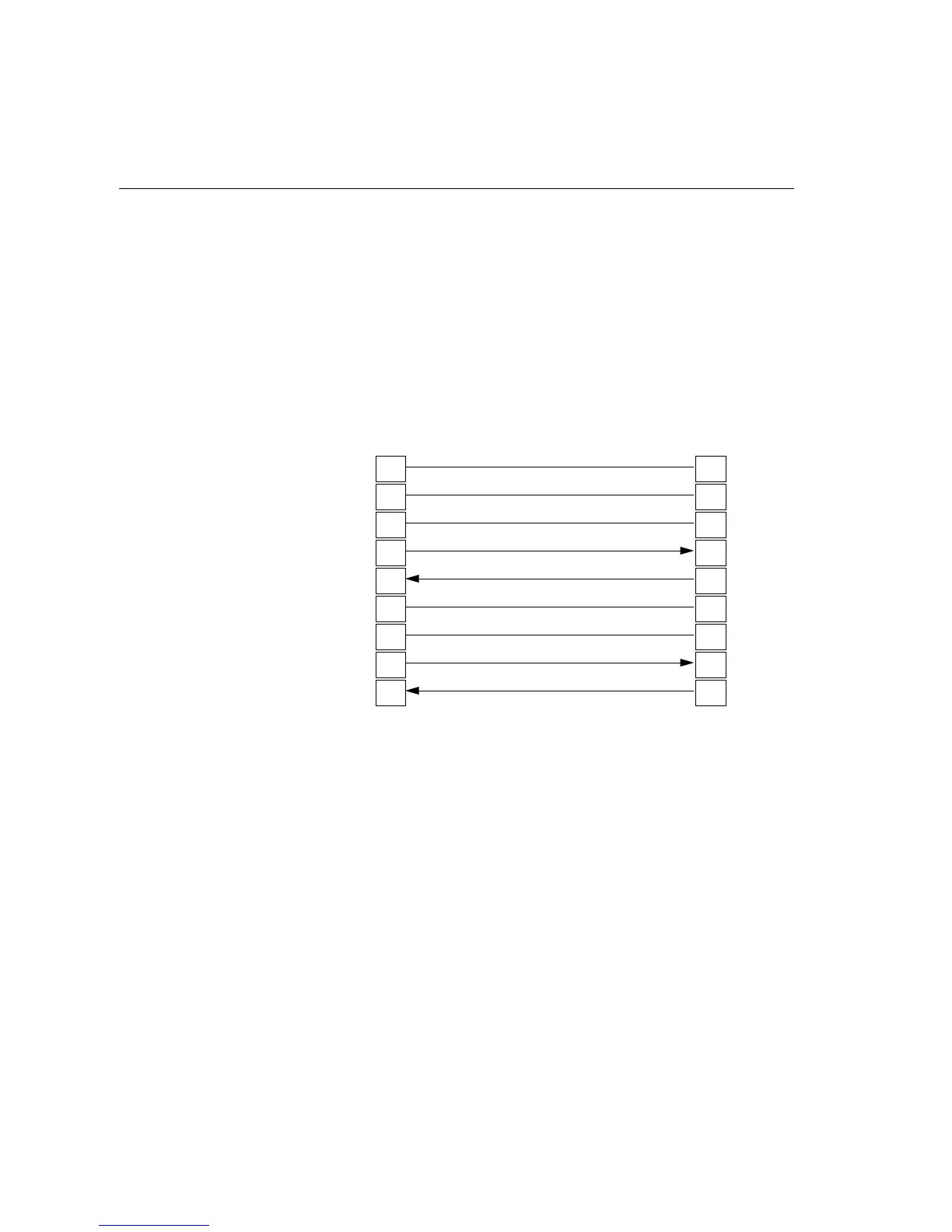

DTC to MDP cable pin out
The MDP is connected to the DTC via a multiplexed serial link. The four link wires
make an RS-422 two-way balanced high-speed link.
The twisted pairs are: 2/3, 4/8, 5/9, and 6/7. The maximum length for the cable is
two meters.
1
2
22
19
21
23
43
40
42
1
2
3
4
5
6
7
8
9
ADPID [0]
-12V
ADPID [1]
LINKIN -
LINKOUT -
+12V
GROUND
LINKIN +
LINKOUT +
DTC MDP
Part number 8120-5677
