31

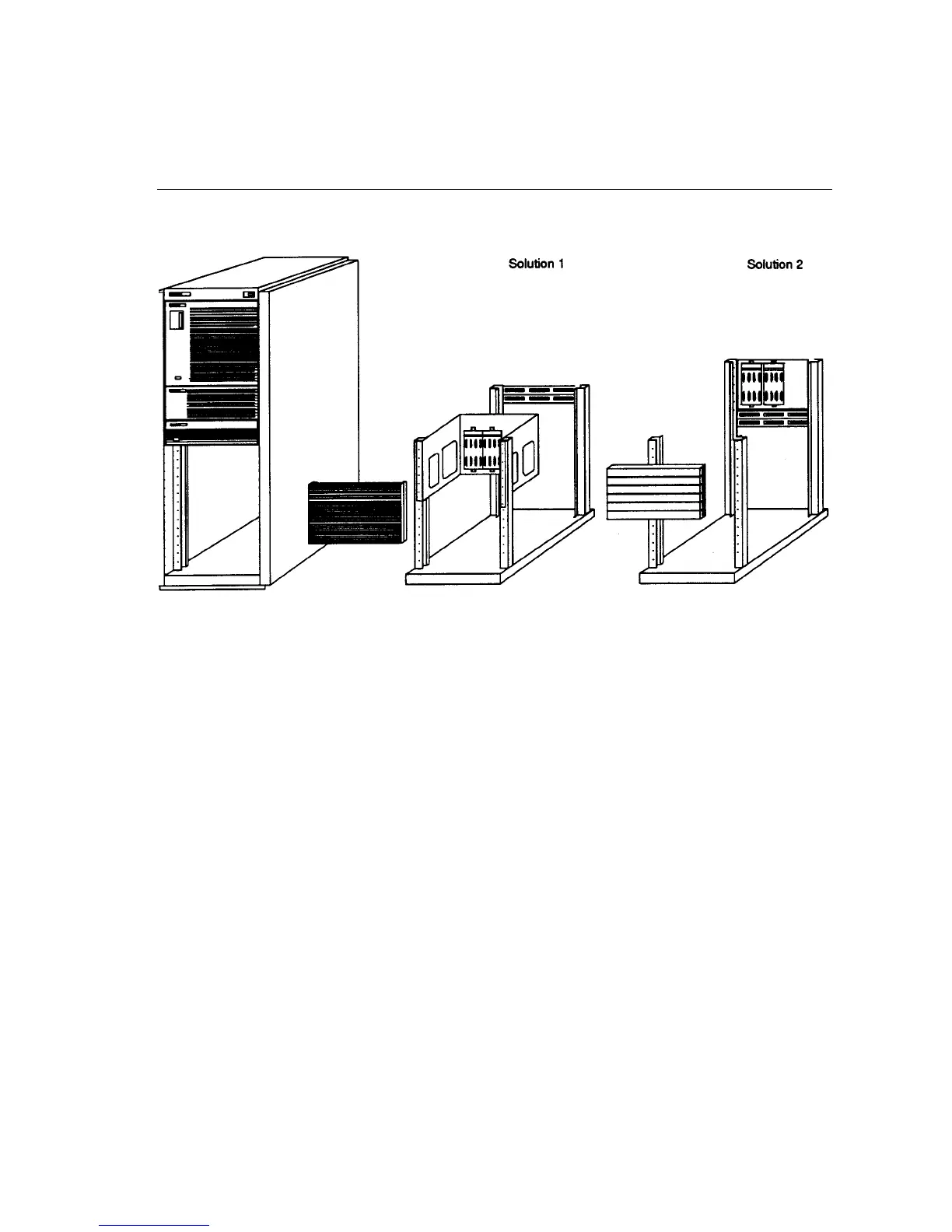

System and DTC 72MX with 64 ports in 1.6m rack
5
System and DTC 72MX with 64 ports in 1.6m rack
Solution 1
Front: 2 x J2084A MDP Mounting Kits
2x Modem Distribution P
anels
Rear: 2x RJ45 Direct Distribution P
anels
Solution 2
Front: 8 x Filler Panels
Rear: 1 x C2792A MDP Mounting Kits
2x Modem Distribution P
anels
2x RJ45 Direct Distribution P
anels
36
38
Table of Contents
Default Chapter
3
Table of Contents
3
1 Overview
7
DTC 72MX with Example Connections
8
2 HP System Racks
9
Meter System Rack (HP C2786A)
10
Meter System Rack (HP C2785A)
11
Guidelines for Racking Systems
12
3 Racking Considerations and Methods
15
Guidelines for Populating a Rack
15
Populating a Rack
17
4 Racking DTC Units and Connection Kits
19
Racking a DTC 72MX with a System Rack Front Panel
20
Racking a DTC 72MX with a Desktop Front Panel
22
Racking the DTC 16Xx Family
24
Racking the Direct Distribution Panel 8-Port DDP HP J2085A #102
26
Racking the Modem Distribution Panel HP J2085 #101
28
Front Mounting
28
Rear Mounting MDP Units
30
Racking the 24-Port RJ45 Direct Distribution Panel HP J2085A #103 and the 16-Port RJ45
32
Ddp Hp J2085A #105
32
Attaching an 8-Port RJ45 Break-Out Panel to a Desktop DTC 16Xx
33
5 Typical Configurations
35
Four DTC 72MX with 272 Ports in a 1.6M Rack
36
System and DTC 72MX with 64 Ports in 1.6M Rack
37
System and DTC 72MX with 64 Ports in 1.1M Rack
38
System and DTC 72MX with 88 Ports in 1.1M Rack
39
System and DTC 72MX with 184 Ports in 1.6M Rack
40
6 Connecting Asynchronous Devices
41
Overview
41
Rear View of a DTC 16Xx with Example Connections
41
Rear View of a DTC 72MX with Example Connections
42
Connecting Asynchronous Devices
43
RJ45 Diagnostic Port to Terminal
45
DTC 16Xx Family Diagnostic Port
45
DTC 72MX Diagnostic Port
45
DTC 16Xx and DTC 72MX to 8-Port MDP
46
DTC 16Xx and DTC 72MX to 8-Port DDP
47
DTC 72MX to 24-Port RJ45 Panel
48
DTC 72MX to 3-Pin Fan-Out Cable
48
Connection Accessories
49
DTC to Distribution Panel Cables
50
DTC to MDP Cable Pin out
50
DTC to DDP (DB25 and RJ-45) Cable Pin out
51
Cables for Connecting a Distribution Panel to a Device
52
Recommended Cables
52
DTC 72 to Device 3-Pin Fan-Out Cable Pin out
53
Cables that Should Not be Used
54
7 Most Common Cabling Schemes
55
Connection
55
DB25 Direct Connection to HP Terminals, HP Vectra Pc's and HP Printers
55
DB25 Direct Connection to HP Vectra Pc's (9-Pin Connector)
56
DB25 Direct Connection to HP Printer with Hardware Handshake
56
DB25 Direct Connection to HP 3000 ATP Ports (3-Pin Connector)
57
DB25 Direct Connection to HP 9000 with a DDP DB25
57
RJ45 Connection to HP Terminals, HP Vectra Pc's (DB25 Connector) and HP Printers
58
RJ45 Connection to HP Vectra PC (9-Pin Connector)
59
RJ45 Direct Connection to HP Printer with Hardware Handshake
60
RJ45 Connection to HP ATP 3-Pin Connectors
61
RJ45 Direct Connection to HP 9000 with a DDP DB25
61
Modem Connection to HP Terminals, HP Vectra Pc's and HP Printers
62
Modem Connection to HP Vectra PC (9-Pin Connector)
63
Connection to Modems
64
Modem Connection to HP 9000 with MDP or HP 3000 ATP Modem Ports
65
Modem Connection to HP 2334/5 Modem Ports
66
Connection
68
DB25 Direct Connection to RS-423/RS-422 HP Terminals, HP Vectra Pc's and HP
68
Printers
68
DB25 Direct Connection to RS-423/RS-422 HP 9000 with a DDP DB25
69
RJ45 Connection to RS-423/RS-422 HP Terminals, HP Vectra Pc's
69
Nector) and HP Printers
69
RJ45 Connection to RS-423/RS-422 HP 9000 with a DDP DB25
70
RJ45 Connection to RS-422 HP 700/32 Terminal
71
DB25 Direct Connection to RS-422 HP 700/32 Terminal
71
Protocol Analyzer Connection
72
POD Connection
72
POD Connection for RS-423 Signals
73
8 Making Your Own Cables
75
A Note on Standards
75
Guidelines for Application
76
Single-Ended Versus Differential Transmission
76
RS-422/RS-423 Compatibility
78
Terminal Connections
78
Wiring
79
Environmental Effects
80
Shielded Cables
80
DTC and Standard Cables
81
Combining Different Signal Types in the same Cable Bundle
81
And 10Baset
81
And RS-423 and Telephone Cables
81
DTC Connectors
82
DTC 62-Pin Connector
82
DDP 50-Pin Telco Connector
83
MDP 9-Pin Connector
83
DDP RJ45 Connector
84
34-Pin V.35 Connector
84
DTC MDP and DDP DB25 Connector
85
15-Pin AUI Connector
85
DB25 to RJ45 Adaptor
85
DTC Connector Pinouts
86
DTC 25-Pin Direct Connect RS-232
86
DTC 25-Pin Modem Connect RS-232
86
DTC 25-Pin Direct Connect RS-423
87
DTC RJ-45 Direct Connect RS-232
87
DTC RJ-45 Direct Connect RS-423
87
X.25 Interface
88
RS-232-D X.25 Interface
89
Cabling Tips
90
Twisted Pair Cables
90
9 Adapting to Cabling Systems
91
DTC-To-Work Area Using Cross-Connect Blocks and RJ45 Patch Panels
92
DTC to Work Area Using RJ45 Patch Panels
92
DTC to Work Area Using Cross-Connect Blocks
92
Adapting to ATT356A Cabling System
93
Adapting to a 10Baset Cabling System
96
Adapting to an ATT258A Cabling System
99
10 Connecting to an X.25 Network
103
Cable
104
RS-232-D Cable
105
11 Supported LAN Cables and Transceivers
107
Supported Transceivers
108
Supported LAN Cables
108
Glossary
109
Index
111
Documentation Map for HP DTC 72MX and HP DTC 16Xx Family
113
