G-sensor board
Description Spare part number
G-sensor board 658983-001
G-sensor cable 658984-001
The G-sensor board is mounted on the touchscreen glass. It senses when you tap on the glass, and it
wakes the system if in standby mode. It is attached to the glass with adhesive.

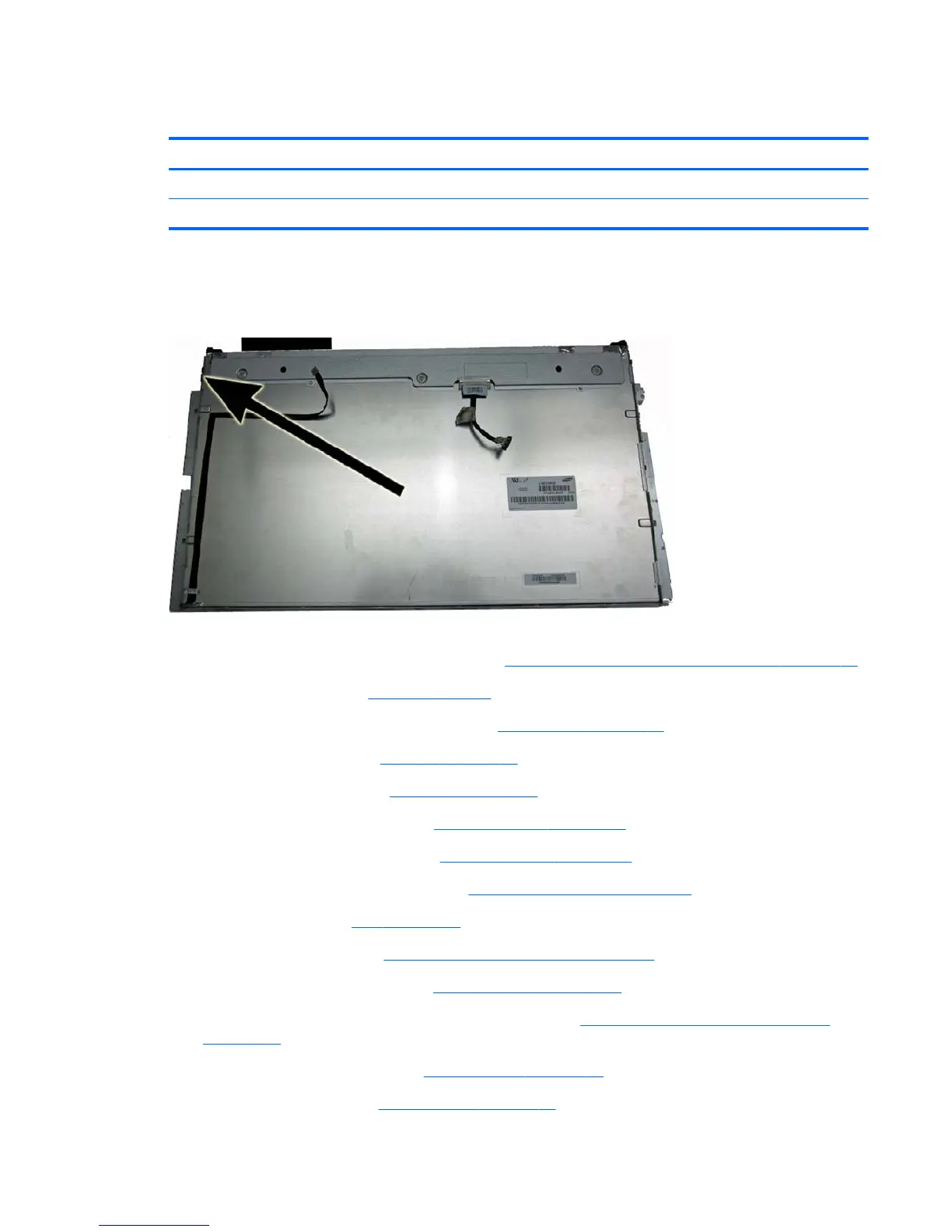

Figure 7-75 G-sensor board location
To remove the G-sensor board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the stand (see
Stand on page 34).
3. Remove the right and left rear panels (see
Rear panels on page 46).
4. Remove the left cap (see
Left cap on page 60).
5. Remove the right cap (see
Right cap on page 66).
6. Remove the rear logo cover (see
Rear logo cover on page 71).
7. Remove the rear main frame (see
Main rear frame on page 74).
8. Remove the system board shield (see
System board shield on page 76).
9. Remove the fan (see
Fan on page 82).
10. Remove the fan sink (see
Fan Sink (Thermal Module) on page 84).
11. Remove the graphics board (see
Graphics board on page 90).
12. Remove the WLAN module and TV tuner module (see
WLAN module and TV tuner module
on page 92).
13. Remove the system board (see
System Board on page 95).
14. Remove the display (see
Display Panel on page 97).
G-sensor board 99
