Fan
Description Spare part number
Fan 652321-001
The fan is located near the top of the computer. It is secured with three screws. You do not have to
remove the heat sink to remove it.

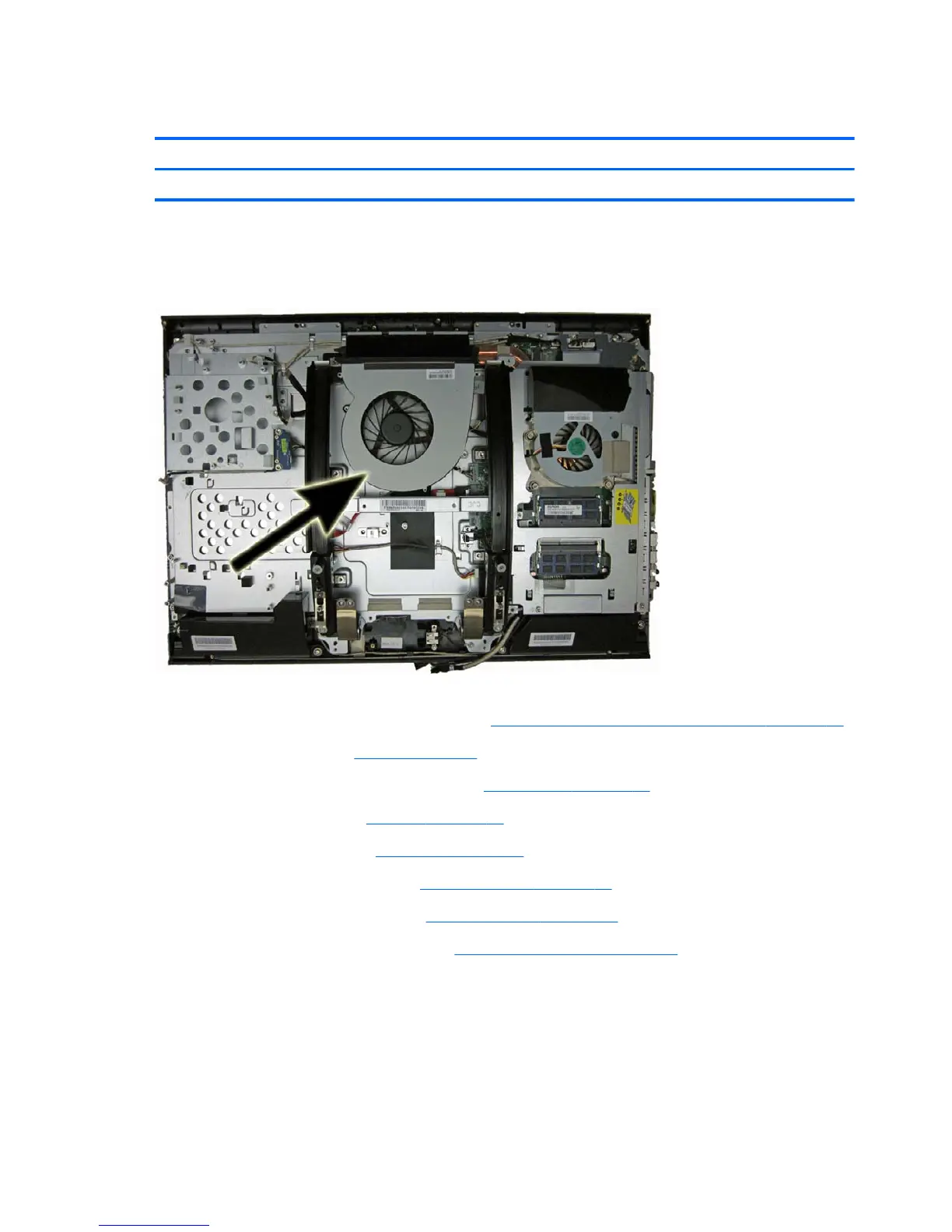

Figure 7-58 Fan location
To remove the fan:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the stand (see
Stand on page 34).
3. Remove the right and left rear panels (see
Rear panels on page 46).
4. Remove the left cap (see
Left cap on page 60).
5. Remove the right cap (see
Right cap on page 66).
6. Remove the rear logo cover (see
Rear logo cover on page 71).
7. Remove the rear main frame (see
Main rear frame on page 74).
8. Remove the system board shield (see
System board shield on page 76).
9. Disconnect the fan cable from the system board connector (1).
10. Remove the three screws that secure the fan to the computer (2).
82 Chapter 7 Removal and Replacement Procedures
