Webcam module
Description Spare part number
Webcam module without DMIC 652277-001
Webcam module, 2.0 MP, FHD 658985-001
Webcam lens cover 654598-001
Webcam wheel cap 658986-001
The webcam module is located at the top of the computer. It is secured with two screws and has one
connector.

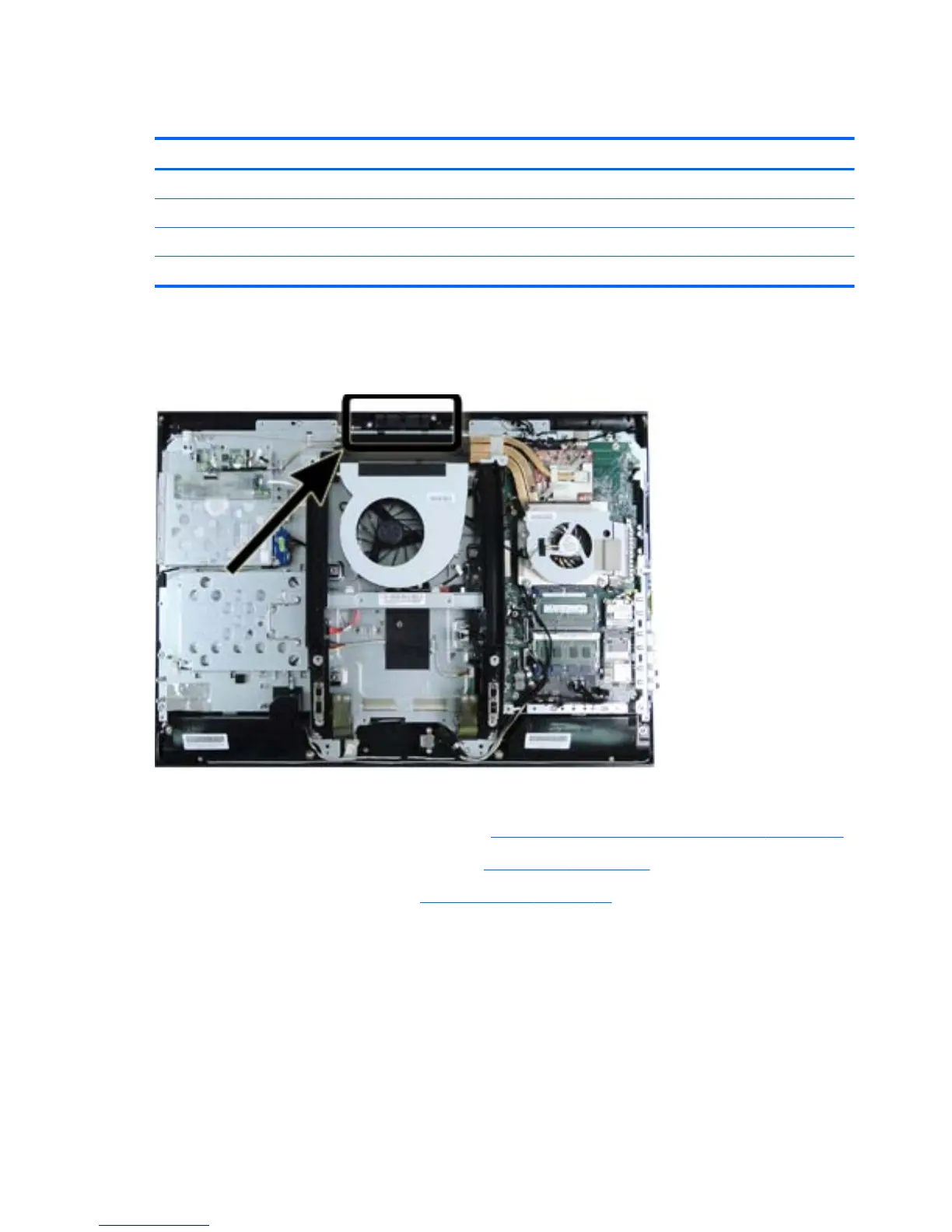

Figure 7-46 Webcam module location
To remove the webcam module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the left and right rear panels (see
Rear panels on page 46).
3. Remove the rear logo cover (see
Rear logo cover on page 71).
4. Remove the two screws (1) that secure the webcam module to the computer.
5. Disconnect the cable from the system board (2).
72 Chapter 7 Removal and Replacement Procedures
