Left cap
Description Spare part number
Left side cap, no optical drive 658989-001
The left cap is located on the left side of the computer. You must remove it to remove the optical
drive, optical drive eject board, rear logo cover, and main rear frame.

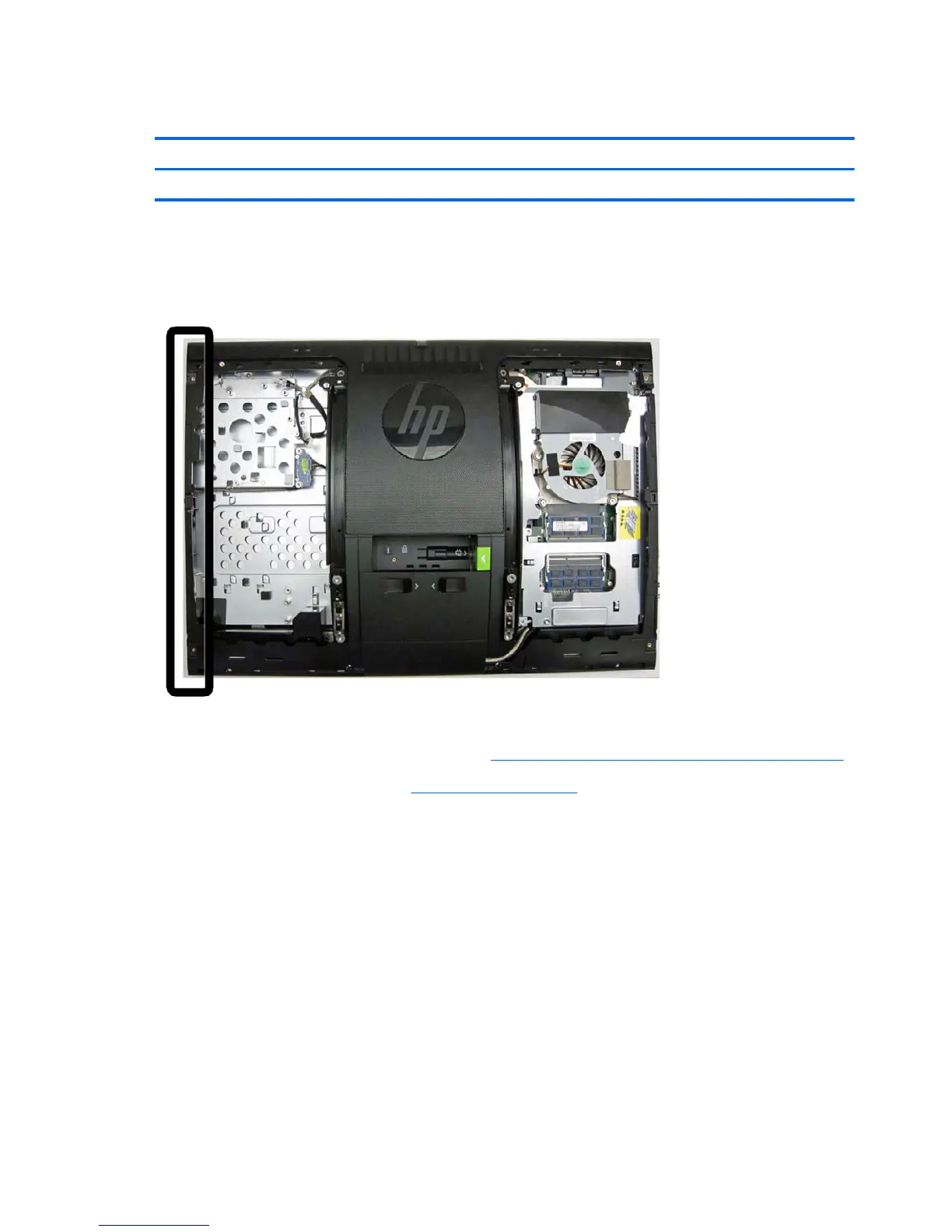

Figure 7-32 Left cap location
To remove the left cap:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the left rear panel (see
Rear panels on page 46).
3. Move the two screws (1) that secure the cap to the computer.
60 Chapter 7 Removal and Replacement Procedures
