To install the hard drive connector, reverse the removal procedures.
Graphics board
Description Spare part number
GFX, 1 GB graphics card 652164-001
ATI MXM30 Viper 1-GB HD5570 graphics card 628380-001
The graphics board is located near the top of the system board under the fan sink. You must remove
the fan sink to remove the graphics board. The board is secured with two screws.

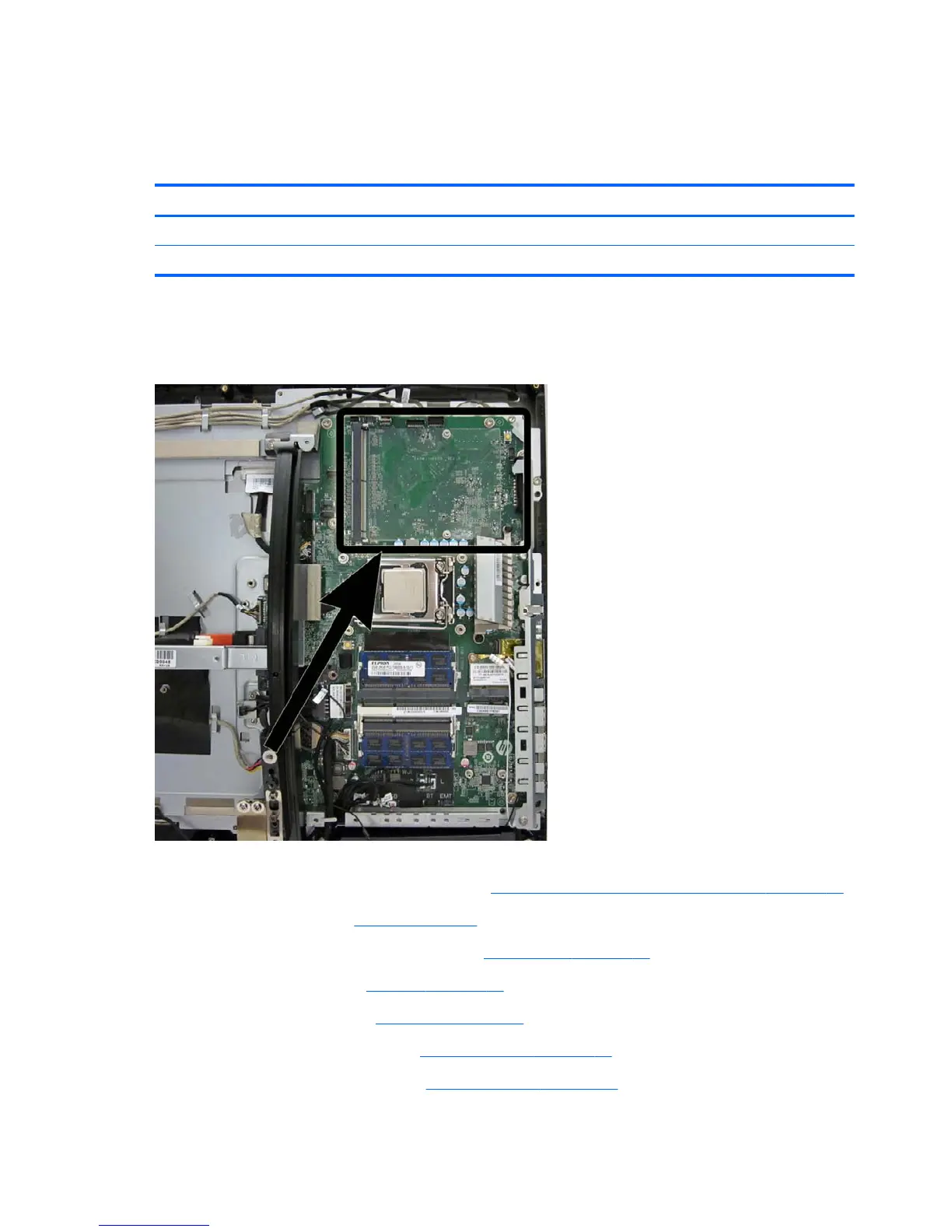

Figure 7-66 Graphics board location
To remove the graphics board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the stand (see
Stand on page 34).
3. Remove the right and left rear panels (see
Rear panels on page 46).
4. Remove the left cap (see
Left cap on page 60).
5. Remove the right cap (see
Right cap on page 66).
6. Remove the rear logo cover (see
Rear logo cover on page 71).
7. Remove the rear main frame (see
Main rear frame on page 74).
90 Chapter 7 Removal and Replacement Procedures
