VESA mount
The VESA adapter plate is stored in the bottom of the stand and is mounted in place of the stand.
To install the VESA adapter plate:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Insert your finger, or a flathead screwdriver, into the slot on the stand cover (1) to pry it off of the
computer stand.

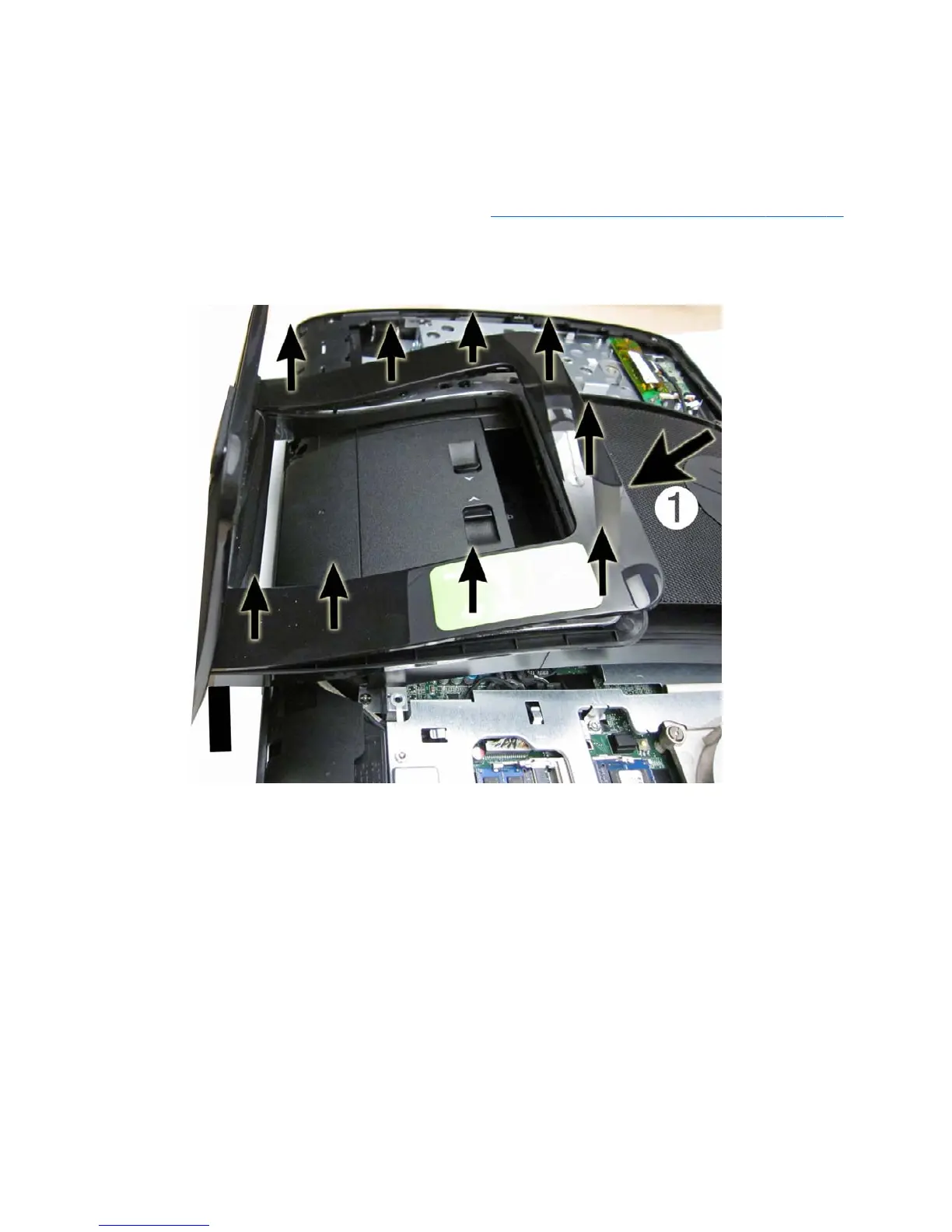

Figure 7-3 Removing the stand cover
36 Chapter 7 Removal and Replacement Procedures
