Speakers
Description Spare part number
Speaker, left 671587-001
Speaker, right 671588-001
The speakers are located at the bottom of the computer. Two separate speakers are each secured by
two screws. The speakers are connected together by a cable and have one cable that routes to the
system board connector.

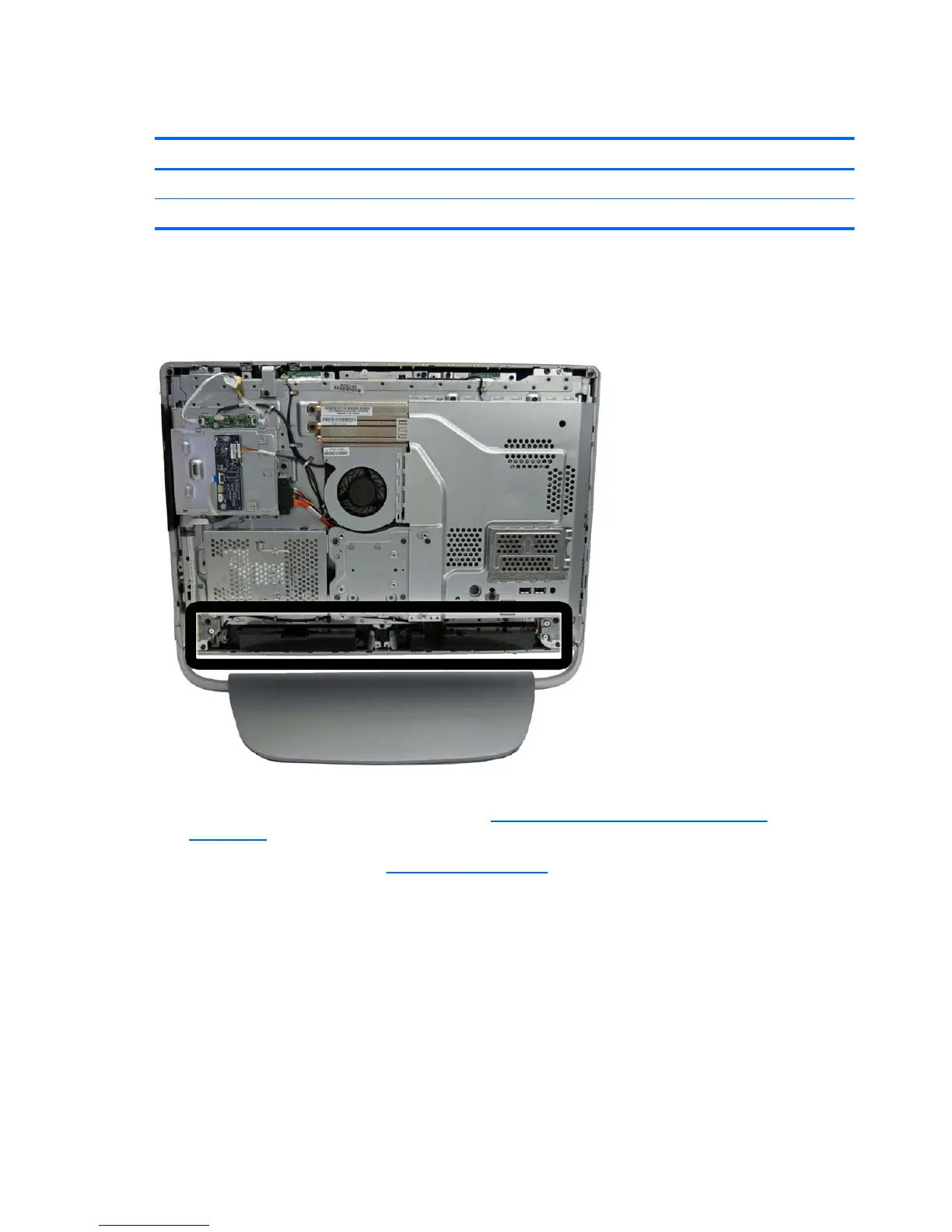

Figure 7-21 Speaker location
To remove the speakers:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 40).
2. Remove the rear cover (see
Rear Cover on page 41).
3. Remove two Phillips screws (1) that secure each speaker to the computer.
58 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
