WLAN Module
Description Spare part number
802.11b/g/n (2x2) WLAN card 654602-001
HP WLAN combo 802.11b/g/n + Bluetooth 2.1 card 652279-001
802.11b/g/n (1x1) WLAN module 634906-001
The WLAN module is secured with 2 screws and has 1 connected antenna.

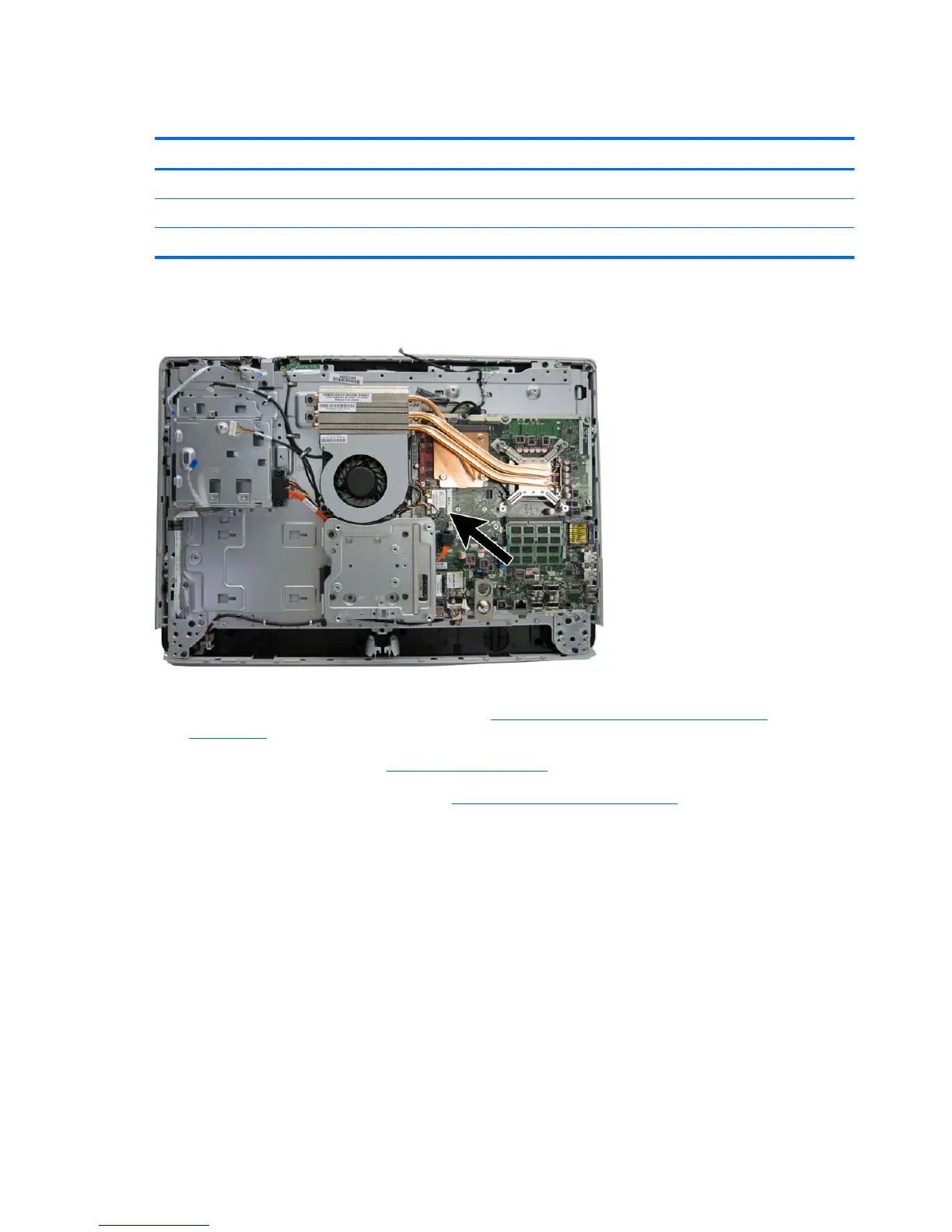

Figure 7-26 WLAN module location
To remove the WLAN module:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 40).
2. Remove the rear cover (see
Rear Cover on page 41).
3. Remove the system board cover (see
System Board Cover on page 60).
4. Disconnect the antenna cable from the module (1).
62 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
