System Board Cover
The system board cover protects the system board. It is secured with four screws.

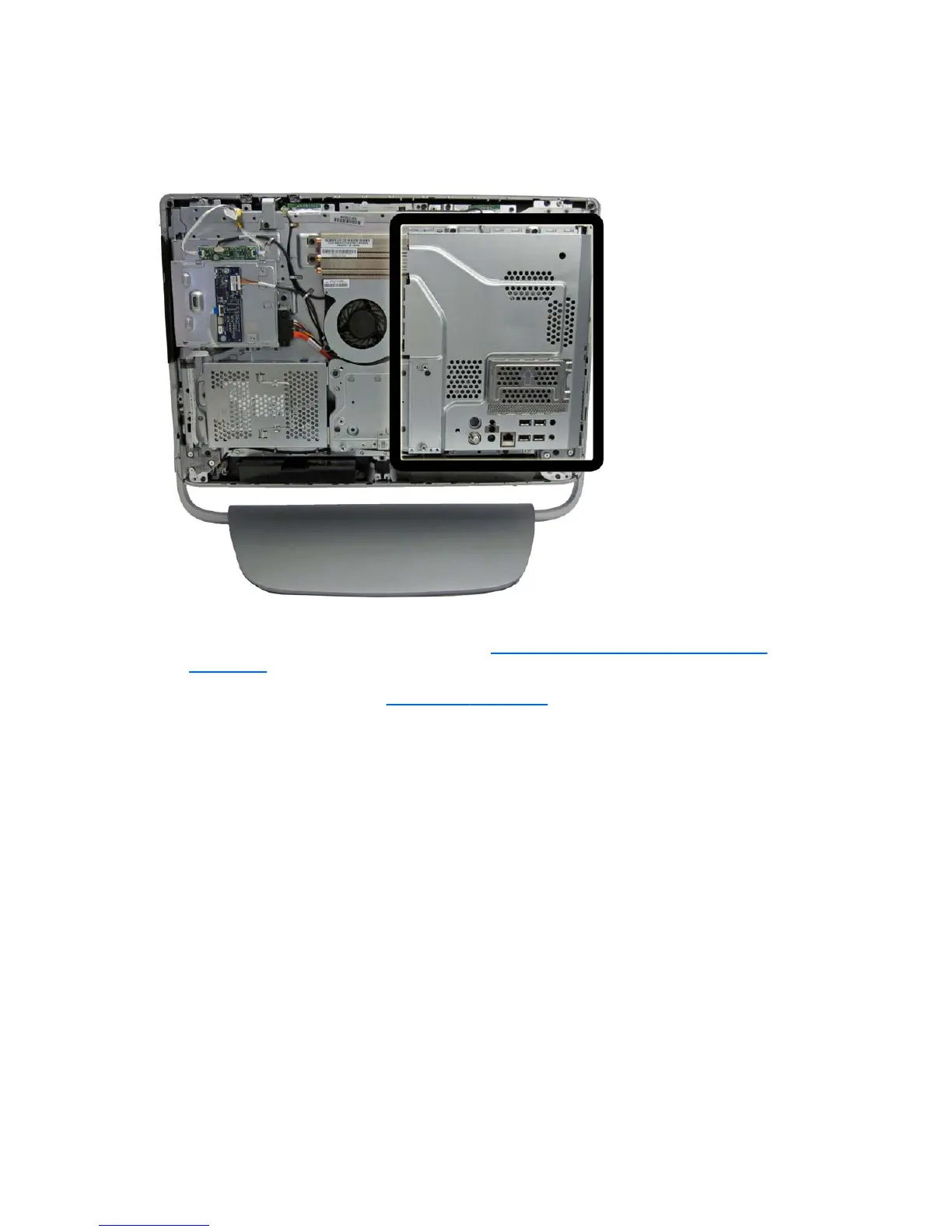

Figure 7-24 System board cover location
To remove the system board cover:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 40).
2. Remove the rear cover (see
Rear Cover on page 41).
3. Remove the four Torx screws (1) that secure the cover to the computer.
60 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
