Coaxal Cable Connector
Description Spare part number
TV tuner cable connector, RF, NTSC, 40mm 671593-001
TV tuner cable connector, RF, PAL, 40mm 671601-001
The cable connector is secured with 2 screws. It is located near the bottom of the system board, just
above the speakers.

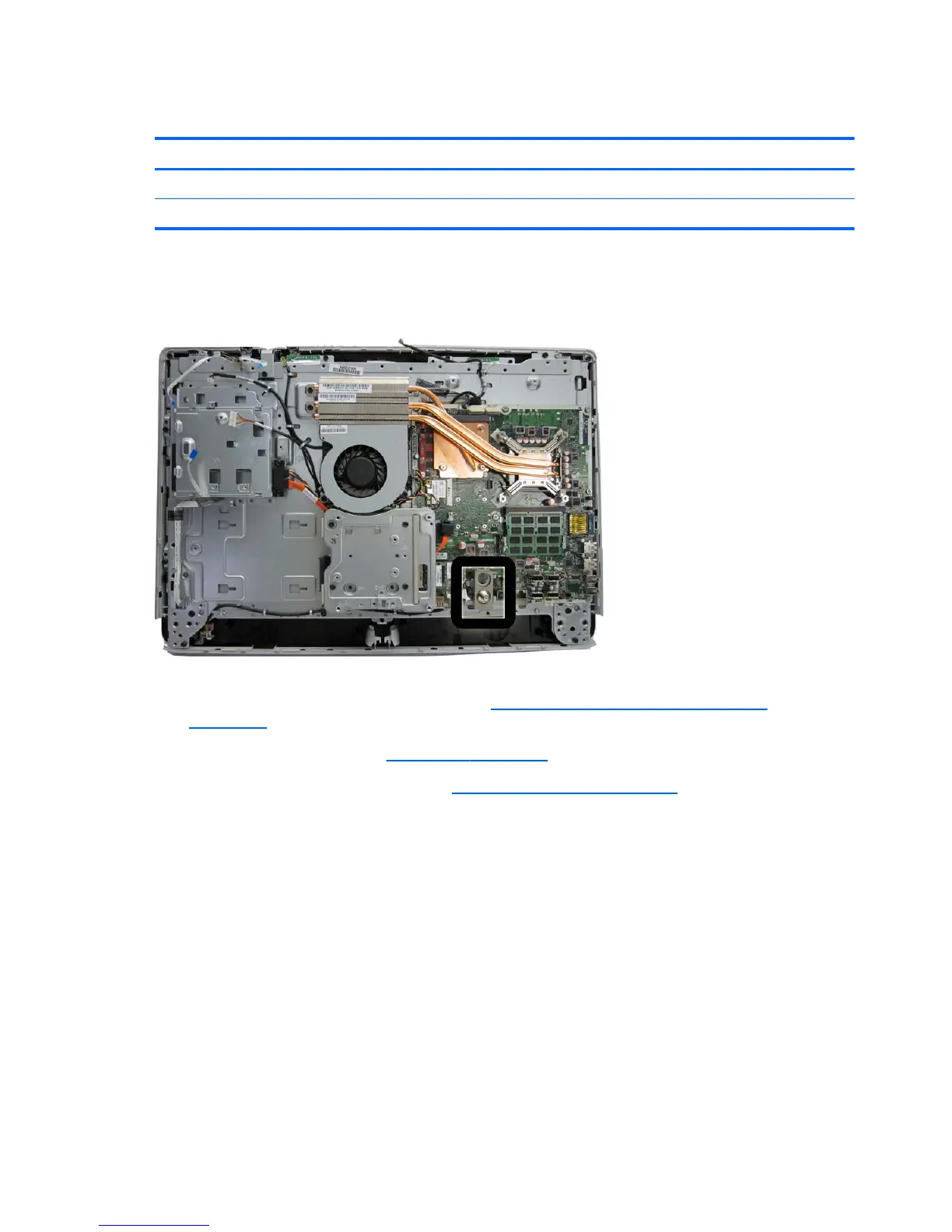

Figure 7-45 Cable connector location
To remove the cable connector:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 40).
2. Remove the rear cover (see
Rear Cover on page 41).
3. Remove the system board cover (see
System Board Cover on page 60).
78 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
