NOTE: After installing a new processor onto the system board, always update the system
ROM to ensure that the latest version of the BIOS is being used on the computer. The latest
system ROM BIOS can be found on the Web at:
http:\\h18000.www1.hp.com/support/files.
Graphics Card
NOTE: The Americas region offers only integrated graphics; a discrete graphics option is not
available.
Description Spare part number
AMD Radeon HD 6450A 1GB DDR3 MXM 3.0A (includes bracket; not available in the Americas
region)
671561-001
AMD Radeon HD 6550A 2GB DDR3 MXM 3.0A (includes bracket; not available in the Americas
region)
671563-001
NVIDIA GeForce GT 5xx 1GB DDR3 MXM 3.0A (includes bracket; not available in the Americas
region)
671564-001
NVIDIA GeForce GT 5xx 2GB DDR3 MXM 3.0A (includes bracket; not available in the Americas
region)
671565-001
The graphics card is located under its own heat sink on the upper left of the system board. To remove
it, you have to first remove the processor heat sink, and then the graphics card heat sink.

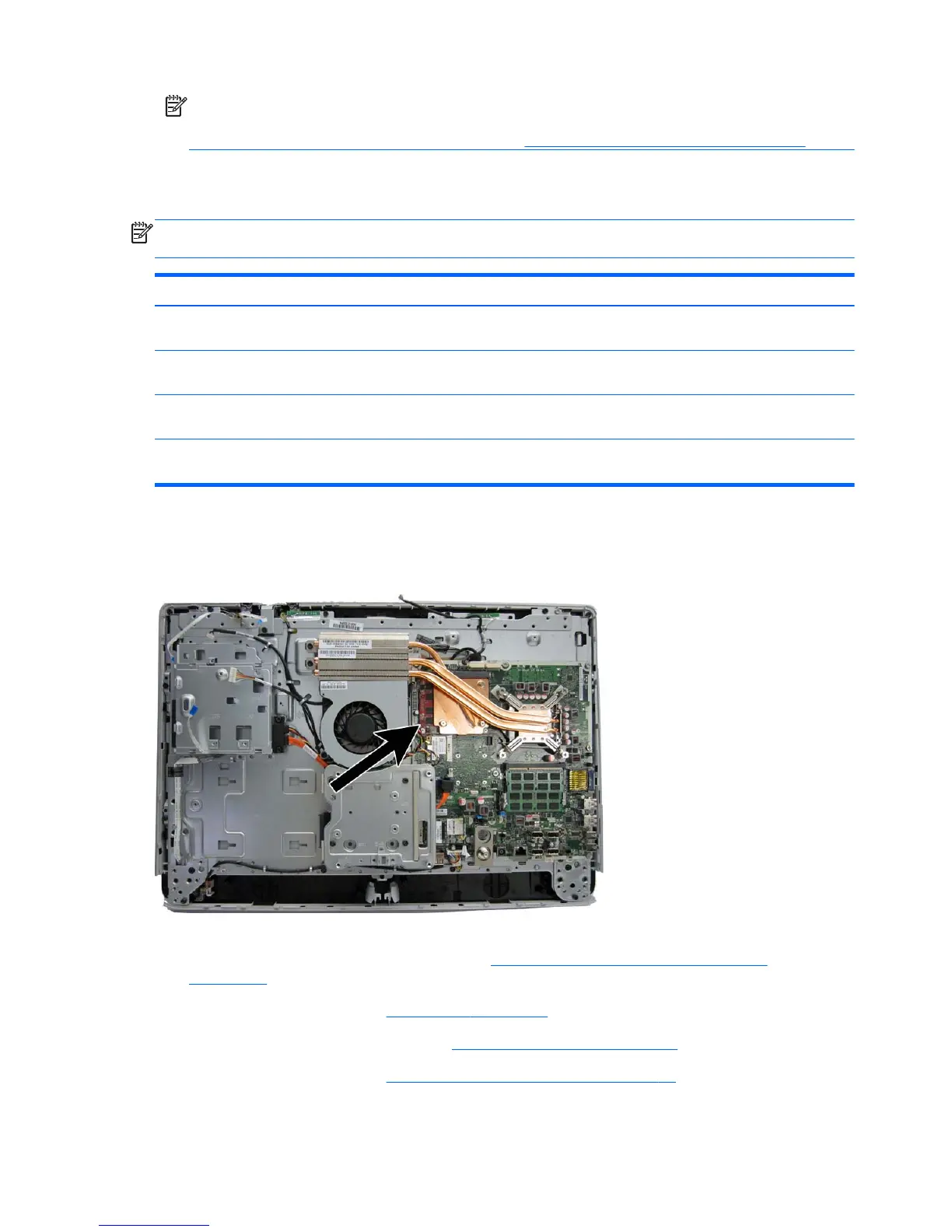

Figure 7-36 Graphics card location
To remove the graphics card:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 40).
2. Remove the rear cover (see
Rear Cover on page 41).
3. Remove the system board cover (see
System Board Cover on page 60).
4. Remove the heat sinks (see
Heat sinks (Thermal Modules) on page 66).
70 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
