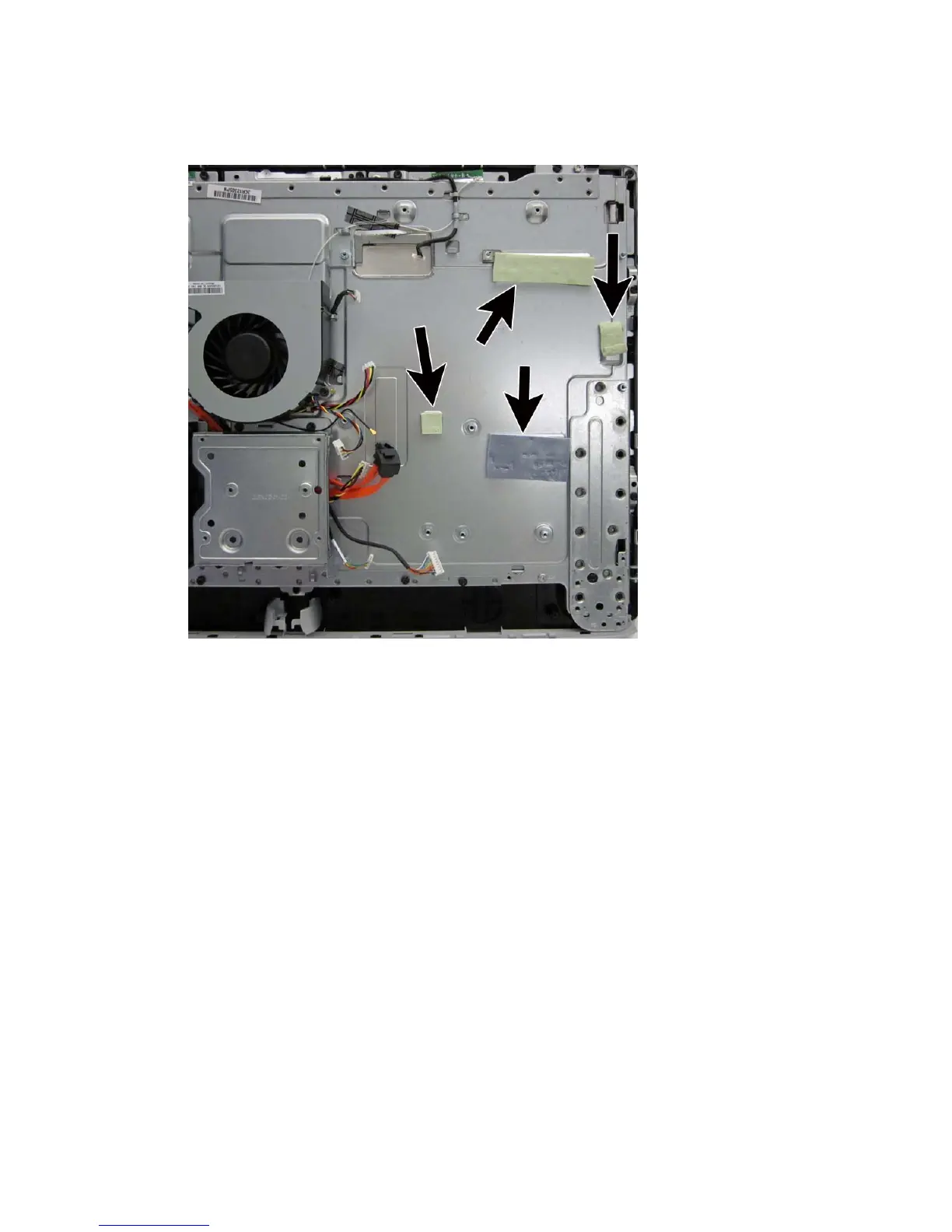

12. Use the following image to determine the locations for required thermal pads under the system
board.
Figure 7-49 Thermal pad locations
To install the system board, reverse the removal procedures.
82 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
