HP Z400 - Workstation User Manual

Installing the airflow guide
1. Power down the workstation (see Predisassembly procedures on page 69).
2. Disconnect power from the workstation (see
Predisassembly procedures on page 69).
3. Remove the side access panel (see
Removing the side access panel on page 72).
4. Press the power cables, including P1, down toward the system board between the DIMM slots and
the internal bay, as shown in the following figure.

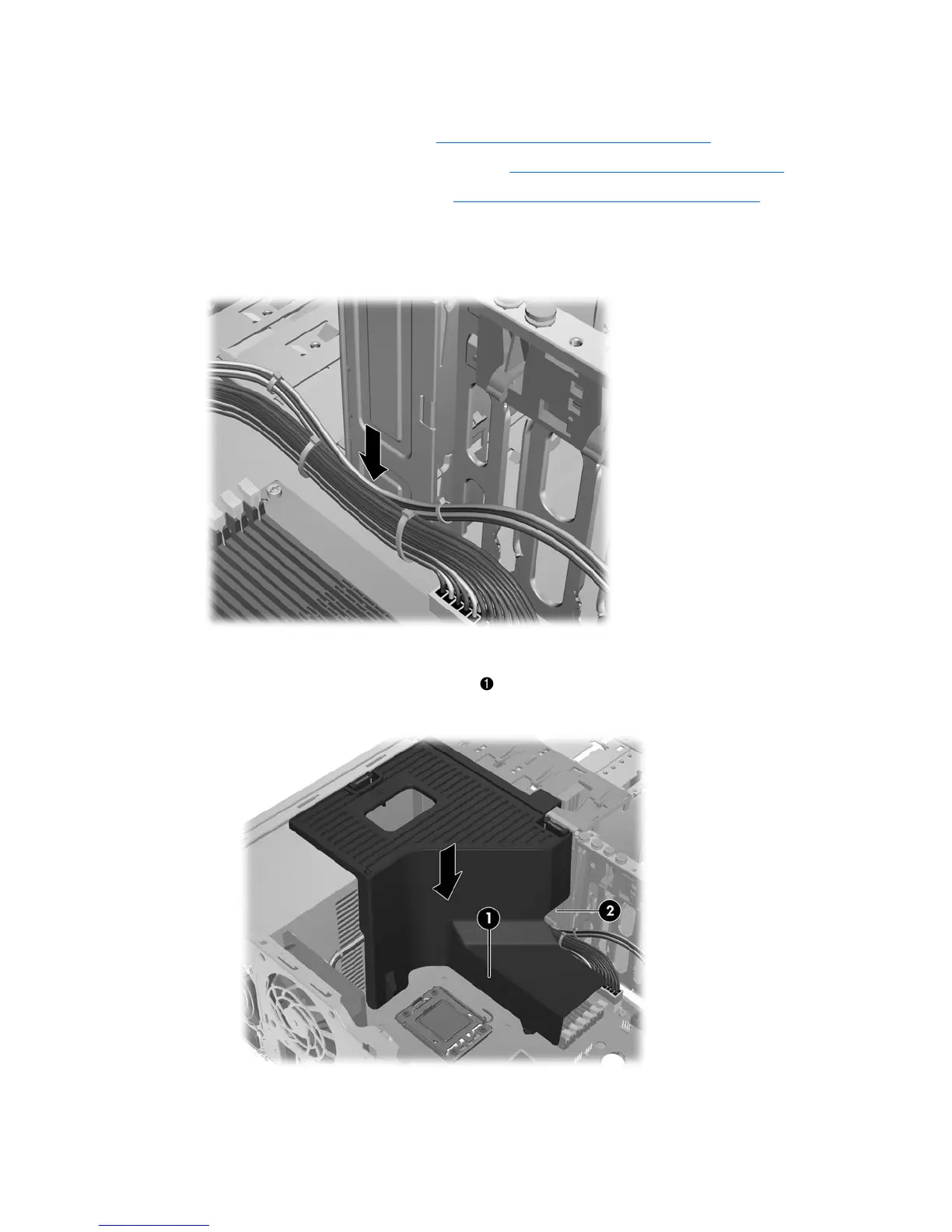

Figure 5-27 Positioning the chassis cables
5. Set the airflow guide into the chassis.
a. Place the edge of the airflow guide
between DIMM socket #6 and the CPU heatsink.
Figure 5-28 Installing the airflow guide
b. Route the power and data cables through the opening next to the internal bay
2
.
ENWW Removing and installing components 93

HP Z400 - Workstation Specifications

General

Processor	Intel Xeon W3500 series
Chipset	Intel X58 Express
Memory	Up to 24 GB DDR3 ECC
Storage	Supports SATA drives
Graphics	NVIDIA Quadro or ATI FirePro series
Expansion Slots	2 PCI Express Gen2 x16, 1 PCI Express Gen2 x8
Power Supply	475W
Operating System	Red Hat Enterprise Linux
