Installing the front panel I/O device assembly
To install the front panel I/O device assembly:
1. Guide the front panel I/O device assembly cables through the chassis openings from which they
were removed.
2. Place the front panel I/O device assembly in the chassis.
3. Install the fastening screws in the reverse order from which they were removed.
4. Connect the front panel I/O cables directly to the system board. Connect the audio cable to the
connector at
and the USB cable to the connector at , as shown in the following diagram.
●
For 6 DIMM Z400s, connect the front 1394a cable directly to the system board at location
2
, as shown in the following diagram.
●
For 4 DIMM Z400s, connect the front 1394a cable directly to the optional 1394a expansion
card. (If the 1394a cable is not used, use the plastic clip at the bottom of the chassis to secure
the cable.)

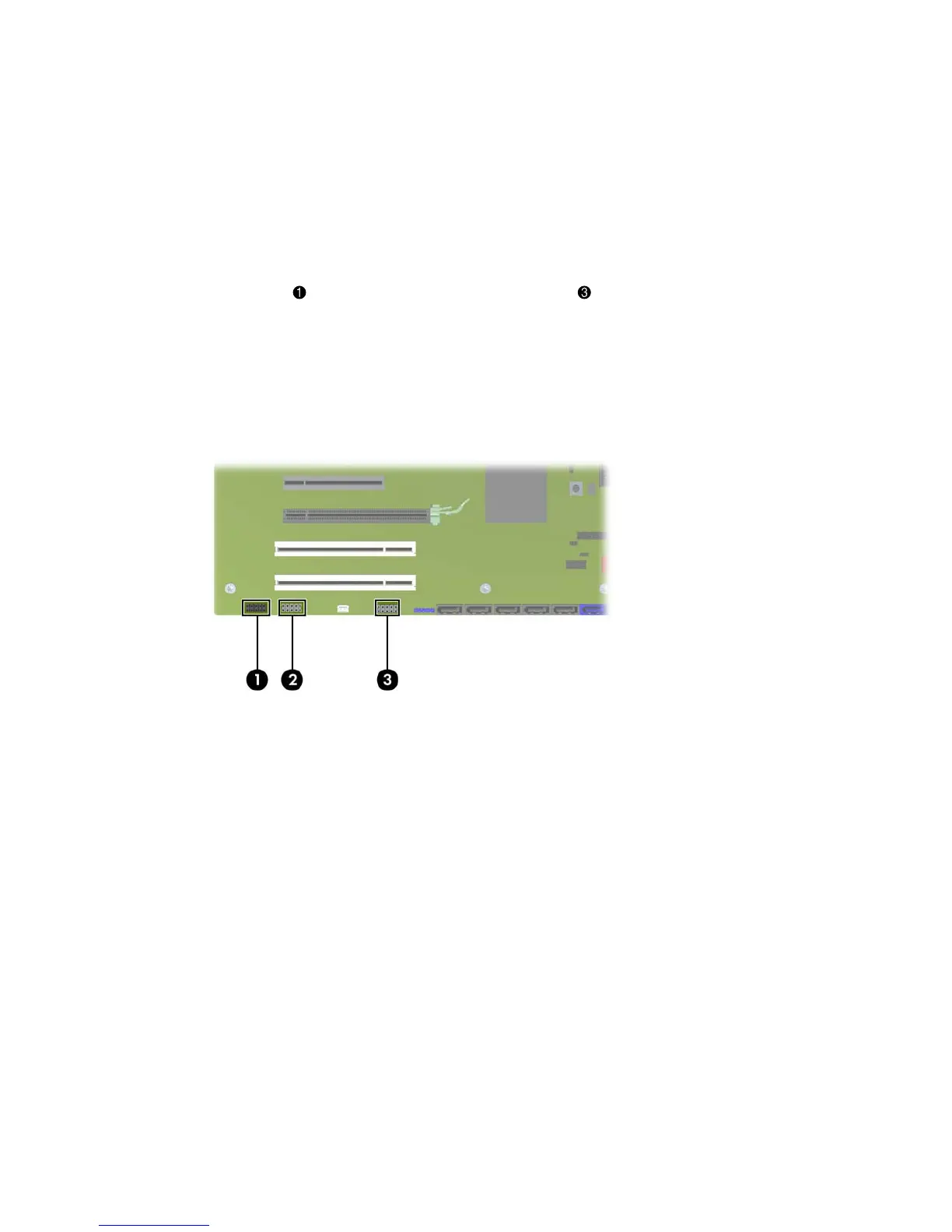

Figure 5-10 Connecting the front panel I/O device cables
ENWW Removing and installing components 77
