6. On the back of the front bezel, squeeze the HP logo mounting tabs and press the logo outward
2
as shown in the following figure.

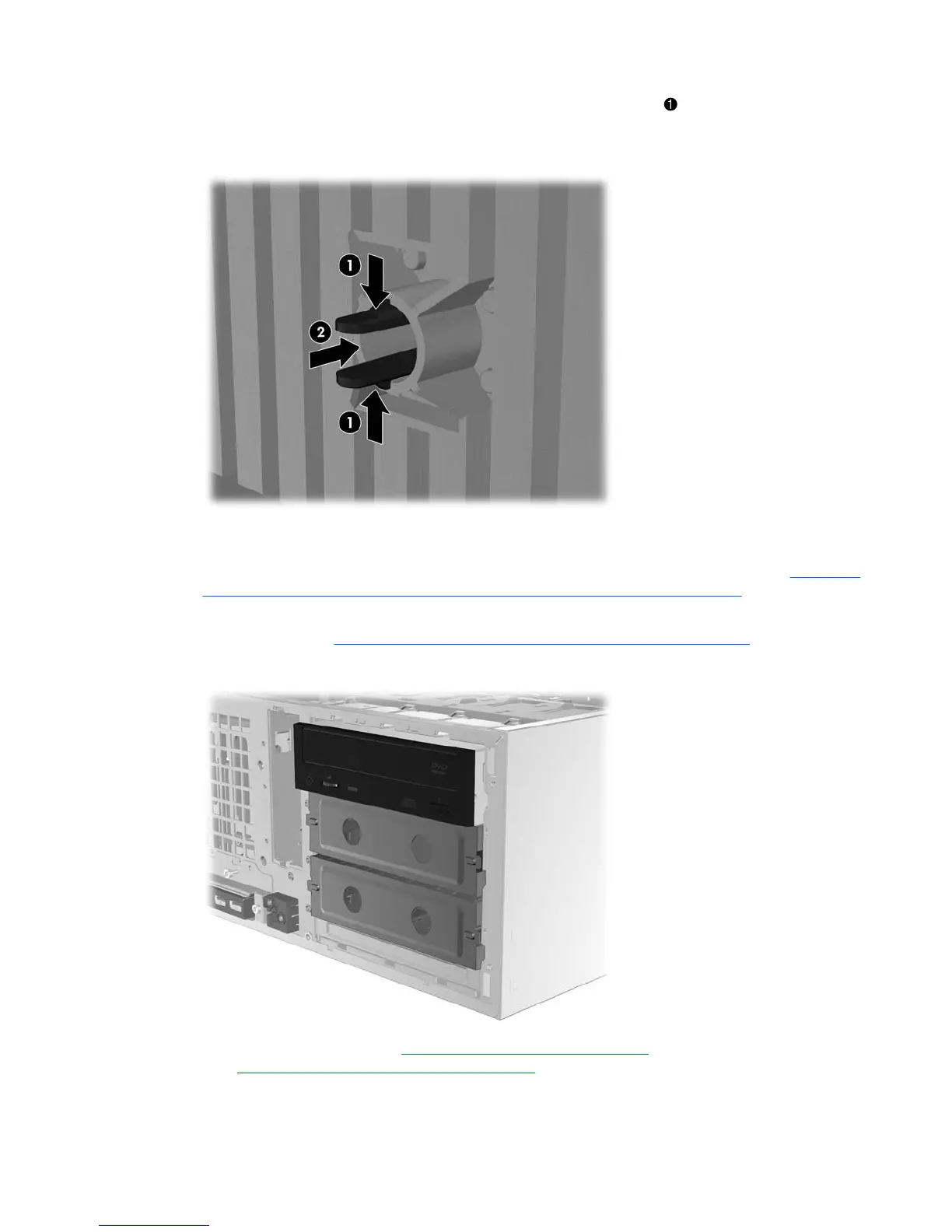

Figure 5-76 Rotating the HP logo
Rotate the HP logo 90 degrees counterclockwise, and then release the logo and press it back into
place in the front bezel.
7. Remove the EMI filler panels and remove the optical disk drive from the chassis (see
Removing
an optical disk drive from the optical bay (mini-tower configuration) on page 80.
8. Rotate the EMI filler panels and the optical drive 90 degrees as shown in the figure below, and then
reinstall them (see
Installing an optical drive (desktop configuration) on page 86.
Figure 5-77 Reinstalling the optical drive
9. Replace the front bezel (see Installing the front bezel on page 75) and the side access panel
(see
Installing the side access panel on page 72) when finished.
ENWW Removing and installing components 135
