8. Connect the data and power
2
cables from the system board to the optical disk drive as shown
in the following figure. (The connector colors might be different than shown in the figure.)

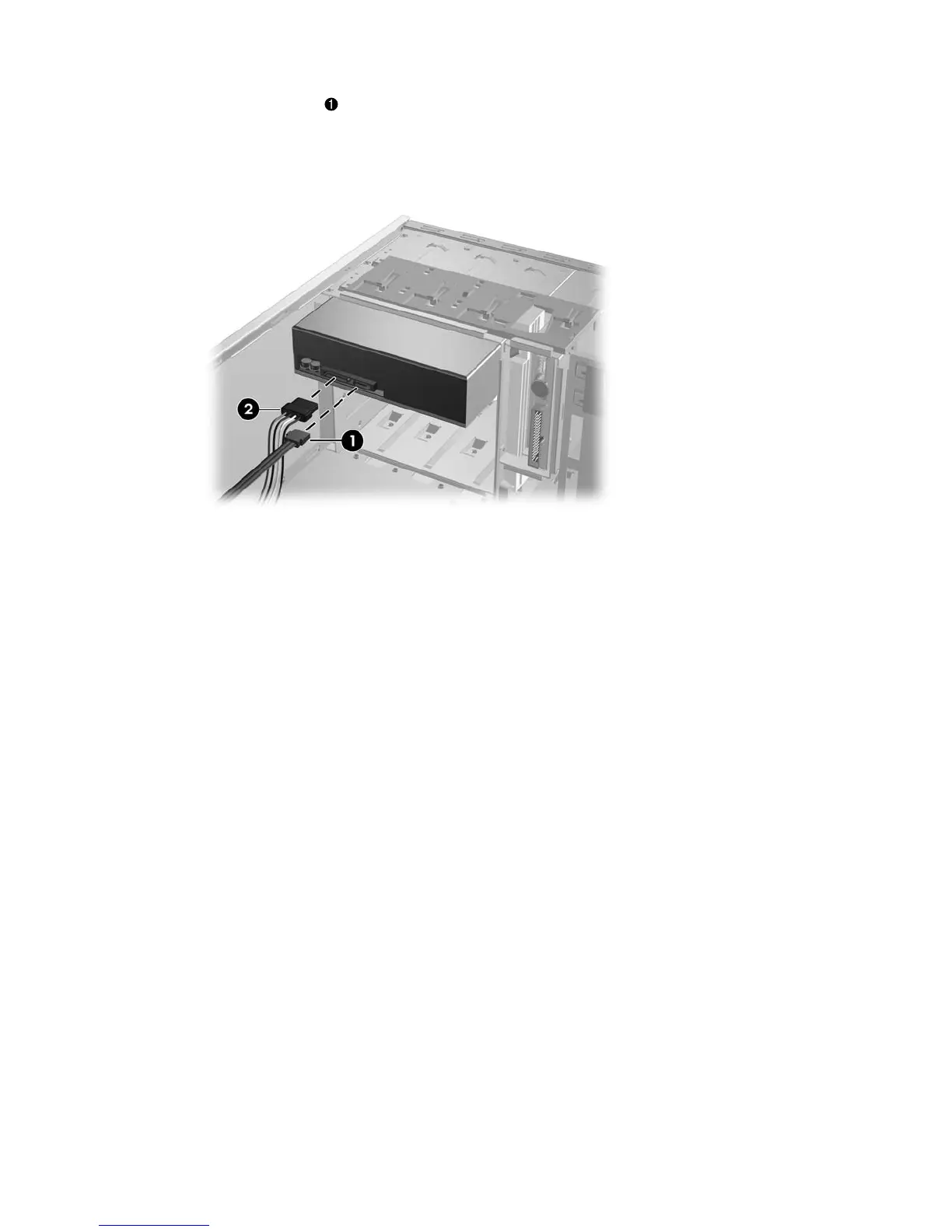

Figure 5-21 Connecting the optical drive cables
9. Reverse steps 1–5 to replace the components you removed during installation.
ENWW Removing and installing components 87
