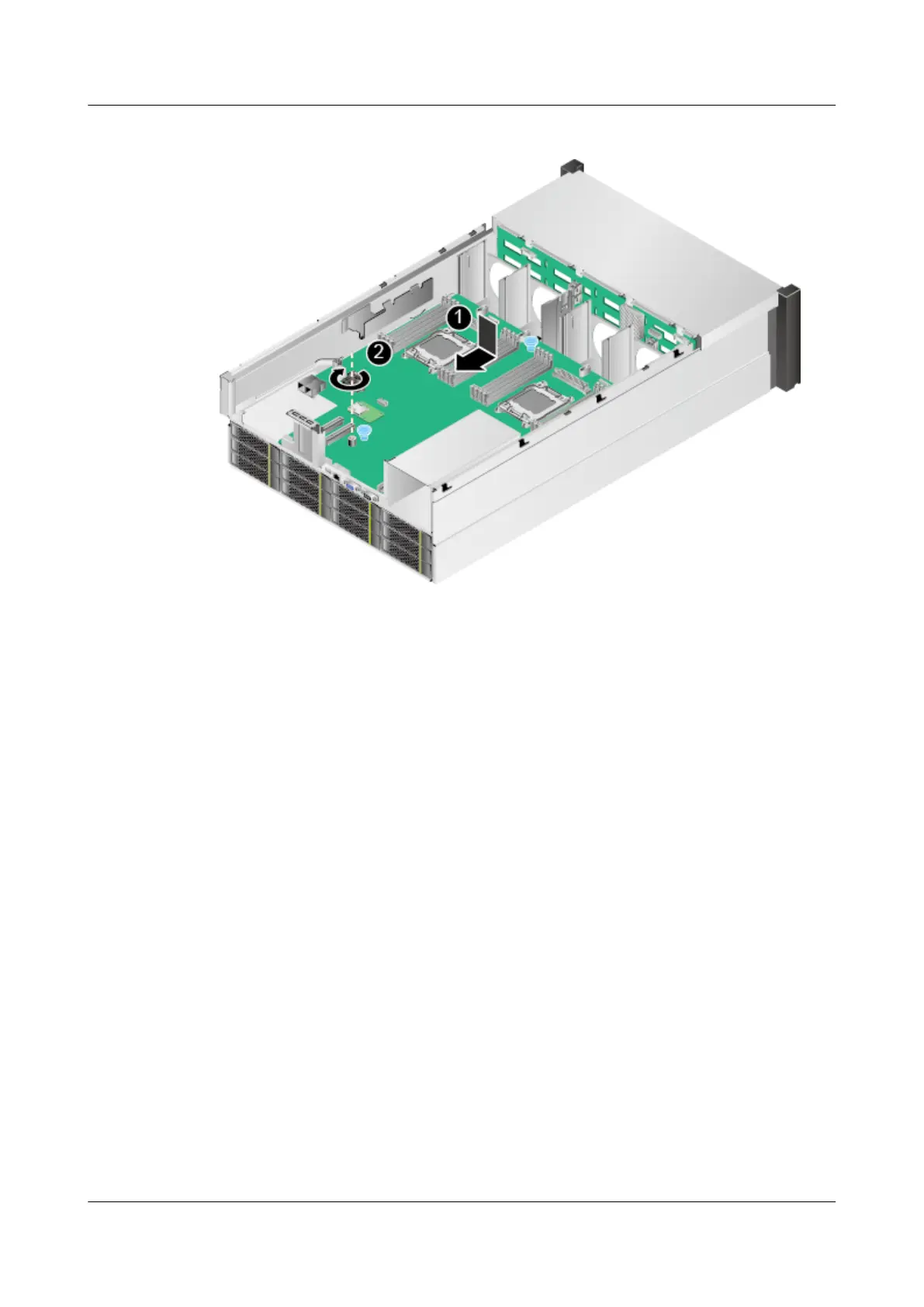

Figure 7-87 Installing the mainboard
Step 6 Tighten the screw on the mainboard using the Phillips screwdriver. See step (2) in Figure
7-87.
Step 7 Place the cable guide in the chassis, and push the cable guide in the arrow direction until it
does not move. See Figure 7-88.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 203
