Procedure
Step 1 Wear an ESD wrist strap. For details, see 1 Safety Instructions.
Step 2 Determine the rack number and chassis number of the server to be removed, and label its
panel to prevent misoperations.
Step 3 Power off the 5288 V3. For details, see 4.2 Powering Off the Server.
Step 4 Remove all external cables such as power and network cables.
Step 5 Remove the 5288 V3 and put it on an ESD desktop. For details, see 3.6 Removing the
Server.
Step 6 Remove the chassis cover. For details, see 7.11 Removing the Chassis Cover.
Step 7 Remove the PCIe card from the mainboard. For details, see 7.21.2 Removing a PCIe Card
from the Mainboard.
Step 8 Determine the position of the SD card to be removed. See Figure 7-98.SD card 1 is above the
SD card mezzanine card, and SD card 2 is below the SD card mezzanine card.

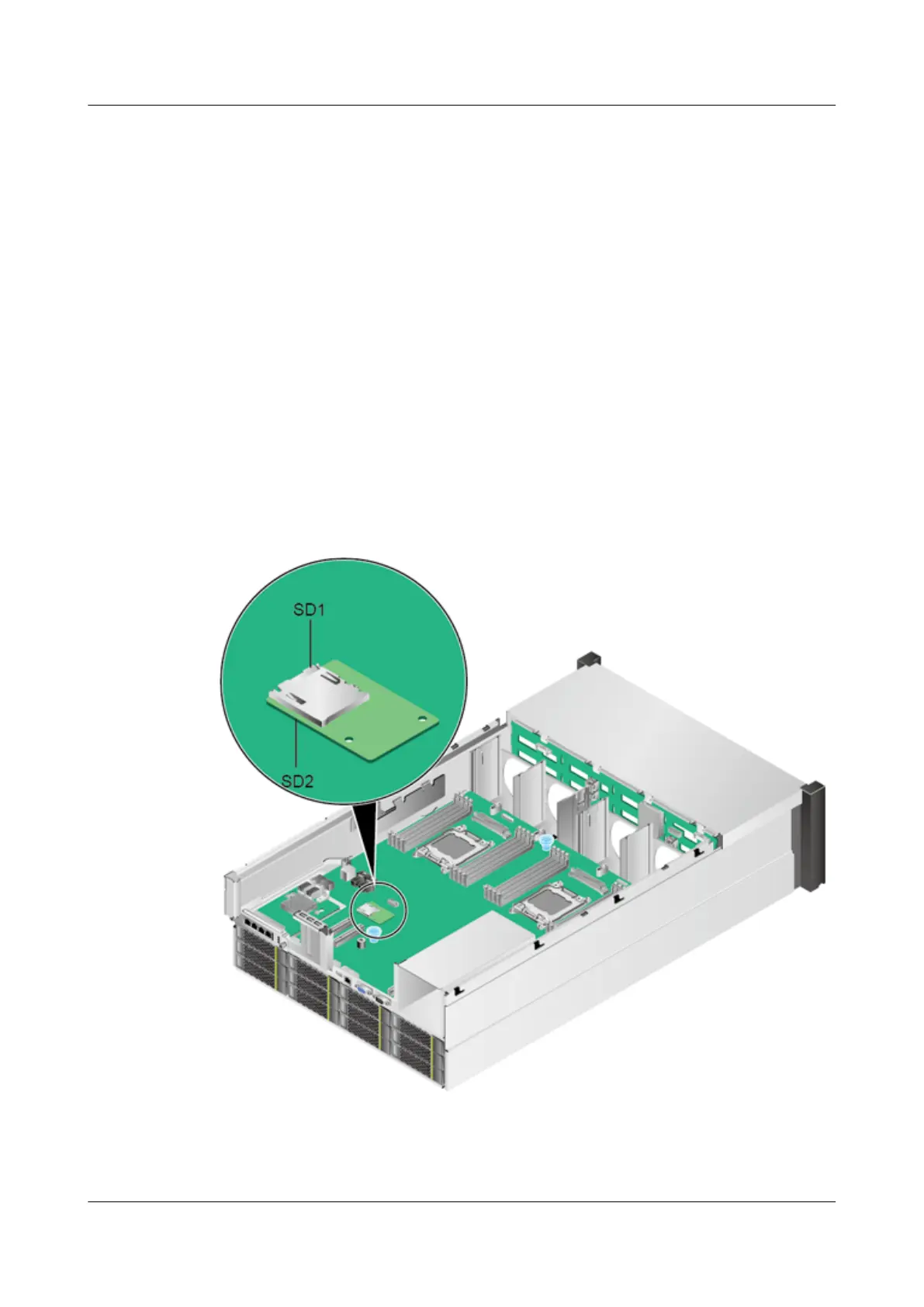

Figure 7-98 SD card position
Step 9 If the SD2 card needs to be removed, remove the mezzanine SD card first; otherwise, go to
Step 10.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 214
