3. Restart the OS.
4. Press Delete repeatedly when the screen shown in Figure1 BIOS startup screen is
displayed during server startup.

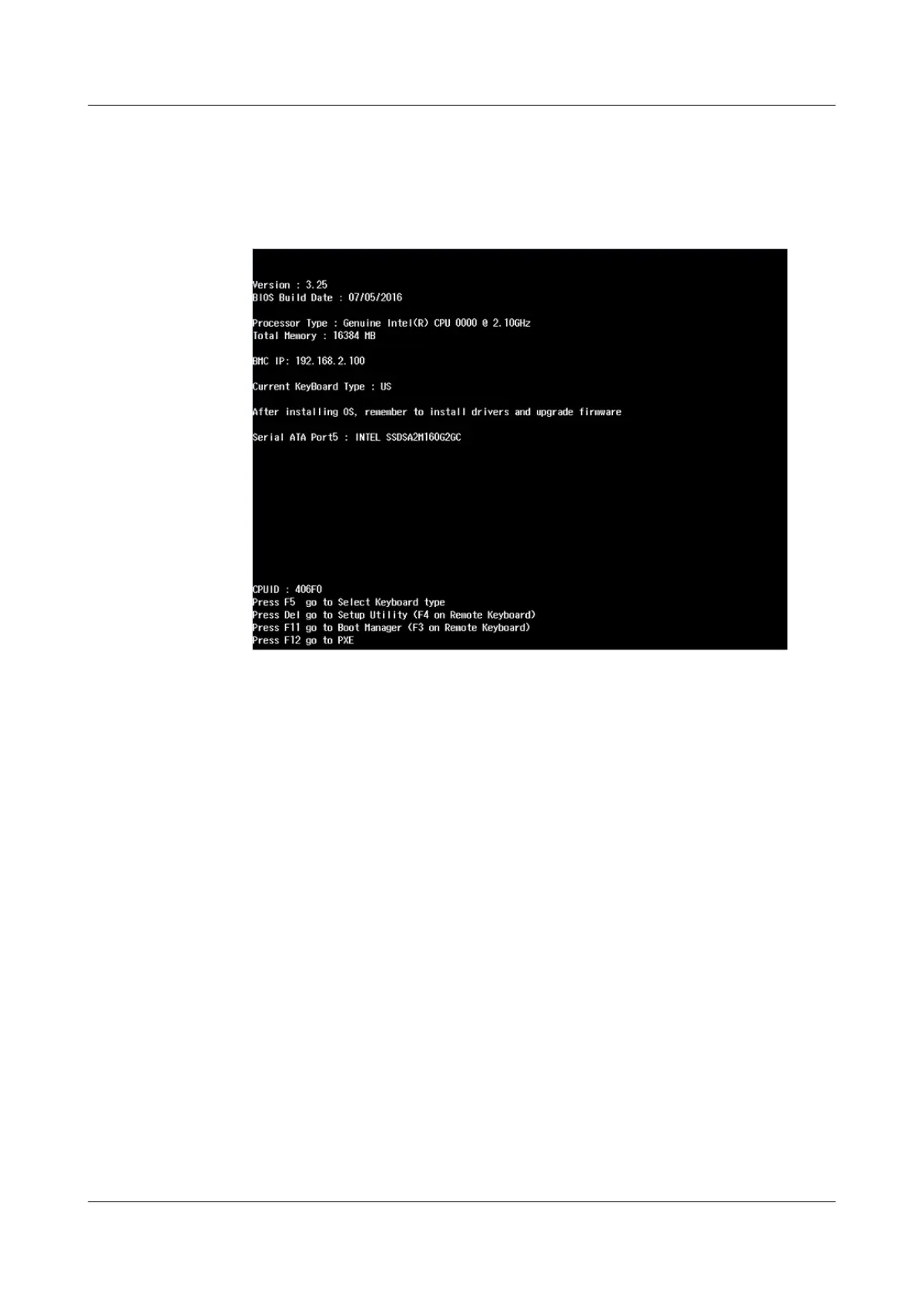

Figure 9-1 BIOS startup screen
5. Enter a BIOS password as prompted.
The BIOS Setup Utility is displayed.
Step 2 Choose Advanced > IPMI iBMC Configuration and press Enter.
The IPMI iBMC Configuration screen is displayed.
Step 3 Select iBMC Configuration and press Enter.
The iBMC Configuration screen is displayed, showing information about the IP address of
the iBMC network port. See Figure 9-2.
5288 V3 Server
User Guide
9 Common Operations
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 245
