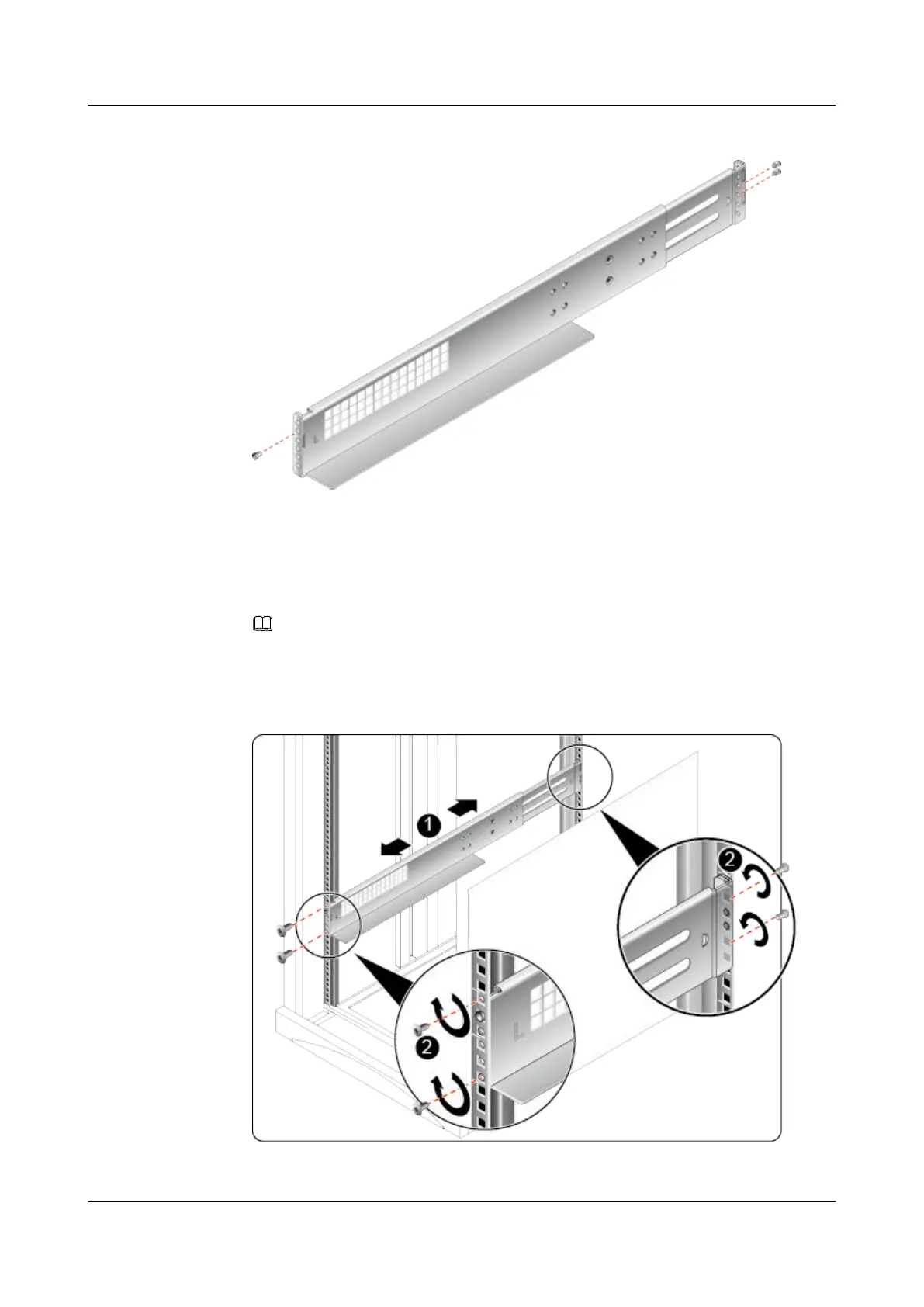

Figure 3-8 Installing a dowel pin
2. Place a guide rail horizontally in the planned position and stretch the guide rail and align
the holes on the guide rail with the holes on the inner guide rail of the rack. Lead the
front and rear dowel pins out of the holes to pre-position the guide rail. See step (1) in
Figure 3-9.
NOTE
Guide rails are divided into left and right guide rails (labeled with L and R). A pair of guide rails
should be installed together and cannot be installed reversely.
Figure 3-9 Installing an adjustable guide rail
5288 V3 Server
User Guide
3 Installing and Removing the 5288 V3
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 60
