2.3. Installing the HA35 on a DSL Broadband
Network
2.3.1. PSTN or Broadband Telephone Line with one voice
channel
In some communities, Internet service providers use telephone lines to provide broadband
access services.
If you have subscribed to digital subscriber line (DSL) broadband, you can connect the
HA35 to a telephone port for Internet access.
Connect your devices in the sequence indicated in the following figure.

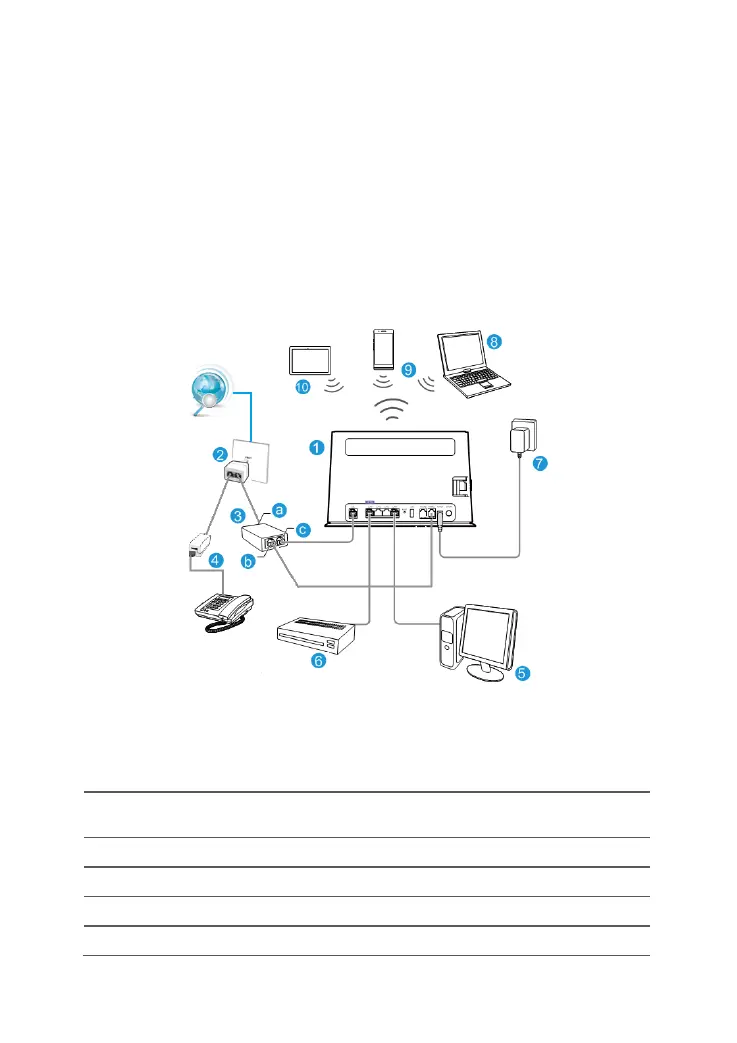

Picture 2-4 connect devices in DSL broadband network
(PSTN Line)
1 HA35 2 Telephone wall jack &
1 to 2 RJ-11 Y adapter
3 Splitter
4 Telephone & Filter 5 Desktop computer 6 Set-top Box
7 Power adapter 8 Laptop computer 9 Smart Phone
10
Pad
a LINE port b PHONE port c MODEM port
To Next Page
