Huawei TaiShan 200 Series User Manual

Port Type Quanti
ty
Description
PSU socket - 1/2 Determine the number of PSUs based
on actual requirements, but ensure
that the rated power of the PSUs is
greater than that of the server. You
are advised to congure two PSUs to
ensure reliable device operating.
When one PSU is used, Predicted PSU
Status cannot be set to Active/
Standby on the iBMC WebUI.
2.4 Rear Panel Indicators

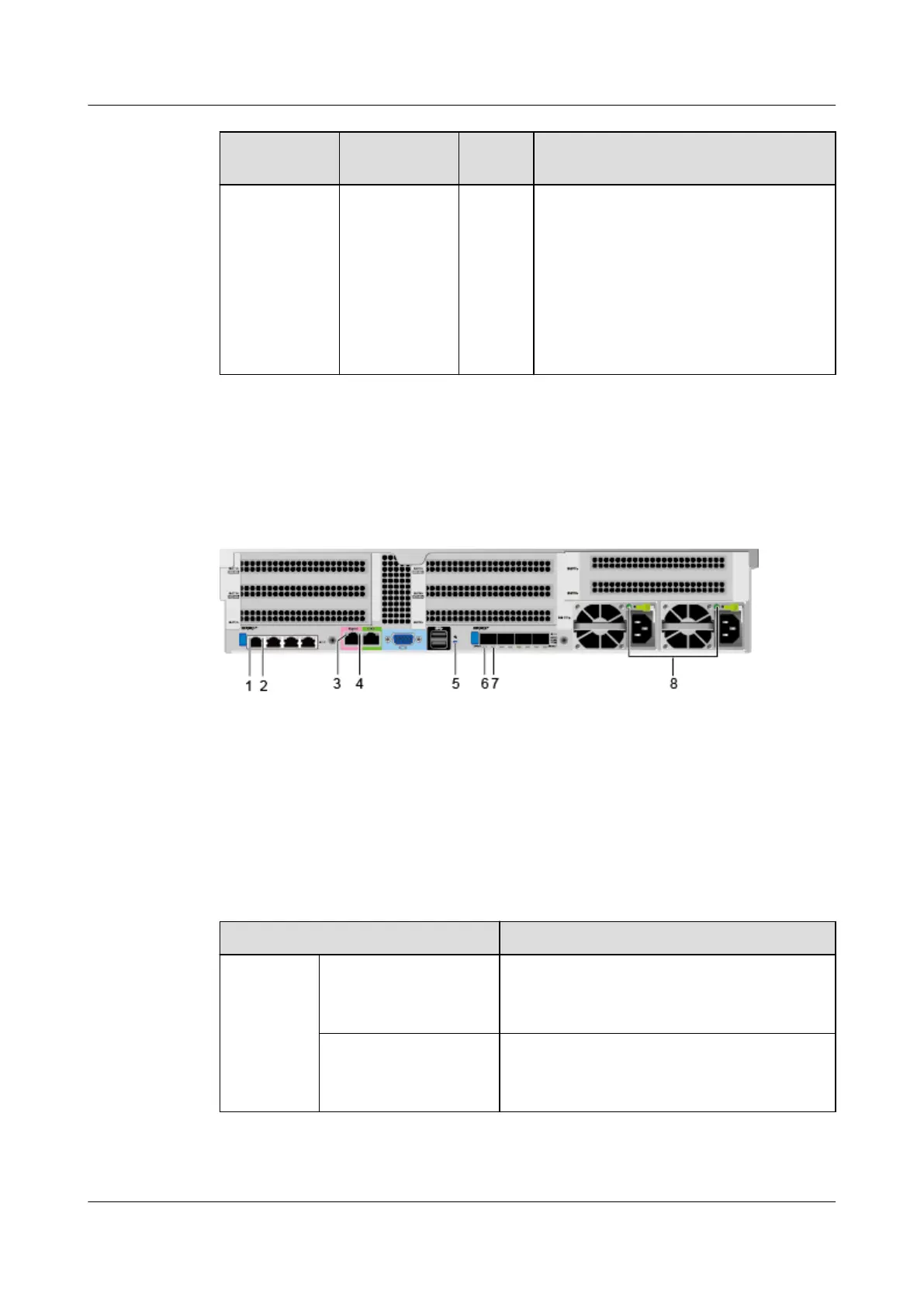

Figure 2-11 shows the indicators on the rear panel of the server.
Figure 2-11 Rear panel indicators
1
GE electrical port data transmission status
indicator
2 GE electrical port connection status
indicator
3 Management network port data transmission
status indicator
4 Management network port connection
status indicator
5 UID indicator 6 Optical port transmission rate indicator
7 Optical port connection status indicator/data
transmission status indicator
8 PSU indicator
Table 2-5 Indicators on the rear panel
Indicator
State Description
GE
electrical
port/
Managem
ent
network
port
Data transmission
status indicator
● Blinking yellow: Data is being
transmitted.
● O: No data is being transmitted.
Connection status
indicator
● Steady green: The network port is
properly connected.
● O: The network port is not connected.
TaiShan 200 Server
User Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 16
