1.1 Physical Structure
The physical structure of the 2280 varies depending on the CPU conguration and
drive conguration. This section uses the server with 12 drives as an example to
describe the physical structure of severs with dierent processors.
When
congured with Kunpeng 920 7260, 5250, or 5230 processors, the server
provides 32 DIMM slots. Figure 1-2 shows the components of the server.

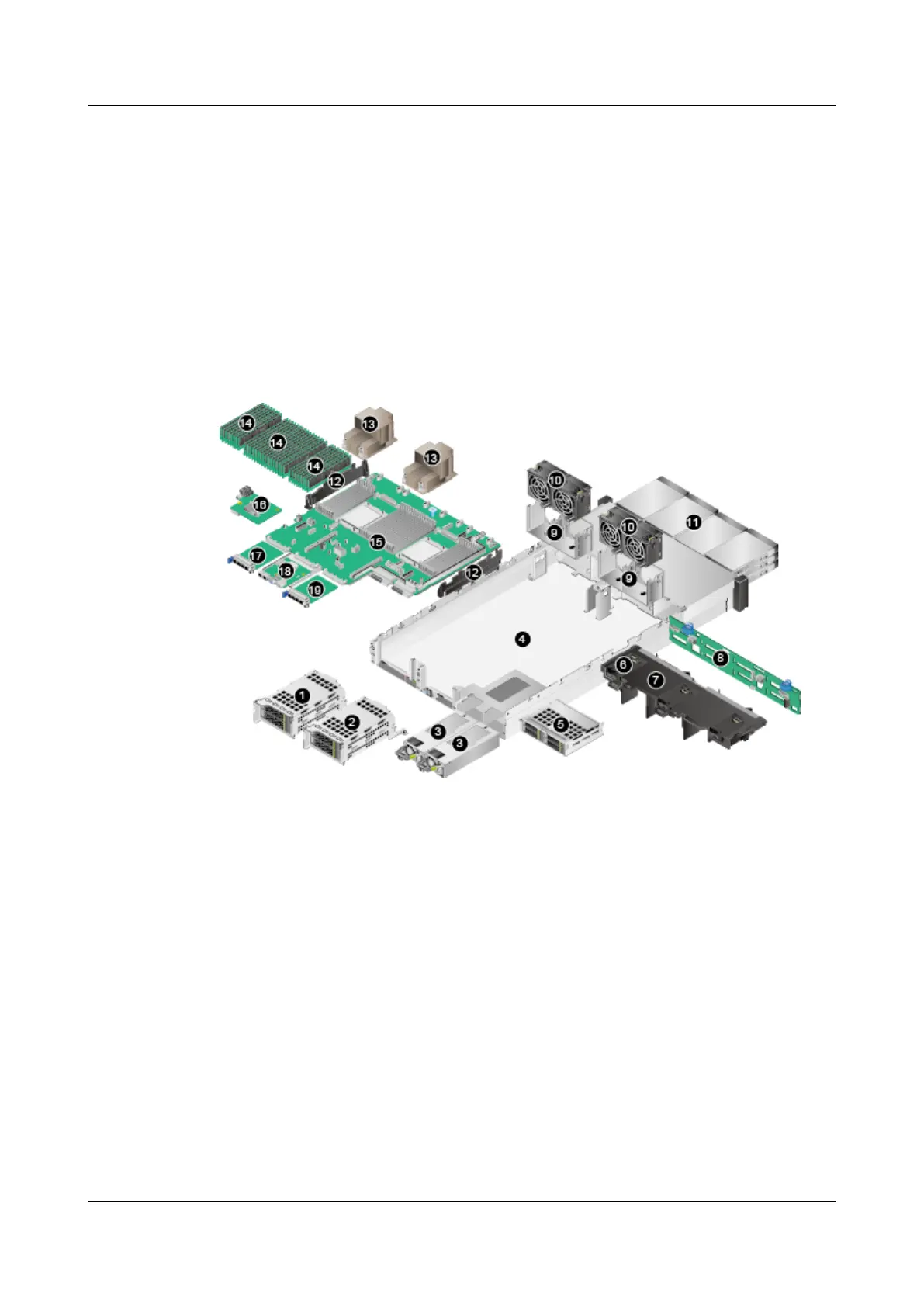

Figure 1-2 Components (server with Kunpeng 920 7260, 5250, or 5230
processors)
1
I/O module 1 2 I/O module 2
3 PSUs 4 Chassis
5 I/O module 3 6 Supercapacitor bracket
7 Air duct 8 Front drive backplane
9 Fan module brackets 10 Fan modules
11 Front drives 12 Cable organizers
13 Heat sinks 14 DIMM
15 Mainboard 16 RAID controller card
17 FlexIO card 1 (CPU 1) 18 iBMC card
19 FlexIO card 2 (CPU 2) - -
When congured with Kunpeng 920 5220 or 3210 processors, the server provides
16 DIMM slots. Figure 1-3 shows the components of the server.
TaiShan 200 Server
User Guide (Model 2280) 1 Overview
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 2
