NIC Type Indicator State Description
Connection status
indicator/Data
transmission status
indicator
● Steady green: The network port
is properly connected.
● Blinking green: Data is being
transmitted.
● O: The network port is not
connected.
2.6 Drive Slot Numbers and Indicators
2.6.1 Drive Slot Numbers
● Figure 2-14 shows the drive slot numbers of a server with 12 x 3.5-inch drives
in Expander mode.

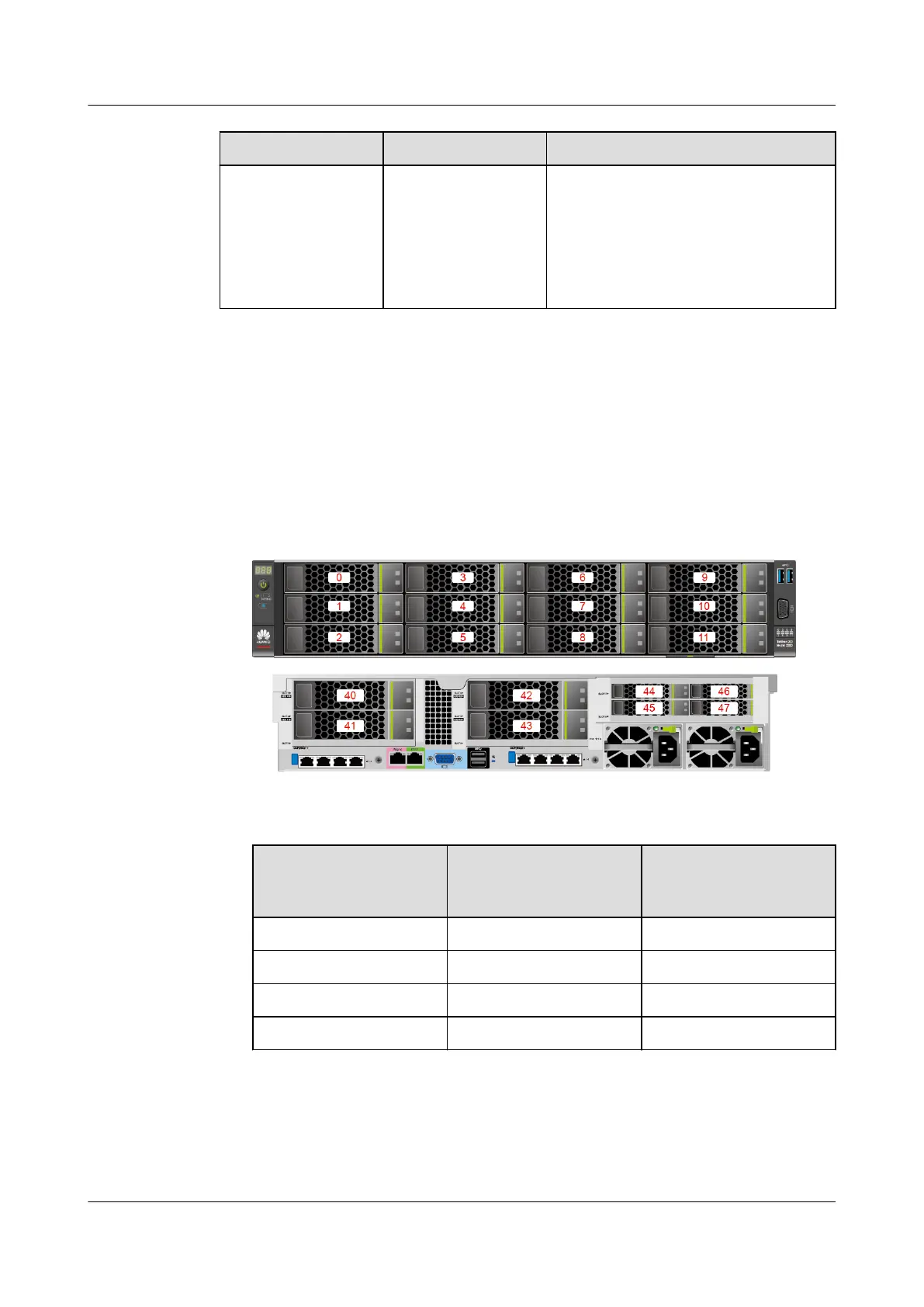

Figure 2-14 Server with 12 x 3.5-inch drives in Expander mode
Table 2-7 Drive slot numbers of a server with 12 x 3.5-inch drives in Expander
mode
Physical Slot Number
Slot Number
Identied by iBMC
Slot Number
Identied by RAID
Controller
40 Disk40 12
41 Disk41 13
42 Disk42 14
43 Disk43 15
● Figure 2-15 shows the drive slot numbers of a server with 12 x 3.5-inch drives
in pass-through mode.
TaiShan 200 Server
User Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 19
