Bind the new network cable in the same way as the existing network cables. You
can also remove all cable ties and bind all of the optical cables again if necessary.
----End
5.8.5 Connecting a USB Device
Step 1 Wear an ESD wrist strap. For details, see 5.3 ESD Protection.
Step 2 Connect a USB device to a USB port on the server. See Figure 5-21.

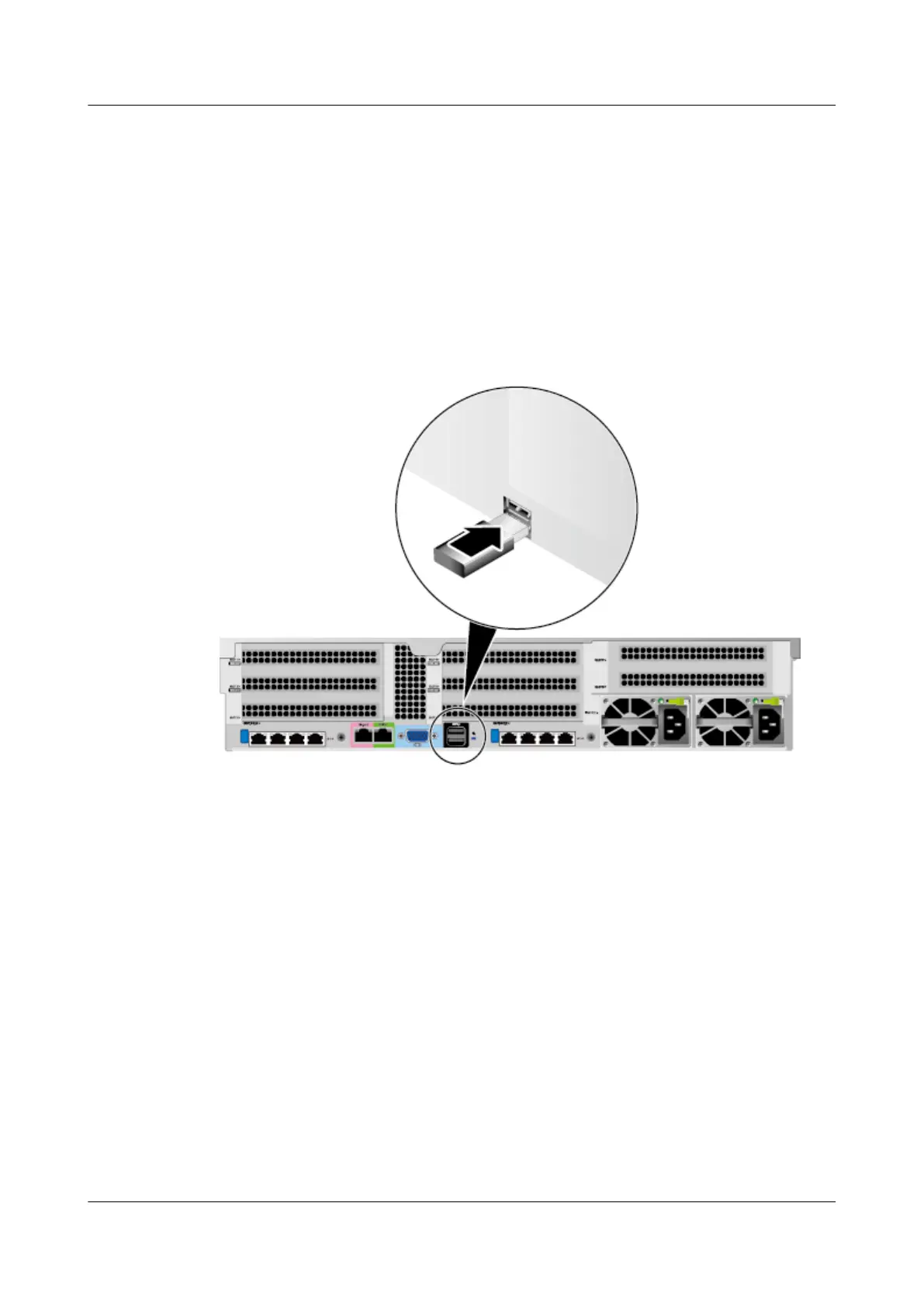

Figure 5-21 Connecting a USB device
----End
5.8.6 Connecting a Serial Cable
The rear panel of the server provides a standard RJ45 serial port (three-pin serial
port), which works as the system serial port by default. You can set it as the iBMC
serial port using the iBMC CLI.
The serial port can be used as:
● System serial port to monitor the OS status
● iBMC serial port for debugging and fault locating
Procedure
Step 1 Wear an ESD wrist strap. For details, see 5.3 ESD Protection.
Step 2 Plug the connector into the serial port. See Figure 5-22.
TaiShan 200 Server
User Guide (Model 2280) 5 Install and Congure
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 62
To Next Page
