Hypertherm HyPerformance HPR400XD Auto Gas User Manual

Maintenance
HPR400XD Auto Gas – 806160 5-53

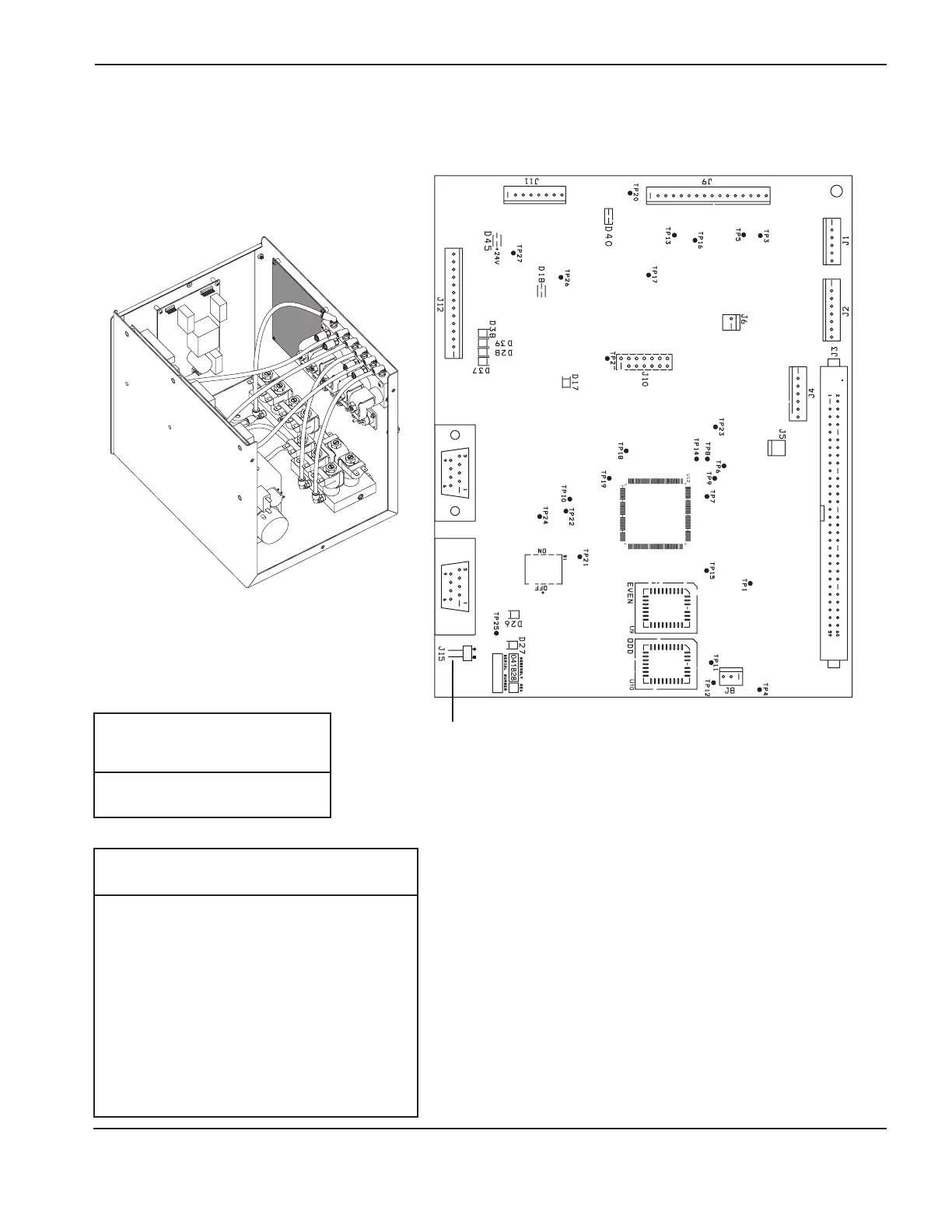

Selection console control board PCB2
Note: CAN termination resistor. The jumper
must be removed.
Control PCB2 firmware list
Item Part number
U9 081110 EVEN
U10 081110 ODD
Gas console control board LED list
LED Signal name Color
D17 + 3.3 VDC Green
D18 + 5 VDC Green
D26 CAN – RX Green
D27 CAN – TX Green
D28 Not used Red
D37 Not used Red
D38 Not used Red
D39 Not used Red
D40 + 15 VDC Green
D45 + 24 VDC Green
