Hypertherm HyPerformance HPR400XD Auto Gas User Manual

InstallatIon
3-14 HPR400XD Auto Gas – 806160
Ignition console grounding

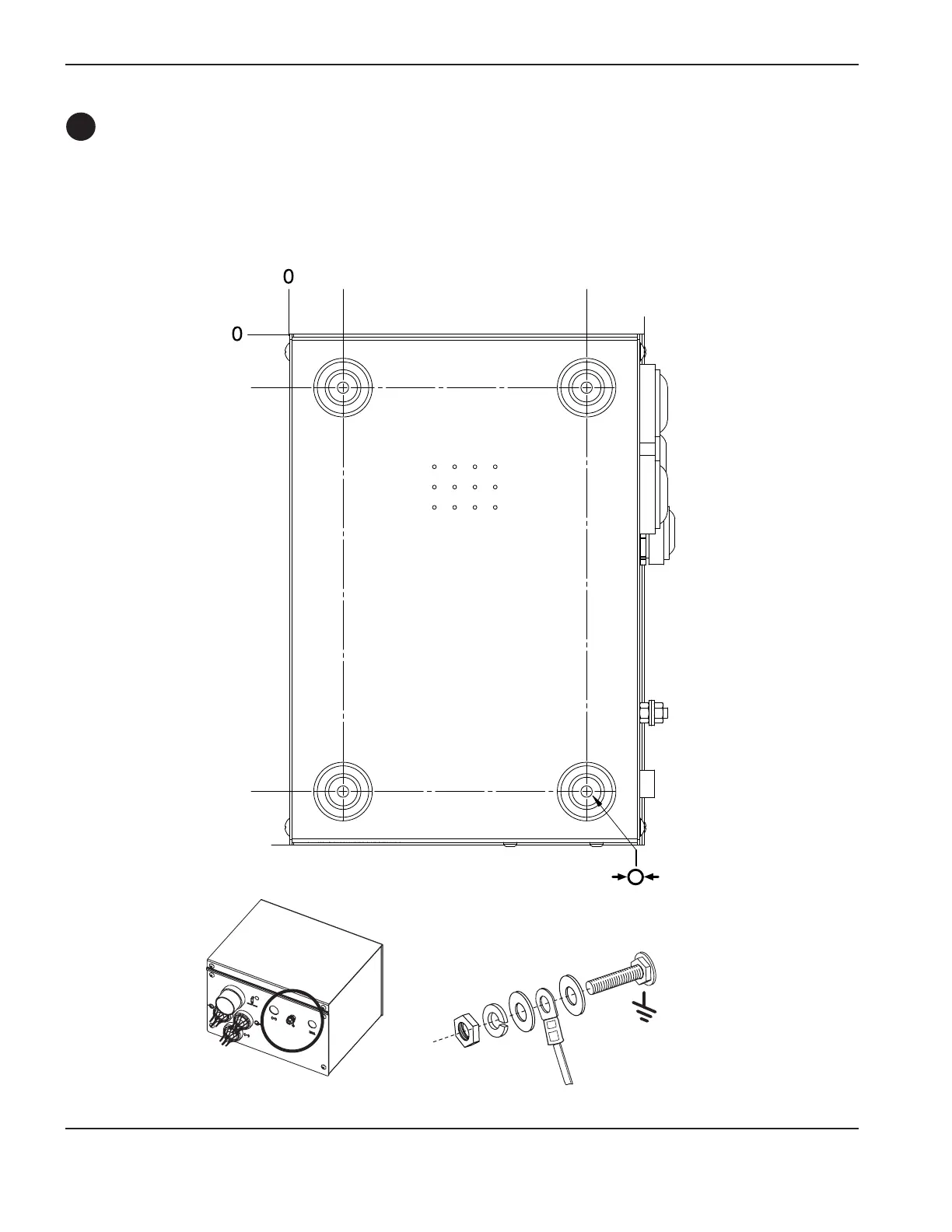

Install the ignition console
• Mount the ignition console in a vertical or horizontal position.
• Allow room to remove the top for servicing
B
7 mm
0.28 in
(4 places)
32 mm
1.25 in
32 mm
1.25 in
184 mm
7.25 in
317.5 mm
12.5 in
248 mm
9.75 in
222.25 mm
8.75 in
