InstallatIon
3-28 HPR400XD Auto Gas – 806160

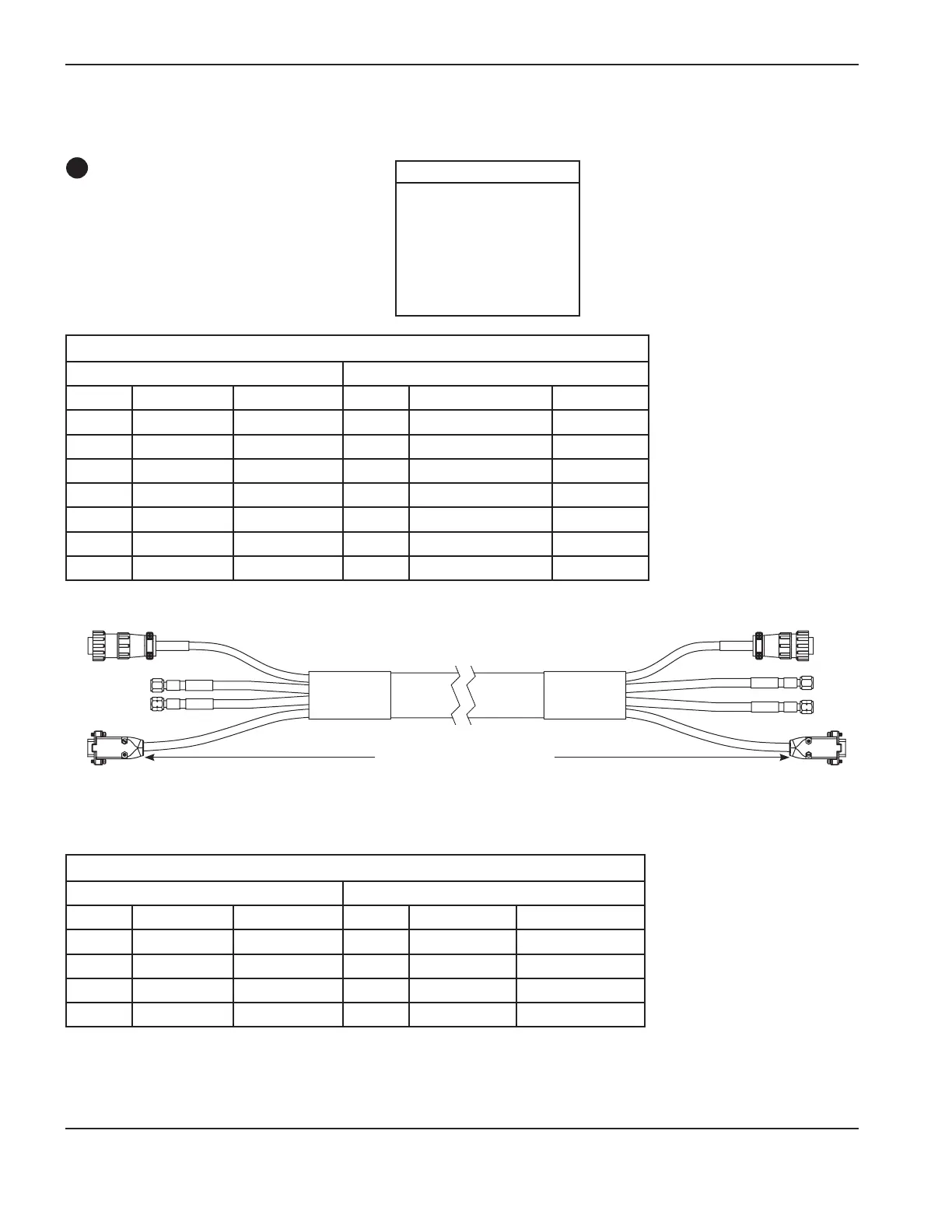

Cable and gas hose assembly
Selection console to metering console connections
Female end to metering console Male end to selection console
Typical female DSUB connector
Part no. Length
128992 3 m (10 ft)
128993 4.5 m (15 ft)
228338 6 m (20 ft)
128952 7.5 m (25 ft)
128994 10 m (35 ft)
128930 15 m (50 ft)
128995 20 m (65 ft)
Power cable signal list – 9-pin connectors
Metering console end Selection console end
Pin No. Input/Output Description Pin No. Input/Output Function
1 Input 120 VAC power 1 Output AC in, return
2 Input 120 VAC power 2 Output AC in, hot
3 Input Chassis ground 3 Output Chassis ground
4 Not used 4 Not used
5 Not used 5 Not used
6 Not used 6 Not used
7 Not used 7 Not used
Communication cable signal list – 9-pin DSUB connectors
Metering console end Selection console end
Pin No. Input/Output Description Pin No. Input/Output Function
2 Input/Output CAN L 2 Input/Output CAN communication
3 Input CAN ground 3 Output Power ground
7 Input/Output CAN H 7 Input/Output CAN communication
9 Input Not used 9 Output Not used
