InstallatIon
3-24 HPR400XD Auto Gas – 806160

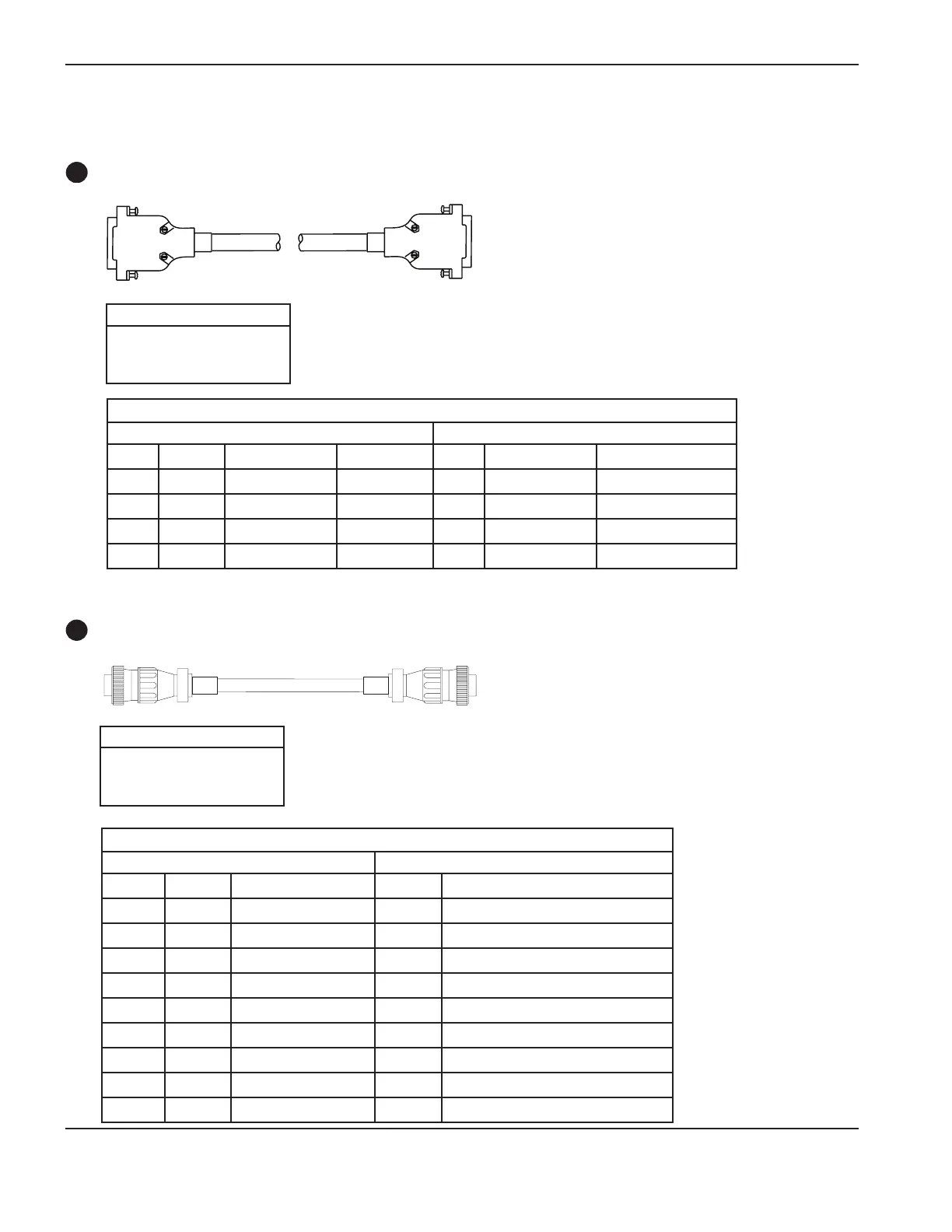

Power supply to cooler cables
Female end to cooler
Female end to cooler
Part no. Length
123844 1.5 m (5 ft)
123784 3 m (10 ft)
123839 4.5 m (15 ft)
Cable signal list – power supply to cooler (9-pin DSUB connectors)
Power supply end Cooler end
Pin No. Wire color Input/Output Description Pin No. Input/Output Function
2 Black Input/Output CAN L 2 Input/Output CAN communication
3 Black Input CAN ground 3 Output Power ground
7 Red Input/Output CAN H 7 Input/Output CAN communication
9 Red Input Not used 9 Output Not used
Cable signal list – power supply to cooler
Power supply end Cooler end
Pin No. Wire color Description Pin No. Function
8 Black 120 VAC-Hot 8 Coolant solenoid (V1)
13 White 120 VAC-Return 13 Coolant solenoid (V1)
4 Shield 4 Ground
12 Black 240 VAC-Hot 12 Cooler fan
16 Yellow 240 VAC-Return 16 Cooler fan
7 Shield 7 Ground
11 Black 240 VAC-Hot 11 Pump motor
15 Blue 240 VAC-Return 15 Pump motor
6 Shield 6 Ground
Part no. Length
123979 1.5 m (5 ft)
123980 3 m (10 ft)
123981 4.5 m (15 ft)
Control cable
Power cable
