InstallatIon
HPR400XD Auto Gas – 806160 3-35

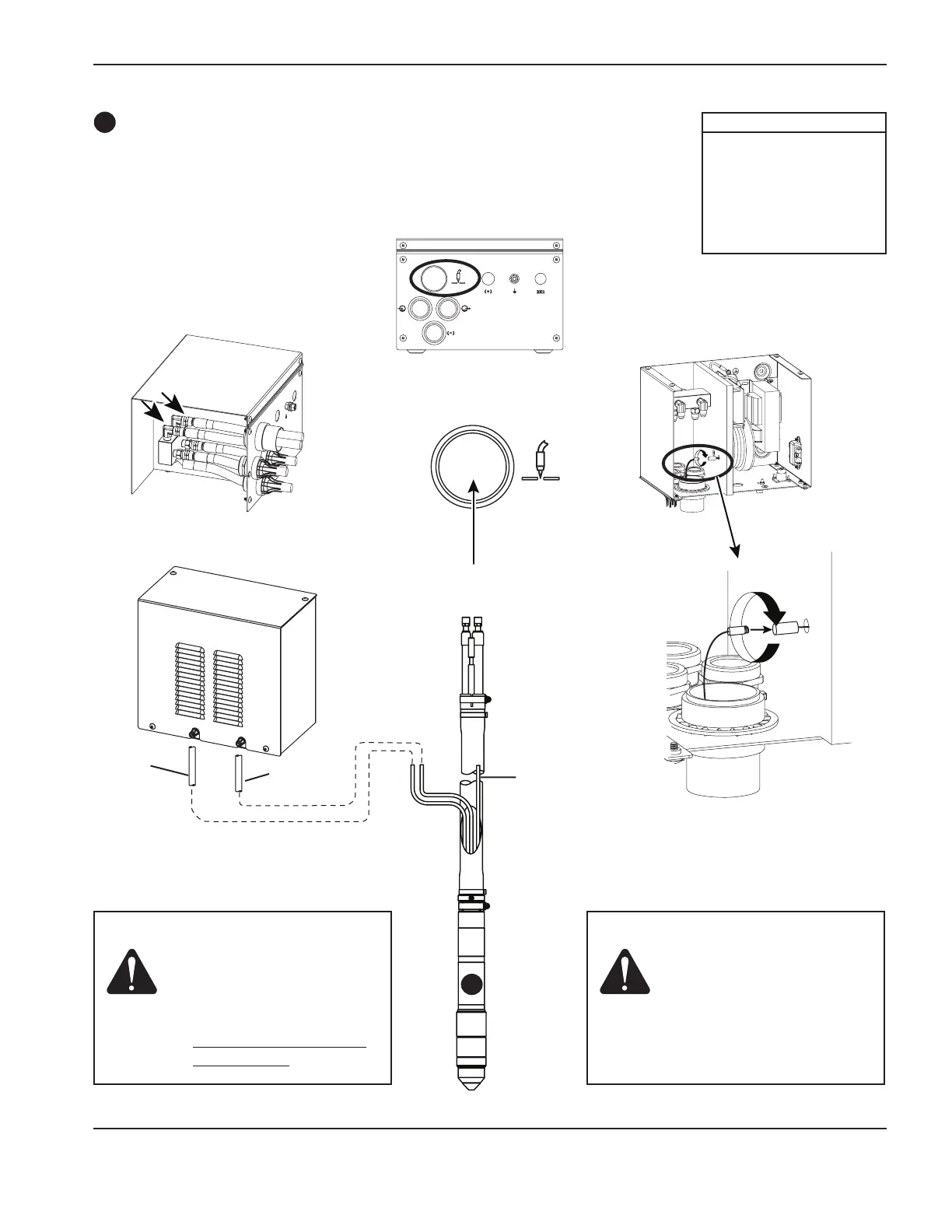

Torch lead assembly
10
Plasma-gas vent hose
(white)
Blue
Black
Part no. Length
228291 2 m (6 ft)
228292 3 m (10 ft)
228293 4.5 m (15 ft)
228294 6 m (20 ft)
228295 7.5 m (25 ft)
228296 10 m (35 ft)
228297 15 m (50 ft)
Caution:
The length of the hoses
from the torch to the
metering console are
critical to cut quality
and consumable life.
Do not alter the length
of the hoses.
Caution: Locate the exposed end
of the plasma-gas vent
hose away from sparks
caused by piercing
to avoid ignition and
possible damage to the
torch leads.
12
Note: A 20 m (65 ft) torch
lead is not available for
HPR400XD systems
