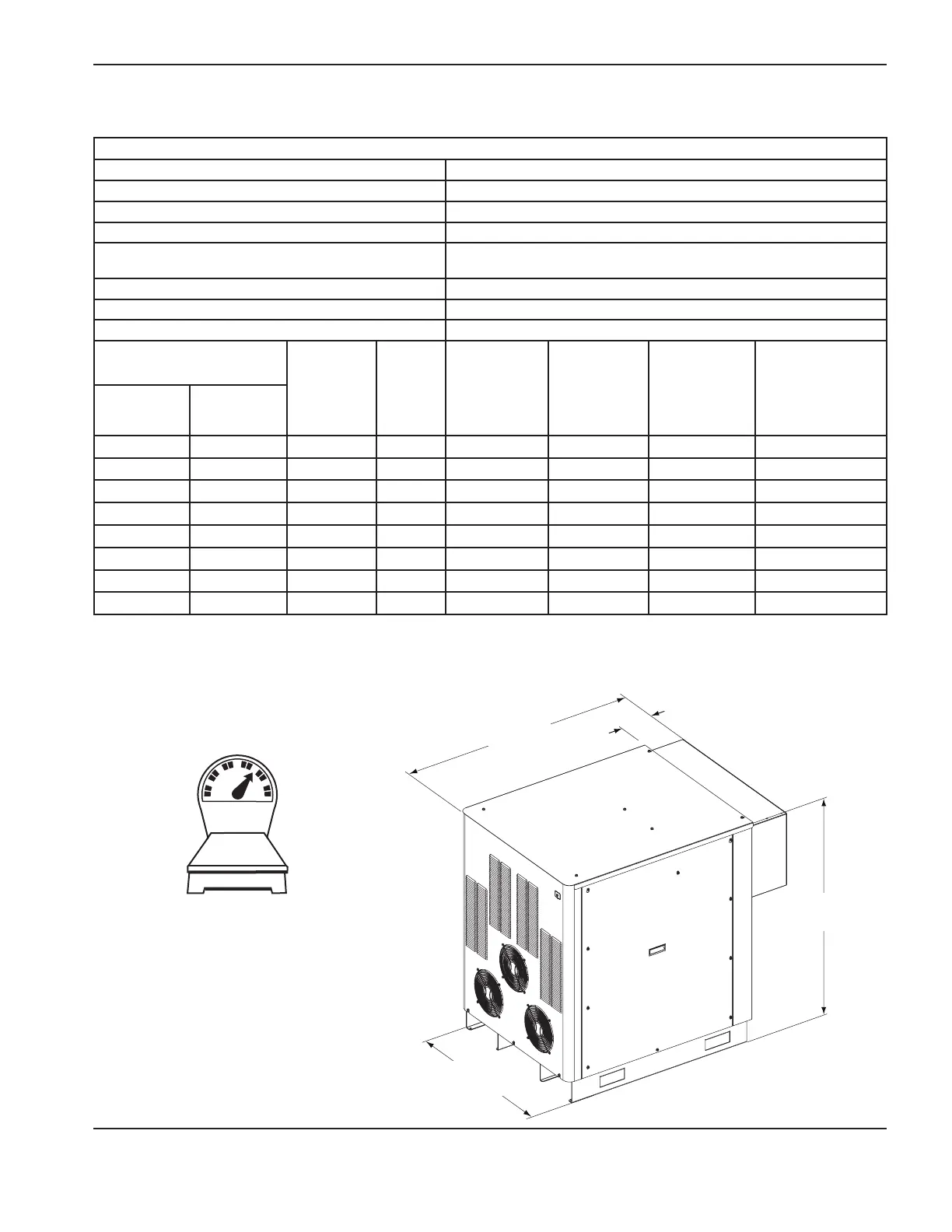

SpecificationS
HPR400XD Auto Gas – 806160 2-5
Power supply
229 mm
9.00”
1270 mm
50.00”
1175 mm
46.25”
870 mm
34.25”
851 kg
1877 lb
Approximate weight
of the heaviest unit
* The 380 volt CCC regulatory approval only applies to 50 Hz operation
General
Maximum OCV (U
0
) 360 VDC
Maximum output current (I
2
) 400 Amps
Output voltage (U
2
) 50 – 200 VDC
Duty cycle rating (X) 100% @ 80 kw, 40° C (104° F)
Ambient temperature/Duty cycle
Power supplies will operate between -10° C and +40° C
(+14°and 104° F)
Power factor (cosϕ) 0.98 @ 400 ADC output
Cooling Forced air (Class F)
Insulation Class H
Power supply
part numbers
AC Voltage
(U
1
)
Phase
Frequency
(Hz)
Amperage
(I
1
)
Regulatory
approval
Power kVA
(+/- 10%)
(U
1
x I
1
x 1.73)
Without
Hypernet
With
Hypernet
078523 078570 200/208 3 50/60 262/252 CSA 90.6
078524 078571 220 3 50/60 238 CSA 90.6
078525 078572 240 3 60 219 CSA 90.6
078526 078573 380* 3 50/60 138 CCC 90.6
078527 078574 400 3 50/60 131 CE/GOST-R 90.6
078528 078575 440 3 50/60 120 CSA 90.6
078529 078576 480 3 60 110 CSA 90.6
078530 078577 600 3 60 88 CSA 90.6
